FV-TM65100ANT-U
| Quantity: | |
|---|---|
| PDF Export | |
12μm high sensitivity VOx Uncooled Infrared Focal Plane Detector
640*512 @50fps
NETD Sensitivity: 40mK @F1.0, 25℃
Support full screen temperature measurement and expert temperature measurement
Support UVC protocol
Supports 2 temperature measurement ranges: -20℃~150℃ and 100℃~550℃
Temperature measurement accuracy: ± 2 ℃ or ± 2% reading (whichever is greater)
Model | FV-TM65100ANT-U |
Detector | |
Detector Type | Vanadium Oxide Uncooled Infrared Focal Plane Detector |
Effective Pixels | 640*512 |
Pixel Pitch | 12μm |
Spectral Range | 8-14μm |
Effective Frame Rate | 50fps |
Sensitivity (NETD) | 40mK (25°C, F# = 1.0) |
Lens | |

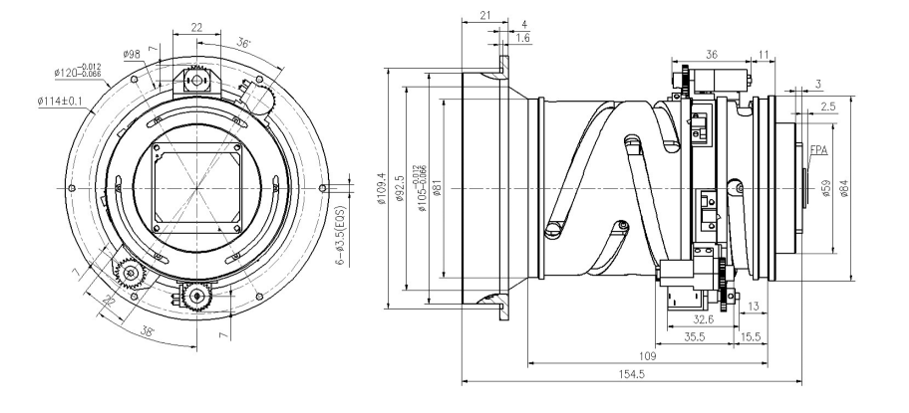

Lens | 20-100mm 5x Optical Zoom Lens |
F Value | 0.85~1.2 |
Focusing Type | Auto Focus |
FOV | 21.7°X 17.5°~4.4° X 3.5° |
Spatial Resolution | 20mm：0.8mard / 100mm：0.11mard |
Focusing Range | 20mm：1M—∞ / 100mm：10M—∞ |
SEALING | IP67(front of lens) |
Image | |
Pseudo Color | White heat, black heat, fusion, Iron red, fusion |
Temperature Measurement | |
Temperature Measurement Ranges | -20℃~150℃ and 100℃~550℃ |
Temperature measurement accuracy | ± 2 ℃ or ± 2% reading (whichever is greater) |
Interface | |
Output | UVC |
Environment | |
Operating Temperature | -40°C~+80°C |
Storage Temperature | -45°C~+85°C |
Humidity | 95% |
Power Supply | DC12V±10% |
Power Consumption | 5W |
Weight | 1355g |
Size | 211.3*Φ109.4mm |
Note: Details are subject to change without prior notice. Please refer to latest product datasheet.
