IPTZ-T306-7222T-T640
| Quantity: | |
|---|---|
| PDF Export | |
Double pitch worm gear transmission structure, electronic anti-shake and mechanical anti-loose design
Supports power-off self-locking, strong wind resistance and high stability
Support multiple lens preset functions, zoom adaptive, and the rotation speed can be automatically adjusted according to the zoom of the lens
Support smart features: area intrusion, line crossing, area leave, motion detection, video block
Support AWB, DWDR, HLC, BLC, EIS, and 3D DNR, etc.
Thermal: 640*512, focal length 50mm, Vanadium Oxide Uncooled Infrared Focal Plane Detector
It can be widely used in places requiring large-scale HD image quality monitoring, such as shopping center, park, road, railway, airport, port, sentry post, squares, stations, large venues, community, etc.
Model | IPTZ-T306-7222T-T640 | |
Optical Module | Sensor | 1/2.8" CMOS sensor |
Resolution | 2MP, 1920*1080 | |
Low illumination | color: 0.001Lux@(F1.6,AGC ON) | |
B/W: 0.0005Lux@(F1.6,AGC ON) | ||
Focal length | 22X, 6.5-143mm optical zoom, 16X digital zoom | |
S/N ratio | >55dB | |
Shutter | 1/25~1/100,000 s | |
FOV | 60.5°-2.1° (wide-tele) | |
Defog | Support | |
EIS | Support | |
Image enhancement | BLC, HLC, 3D DNR, DWDR | |
Smart function | Video Detection, Motion Detection, Perimeter Detection, Line Detection, Items Left and Lost, Audio Detection | |
Max. remote users | 20 users | |
Thermal Module | Detector | Vanadium Oxide Uncooled Infrared Focal Plane Detector |
Resolution | 640*512 | |
Pixel Interval | 12μm | |
Response Waveband | 8 - 14μm | |
NETD | 40mK (25°C, F# = 1.0) | |
Focal Length | 50mm | |
Focusing Type | Manual focus | |
Pseudo Color | White heat, black heat, fusion, iron red, fusion, etc. | |
FOV | 11.25° (D) x 8.78° (H) x 7.02° (V) | |
Min. Focusing Distance | 8m | |
Effective Frame Rate | 50fps | |
Network | Video compression | H.265 / H.264,H.265+/H.264+ |
Audio compression | 16Kbps(G.711)/ ( G.711U )/ (G.726)/(AAC) | |
Protocol | TCP/IP,MTU,HTTP,HTTPS,FTP,DHCP,DDNS,UPNP,RTSP,RTMP,NTP,SMTP,PPPOE | |
Storage | Micro SD/SDHC /SDXC(256G) offline local storage, NAS, NFS, SMB/CIFS | |
PTZ | Rotation range | Horizon: 360° rotation, vertical: +90°~-90° |
Rotation speed | Horizon: 0.01~40°/s, vertical: 0.01~20°/s | |
Preset accuracy | ±0.1° | |
Preset points | 200 | |
Temp. control | Built-in heater, cooler components, auto power on/off | |
Others | Support cruise scanning, linear scanning, angle return, real-time return | |
General Spec. | Power supply | DC24V |
Consumption | <20W | |
Working temp. | -35ºC~+65ºC | |
Working humidity | <90%RH | |
Protection | IP66 | |

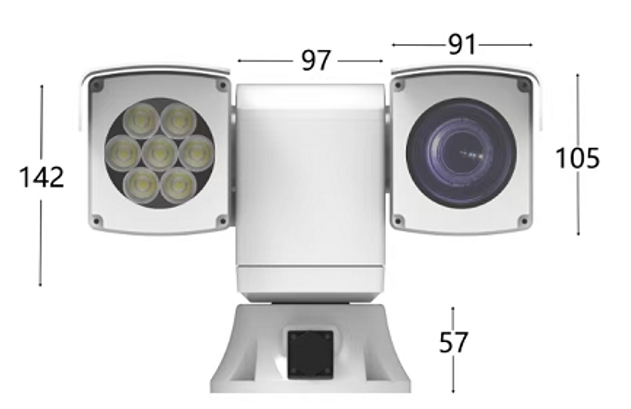

Dimensions | 279mm×199mm×220mm | |
Weight | 8kg | |
Note: Details are subject to change without prior notice. Please refer to latest product datasheet.
