1.Connect the camera module through the LVDS interface, automatically identify the high-definition video format of the camera, and output SDI video signals 1920*1080 25/30fps, 50/60 fps
2.Support 232 serial communication

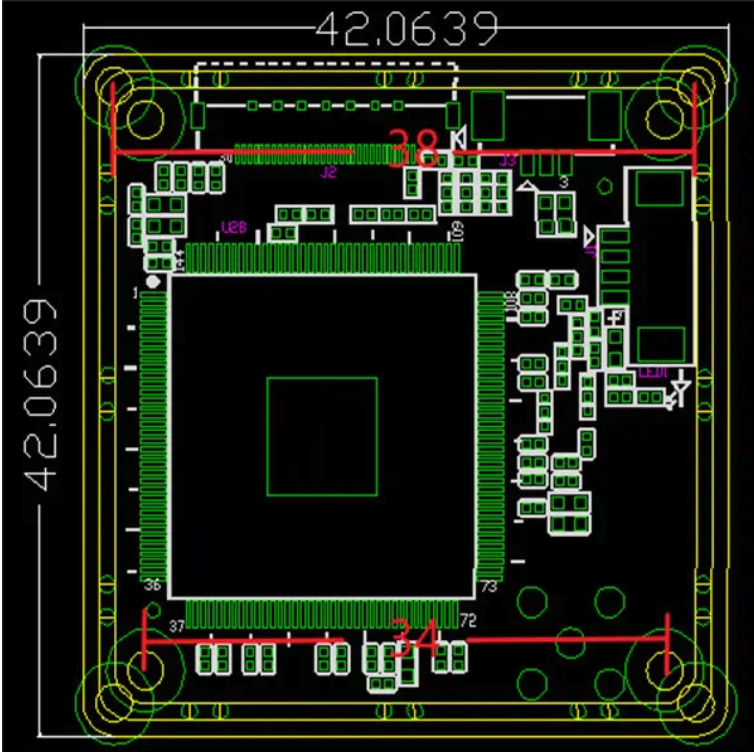

3.Size: 42mm*42mm*1.6mm
Universally used in various security camera application scenarios that require SDI signals.
| Video | 1920*1080 SDI | |
| Interface | ||
| RS232 | Support | |
| SDI | Support | |
| VISCA | Support | |
| J5: 10pin LVDS | Support coaxial transmission | |
| Alarm In/Out | N/A | |
| Audio In/Out | N/A | |
| General | ||
| Environment | -30℃~60℃, humidity less than 95% (no condensation) | |
| Power Supply | DC12V±10% | |
| Power Consumption | 2W | |
| Size | 42mm*42mm*1.6mm | |
| Weight | 15g | |
