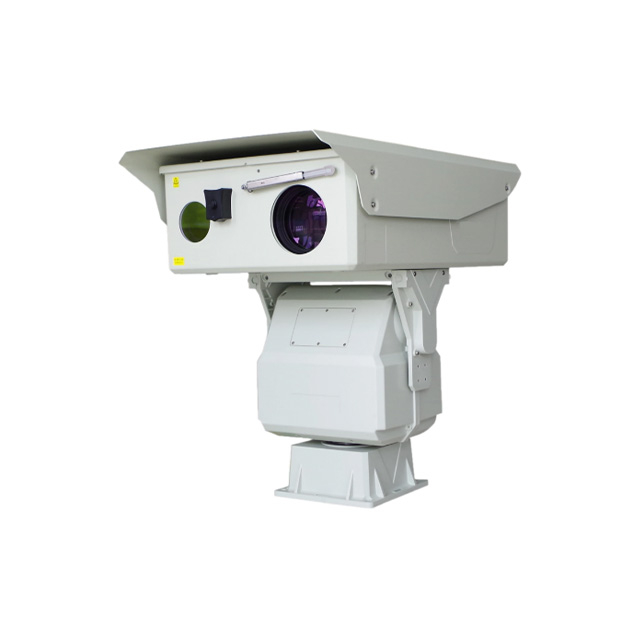

PT890 series long-range HD infrared laser PTZ camera, which is designed for 24 hours monitoring. With super homogenizing NIR laser and low illumination megapixel telephoto lens. The max detection distance for human/car/object is 6 km in the day and 3 km~4km in the night.
Built-in technical grade embedded control electronic system, the camera operation like zooming, focusing, video switch, rotation is stable and accurate. One integral aluminum alloy housing and weatherproof IP66 make sure it works well outdoor.
DSS digital stepper illumination angle control, unique laser zooming and distance matching technology, min 0.1° follow-up zooming.
Super homogenizing and power consumption control of NIR laser ensure a better effect.
Independent laser photocell.
360° continuously rotation PT, rotation stably.
One integral aluminum alloy housing, IP66 ingress protection, waterproof, anti-dust.
| Model | IPTZ-T890-Z296L80W |
| Detection | Day: 8 km |
| Night: 4 km | |
| Consumption | 15W, 810nm, NIR |
| Laser angle | 0.5°～20° |
| Angle and distance matching | DSS digital stepper illumination angle control, unique laser angle and distance matching technology, min 0.1°follow-up zooming |
| GHT-II super homogenizing HD illumination technology | |
| 0.01°SLM optical axis aiming and locking | |
| Camera | 1/1.8”, 0.0005lux high sensitive color to B/W CCD , 4MP |
| Automatic ICR switch，H.265 video format | |
| Lens | 6-576mm HD lens, infrared correction, 4 mega pixels, motorized zoom |
| Penetrate fog | Optional, optical filtering and AFR optoelectronic enhanced image processing technology, color penetrate fog |
| Housing | One integral aluminum alloy housing，sealed and waterproof，IP66 |
| Load duty | 43kg |
| PT | Pan: 360°continuously |
| Tilt: +45°～-45° | |
| Rotation speed | Pan: 0.01～15°/S |
| Tilt: 0.01～7°/S | |
| Preset | 80, with patrol and scan function |
| Interface | 1*RJ45, 1*AC24V |
| Power supply | AC24V±10%, 50Hz, 180W, standard configuration AC220V->AC24V adapter |
| Weatherproof | IP66 |
| Anti-lighting | Power voltage 4000V，communication signal 2000V |
| Protocol | Pelco-P、Pelco-D and so on standard protocol, baud rate 2400、4800、9600、19200 |
| Operational temp. | -35℃～+65℃ (-40℃ optional) |
| Weight | 45kg |
