IPC-FB707-204(4/6/8mm)
| Quantity: | |
|---|---|
| PDF Export | |
Equipped with a 1/2.8-inch Progressive Scan CMOS sensor, the camera delivers 3MP video at 2304×1296 resolution. It offers 4mm, 6mm, and 8mm fixed lens options, allowing users to select an appropriate viewing configuration for different monitoring areas without requiring optical zoom.

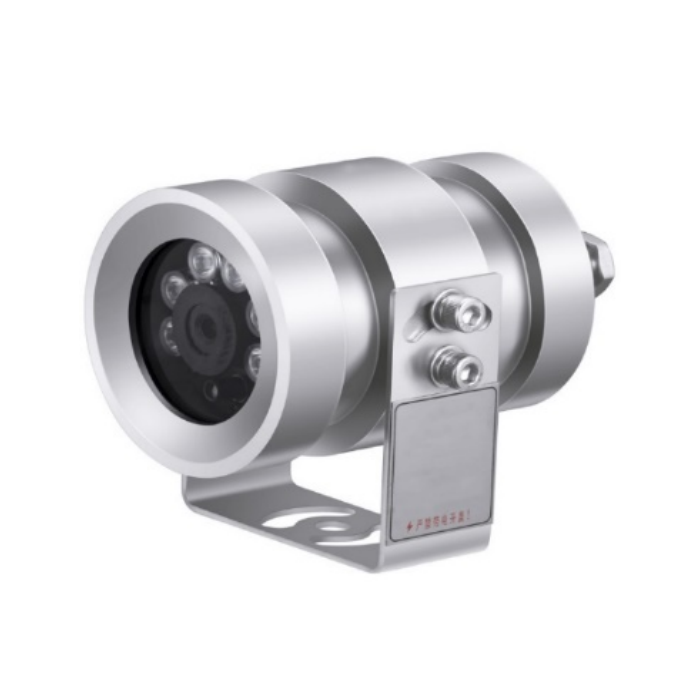

The mini bullet camera features a stainless steel housing with a specified weight of ≤2.5kg. Its published explosion-protection markings include Ex d IIC T6 Gb and Ex tD A21 IP68 T80℃. The IP68 enclosure and 304/316L stainless steel material options support equipment selection for hazardous industrial environments, subject to verified certification and installation requirements.
The camera features high-efficiency array infrared illumination with a specified distance of 40m. Combined with 0.01 Lux color sensitivity, day/night imaging, and 3D noise reduction, it provides image adjustment options for fixed-area surveillance under varying lighting conditions.
Supporting H.265/H.264 encoding, ONVIF, RTSP, and intelligent detection functions, the camera can be integrated into compatible CCTV systems. It also provides 4kV network-port and 2kV power-port surge protection, with optional PoE support for different installation requirements.
Explosion-proof cert: Ex d IIC T6 Gb / Ex tD A21 IP68 T80℃
Explosion-proof cert: Ex d IIC T6 Gb / Ex tD A21 IP68 T80℃
H. 265, 3MP 1/2.8 " CMOS
Fixed lens: 4/6/8mm options
Starlight low illumination: color 0.01 Lux, 0 Lux with IR turn on
High-efficiency array IR lamp, low power consumption, IR 40 meters
Smart detection: human body detection, motion detection, etc.
Supports BLC, HLC, 3D DNR, 120 dB WDR
Supports low code rate, low latency, ROI, and automatically adjust code rate according to the scene situation
Supports ONVIF, easy to connect to main brand NVR and CMS
Wide voltage circuit protection, DC 9V-DC 15V
Network port 4KV lightning protection, power port 2KV lightning protection, to avoid surge, induction thunder, static electricity and other possible damage
Use special explosion-proof glass with nanotechnology, high optical pass rate, non-adhesive water, non-sticky oil and non-dust
304/316L stainless steel, suitable for chemical industry, acid and alkali and other strong corrosive environments H. 265, 3MP 1/2.8 " CMOS
| Model | IPC-FB700-204-（4/6/8mm）SS | ||
| Lens | Resolution | 3MP | |
| Sensor | 1/2.8" Progressive Scan CMOS | ||
| Lens | 4mm (6/8mm options) | ||
| Illuminance | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR turn on | ||
| IR Distance | 40 meters | ||
| WDR | Support optical WDR | ||
| Shutter | Auto/manual | ||
| ROI | 4 regions | ||
| Region enhancement | 8 regions | ||
| Image | Main Stream | 2304*1296，1920*1080，1280*720，720*576（D1），640*360 | |
| Second Stream | 1280*720，720*576（D1），640*360 | ||
| Third Stream | 720*576（D1），640*360，704*288（2CIF），352*288（CIF） | ||
| Video compression | H.265/H.264 | ||
| Audio compression | G.711u, G.711a | ||
| Intelligent detection | Support human body detection, motion detection, etc. | ||
| Networks | Network, protocol | Supports PPPoE, IPv4, IPV6, TCP, UDP, DHCP, RTP, RTSP, DNS, D N S, DDNS, NTP, port mapping, etc. | |
| Interface protocol | Support ONVIF standard protocol, and realize the docking of mainstream brand NVR, video preview and video recording of PC client;Support GB / T28181 national standard agreement, and can connect with the national standard platform. | ||
| Audio interface | Support 1ch MIC / Line input, 1ch audio output (optional) | ||
| Communication interface | 1 RJ45 10 M / 100 M Adaptive Ethernet port | ||
| General Spec. | Temperature | -40℃~+60℃ | |
| Power supply | DC12V ± 25%, (POE optional) | ||
| Lightning protection | Power supply port 2KV lightning protection, network port 4KV lightning protection | ||
| Housing material | 304/316L Stainless steel | ||
| Cable hole | 1 M 20*1.5mm " inlet hole | ||
| Installation type | Multiple installation type based on the application environment | ||
| EX Cert. | Ex d IIC T6 Gb/Ex tD A21 IP68 T80℃ | ||
| IP protection | IP68 | ||
| Product weight | ≤2.5kg | ||
