IPZM-S2133-HF
| Quantity: | |
|---|---|
| PDF Export | |
Resolution: 2MP 1920×1080@60fps
33X Optical Zoom, 16X Digital Zoom
Support H.265/H.264/MJPEG, Multi-level Video Quality Configuration and Settings
Starlight Low Illumination, 0.001Lux/F1.5(color),0.0005Lux/F1.5(B/W), 0 Lux with IR
Smart Detection: Line Crossing, Intrusion, Region Enter/Exit
Support 3-stream, each stream can be independently configured with resolution and frame rate
ICR automatic switching, 24 hours day and night monitoring
Support BLC, Auto Electronic Shutter, adapt to different monitoring environment
Support 3D DNR, HLC, Electronic Image Stabilization, 120dB Optical Wide Dynamic
Support 255 Preset,8 patrols
Support Timed Capture and Event Capture
Support One-click watch and One-click cruise functions
Support 1 audio input and 1 audio output
Built-in 1 alarm input and 1 alarm output, support alarm linkage function
Support Bluetooth, Wi-Fi, 4G function module expansion
Support Micro SD / SDHC / SDXC card storage up to 256G
ONVIF
Rich interfaces for convenient function expansion
Small size and low power consumption, suitable for speed dome and PTZ
| Model | IPZM-S2133-HF | ||
| Optical | Image Sensor | 1/2.8” Progressive Scan CMOS | |
| Min. Illumination | Color: 0.001 Lux @(F1.5,AGC ON), B/W:0.0005Lux @(F1.5,AGC ON) | ||
| Shutter | 1/25s to 1/100,000s, Supports delayed shutter | ||
| Auto iris | DC | ||
| Day/Night Switch | IR cut filter | ||
| Digital zoom | 16X | ||
| Lens | Focal Length | 5.5-180mm, 33X Optical Zoom | |
| Aperture Range | F1.5-F4.0 | ||
| Horizontal field of view | 60.5-2.3°（wide-tele） | ||
| Minimum Working distance | 100mm-1000mm (wide-tele) | ||
| Zoom speed | Approximately 3.5s (optical lens, wide to tele) | ||
| Focal Length | 5.5-180mm, 33X Optical Zoom | ||
| Compression | Video Compression | H.265 / H.264 / MJPEG | |
| H.265 Type | Main Profile | ||
| H.264 Type | Base Line Profile / Main Profile / High Profile | ||
| Video Bitrate | 32 Kbps~16Mbps | ||
| Audio Compression | G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM | ||
| Audio Bitrate | 64Kbps (G.711)/16Kbps (G.722.1)/16Kbps (G.726)/32-192Kbps (MP2L2)/16-64Kbps (AAC) | ||
| Image | Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720)60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
| Third Stream | 50Hz: 50fps (704x480)60Hz: 60fps (704x480) | ||
| Image settings | Corridor mode, saturation, brightness, contrast, sharpness adjusted by IE/ Client | ||
| BLC | Support | ||
| Exposure mode | AE / Aperture Priority / Shutter Priority / Manual Exposure | ||
| Focus mode | Auto Focus / One Focus / Manual Focus / Semi-Auto Focus | ||
| Area exposure / focus | Support | ||
| Optical fog | Support | ||
| Image stabilization | Support | ||
| Day/Night Switch | Automatic, manual, timing, alarm trigger | ||
| 3D noise reduction | Support | ||
| Picture overlay switch | Support BMP 24-bit image overlay, customizable area | ||
| Region of interest | ROI supports three streams and four fixed areas | ||
| Networks | supports BMP 24-bit image overlay, customizable area | Support Micro SD / SDHC / SDXC card (256G) disconnected local storage, NAS (NFS, SMB / CIFS support) | |
| TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, SMTP, SNMP, IPv6 | |||
| Interface Protocol | ONVIF (PROFILE S, PROFILE G) | ||
| Smart functions | Smart detection | Intrusion detection, Line crossing, Region enter/exist, Motion detection, Video mask, etc. | |
| Interface | External Interface | 36pin FFC (Network port/RS485/RS232/CVBS/SDHC/Alarm In/Out/Line In/Out/power) | |
| General | Working Temperature | -30℃~70℃, humidity≤95%(non-condensing) | |
| Power supply | DC12V±25% | ||
| Power consumption | 2.5W MAX (IR Maximum,4.5W MAX) | ||

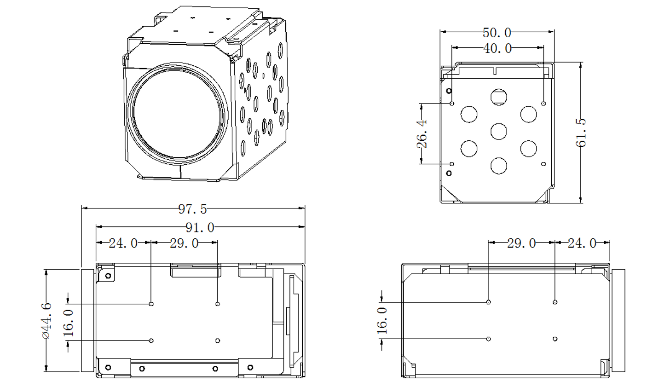

| Dimensions | 97.5*61.5*50mm | ||
| Weight | 268g | ||
