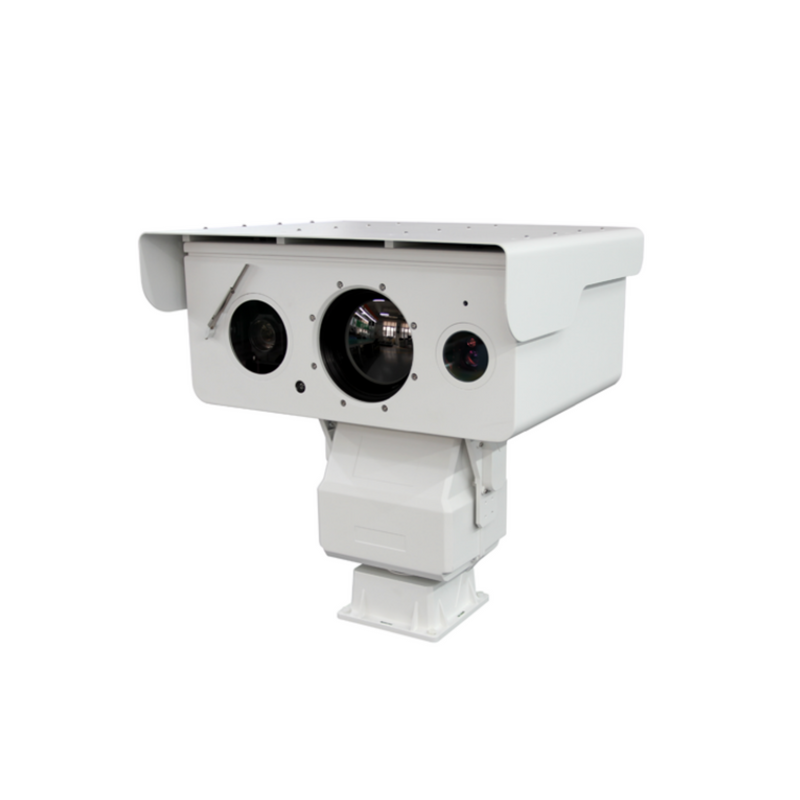

IPTZ-890-Z8100L40T225ZW
| Quantity: | |
|---|---|
| PDF Export | |
Support 8MP 100X long range super starlight surveillance with low illumination
Support thermal camera with high accuracy temperature measurement
Support laser illumination up to 4km
Support AI smart features: Motion detection, Video detection, Deep-learning AI algorithm, etc.
Double pitch worm gear transmission structure, electronic anti-shake and mechanical anti-loose design
Supports power-off self-locking, strong wind resistance and high stability
Support multiple lens preset functions, zoom adaptive, and the rotation speed can be automatically adjusted according to the zoom of the lens
Support power-off memory function, and automatically return to the monitoring scene before power-off after power on
Support watch function, preset point / scan / Cruise can be automatically called after staying in idle state for a specified time (including idle state after power on)
360 ° continuous rotation in horizontal direction and + 45 ° ~ - 45 ° rotation in vertical direction
Housing material with anti-corrosion materials, three prevention treatment, all-weather protection design and IP66 protection grade, which can be applied to salt fog video monitoring environment such as maritime, border and coastal defense
It can be widely used in places requiring large-scale HD image quality monitoring, such as border, coastal area, river, forest, road, railway, airport, port, sentry post, squares, stations, large venues, community, etc.
Model | IPTZ-890-Z8100L40T225ZW | |
Optical Module | Sensor | 1/1.8” CMOS sensor |
Resolution | 8MP, 3840x2160 | |
Low illumination | color: 0.0001Lux@(F2.1,AGC ON) B/W: 0.0005Lux@(F2.1,AGC ON) | |
Focal length | 100X, 12.5-1250mm optical zoom, 16X digital zoom | |
Optical Defog | Support | |
EIS/OIS | Support | |
Image enhancement | BLC, HLC, 3D DNR, DWDR | |
Smart function | Motion detection, Video detection, Perimeter detection, Line detection, Items left and lost, Audio detection, deep-learning AI algorithm | |
Thermal Module | Image sensor | Uncooled Microbolometer |
Resolution | 384*288/640*512 | |
Pixel pitch | 12μm | |
NETD | ≤40mK (25°C, F# = 1.0) | |
Lens | 25 ~225mm motorized continuous zooming | |
Zoom type | Manual/Auto | |
Temperature measurement | Measurement range: -20℃~150℃；0℃~550℃；500℃~1600℃ | |
Measurement accuracy: ± 2 ℃ or ± 2% (whichever is greater) | ||
Laser | Power | 20W |
wavelength | 808nm | |
Distance | 4KM | |
Networks | Compression | H.265 / H.264 |
Compression rate | 32 Kbps~32Mbps | |
Compression standard | G.711A/G.711U/G.726/AAC | |
Storage | Micro SD/SDHC /SDXC(256G),NAS(NFS,SMB/CIFS) | |
Protocol | TCP/IP,MTU,HTTP,HTTPS,FTP,DHCP,DDNS,UPNP,RTSP,RTMP,NTP,SMTP,PPPOE | |
PTZ | Rotation range | Horizon: 360° rotation, vertical: +45°～-45° |
Rotation speed | Horizon: 0.01～15°/s, vertical: 0.01～7°/s | |
Preset accuracy | ±0.1° | |
Preset points | 500 | |
Temp. control | Built-in heater, cooler components, auto power on/off | |
Others | Support cruise scanning, linear scanning, angle return, real-time return | |
General Spec. | Power supply | DC48V |
Consumption | <250W | |
Input | 1ch 10M/100M self-adaptive, 1ch power input | |
Working temp. | -35℃～+65℃ | |
Working humidity | <90%RH | |
Protection | IP66 | |
EMC | Power 4000V, Signal 2000V | |

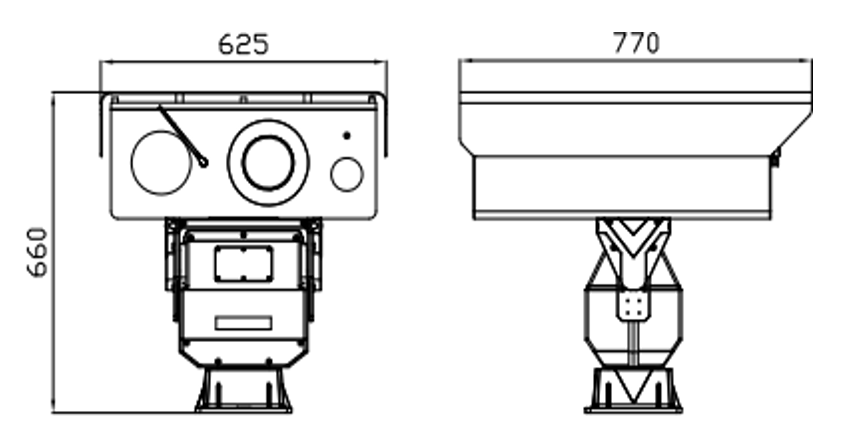

Dimensions | 625*770*660mm | |
Weight | ＜45kg | |
Note: Details are subject to change without prior notice. Please refer to latest product datasheet.
