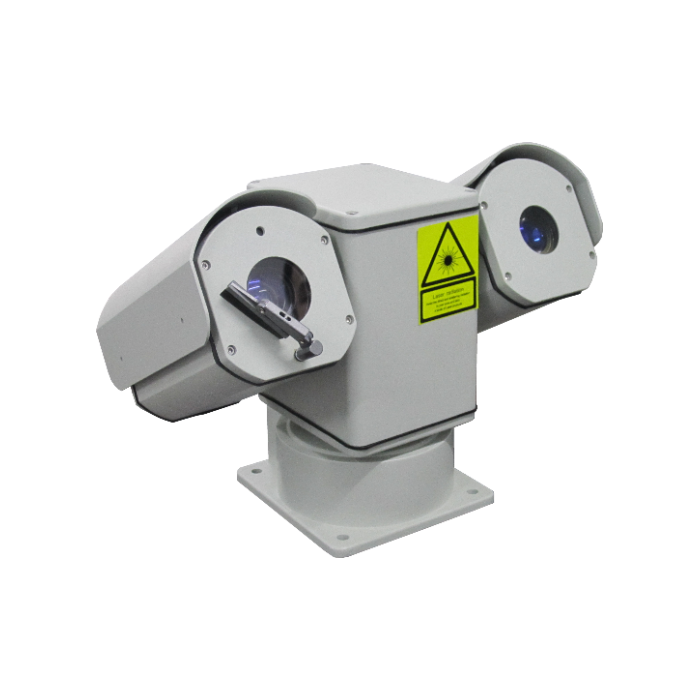

IPTZ-T310-Z296L30 (2MP/4MP)
| Quantity: | |
|---|---|
| PDF Export | |
The camera supports remote optical axis adjustment through an IE browser or client software. This function provides an adjustment option during camera configuration and maintenance, reducing the need for direct access to the optical assembly for supported adjustments.
The PTZ platform supports dual-side equipment mounting and can accommodate supported laser, infrared thermal imaging, zoom infrared illumination, and ultrasonic equipment configurations. This provides flexibility for different surveillance system designs, subject to the selected hardware configuration.
The PTZ unit features a worm gear transmission with a self-locking function. It supports continuous 360° horizontal rotation, vertical movement from -90° to +90°, 255 presets, and ±0.15° preset positioning accuracy for repeatable surveillance operation.
The camera is specified with IP67 protection and an operating temperature range of -40°C to +60°C. It supports ONVIF Profile S/G, network storage, and optional wireless antenna transmission arrangements for compatible surveillance system integration.
Support the customized service
Support dual-side equipment storage
Support laser, infrared thermal imaging, zoom infrared light, ultrasonic, etc.
Remote optical axis adjustment: adjust through IE browser and client software
Support wireless antenna transmission
Support 12VDC, 24VDC, 24VAC power supply
Worm gear drive with self-locking function
The minimum power consumption of the whole machine≤12W
Protection level of the whole machine: IP67
Compatible with Onvif
| Model | IPZM-T310-Z296/Z255/Z238 | ||||||
| Camera | Image Sensor | 1/1.8” Progressive Scan CMOS | |||||
| lens | Video Output 2MP | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720);60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) | |||||
| Focal Length | 6-576mm, 96X | 6-330mm, 55X | 6.5-247mm, 38X | ||||
| Aperture Range | F1.3~F4.6 | F1.3~F4.6 | F1.5~F4.8 | ||||
| Horizontal Field of View | 66-0.79° (wide-tele) | 66-1.6° (wide-tele) | 64.8-1.8°(wide-tele) | ||||
| Minimum Working Distance | 100mm-3000mm | 100mm-2500mm | 100mm-1500mm | ||||
| Laser | Distance | 2000m | 1500m | 1000m | |||
| Wavelength | 808nm | ||||||
| Chip Power | 16w | ||||||
| Network | Storage Function | Support micro SD / SDHC / SDXC card (256g) offline local storage, NAS (NFS, SMB / CIFS support) | |||||
| Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6 | ||||||
| Interface Protocol | ONVIF(PROFILE S,PROFILE G) | ||||||
| PTZ | Rotation range | Horizontal: 360° continuous rotation; Vertical: +90°～-90° | |||||
| spinning speed | Horizontal: 0.1～50°/s; Vertical: 0.1～100°/s | ||||||
| Preset position accuracy | ±0.15° | ||||||
| Number of preset positions | 255 | ||||||
| General Spec. | Power supply mode | DC12V | |||||
| Power consumption | ≤88W (minimum)/≤140W (infrared light ON, low temperature start) | ||||||
| Working temperature | -40℃～60℃ | ||||||
| Working humidity | <95%RH | ||||||
| Protection grade | IP67 | ||||||
| EMC level | Built-in 4000V lightning protection, anti-surge and anti-surge protection | ||||||
| Product weight | 11kg | ||||||
