FV-TM-12N-I
| Quantity: | |
|---|---|
| PDF Export | |
The HD Series uncooled infrared assembly is a high-resolution, high-performance module. With the network port as the core transmission interface, it integrates image acquisition, network transmission, and flexible control functions, providing a highly reliable and easily integrated solution for multi-domain infrared intelligent scenarios.
Thermal camera | |
Detector | Uncooled Vanadium Oxide Microcalorimeter |
Resolution | 1280×1024 |
Pixel spacing | 12μm |
Response band | 8～14μm |
NETD@25℃ | ≤40mk（@25°C,F#=1.0） |
FPS | ≤50Hz |
Image | |
Pseudo-color | Pseudo color modes such as white hot, black hot, red hot, desert yellow, sky, etc |
Image setting | manual adjustment |
image processing | Shutterless |
Digital filtering for noise reduction | |
Non-uniformity correction | |
Interface | |
Digital Video Output | Ethernet 1000M, HDMI |
Network protocols | Gige |
Communication interface | UART（TTL 3.3V） |
Power supply | |
Power supply | 5.5~20VDC |
Power supply | 12VDC |
power consumption | / |
Physical spec | |
Weight (without lens | / |

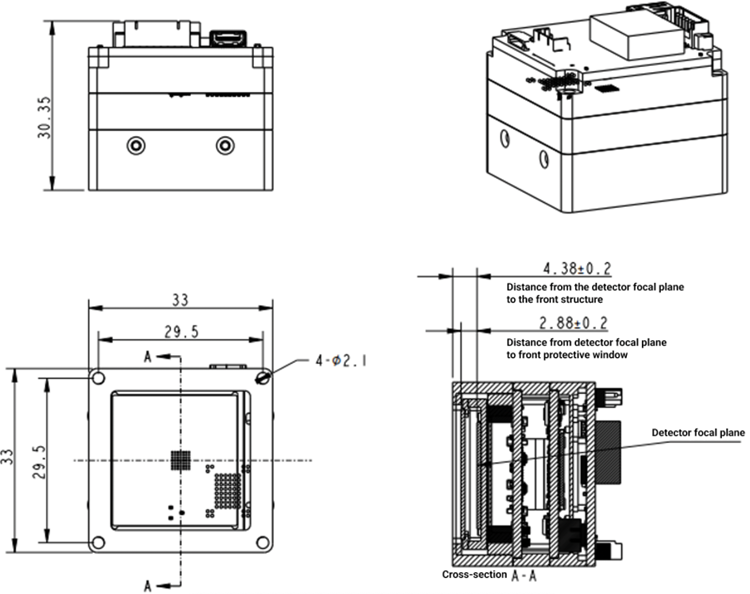

Dimensions (without lens) | 33mm×33mm×30.35mm±0.2mm |
Environment spec | |
Operating Temperature | -40℃~+60℃ |
Storage temperature | -50℃~+70℃ |
humidity | 5%～95%，No condensation |
Note: Details are subject to change without prior notice. Please refer to latest product datasheet.
