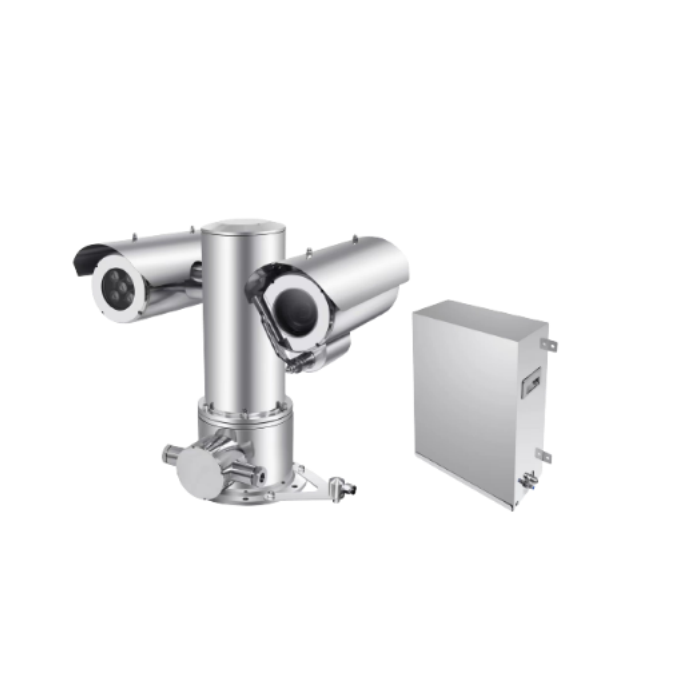

IPTZ-FB8005-8438T
| Quantity: | |
|---|---|
| PDF Export | |
Explosion-proof cert: Ex db IICT6 Gb/Ex tb IIIC T80°C Db 2
H. 265, 4MP 1/1.8 " CMOS
38X Optical, focal length: 6.5-247mm, 16X Digital zoom
Starlight low illumination: Color:0.0005 Lux @(F1.5,AGC ON); B/W:0.0001Lux @(F1.5,AGC ON)
Smart detection: Intrusion detection, Line crossing, Region enter/exist, Motion detection, Video mask, etc.
High-efficiency array IR lamp, low power consumption, IR 150 meters
Smart detection: area intrusion, line crossing, motion detection, video block, etc.
Support EIS, BLC, HLC, 3D DNR, 120 dB WDR
Supports low code rate, low latency, ROI, and automatically adjust code rate according to the scene situation
Supports power supply AC85V～260V, DC24V 3A options
Support 255 presets, power-off memory, automatic cruise and other functions
Support 360 ° horizontal rotation, ± 90 ° in vertical, without monitoring blind area
Intelligent wiper adopts automobile wiper blade with good weather resistance and easy for replacement
Worm gear drive structure with precision stepping motor, sensitive response and stable operation
Built in semiconductor controllable temperature components for automatic heating and heat dissipation
Use special explosion-proof glass with nanotechnology, high optical pass rate, non-adhesive water, non-sticky oil and non-dust
304/316L stainless steel, suitable for chemical industry, acid and alkali and other strong corrosive environments
| Model | IPTZ-FB8005-8438T | ||
| Camera | Resolution | 4MP | |
| Sensor | 1/1.8" Progressive Scan CMOS | ||
| Focal length | 38X optical,6.5-247mm, 16X digital | ||
| Shutter | 1/25~1/100,000 s | ||
| Illuminance | Color:0.0005 Lux @(F1.5,AGC ON); B/W:0.0001Lux @(F1.5,AGC ON) | ||
| Aperture | 150m | ||
| FOV | F1.5-F4.8 | ||
| Min. Work Distance | 64.8°-1.8°（wide-tele.） | ||
| Focus speed | 100mm-1500mm (wide-tele) | ||
| IR Distance | 3.5s | ||
| WDR | 120dB | ||
| Main Stream | 50Hz: 25fps (2688×1520，1920 × 1080,1280 × 720); 60Hz: 30fps (2688×1520，1920 × 1080,1280 × 720)； | ||
| Second Stream | 50Hz: 25fps(720×576，352×288); 60Hz: 30fps(720×576，352×288) | ||
| Third Stream | 50Hz: 25fps(1280 × 720，720×576，352×288); 60Hz: 30fps(1280 × 720，720×576，352×288) | ||
| Compression rate | 64Kbps~16Mbps | ||
| Audio compression | G.711a/G.711u/G.722.1/G.726/v/AAC/PCM | ||
| Code rate type | Fixed rate, variable bitrate | ||
| SVC | Support | ||
| ROI | Support | ||
| Image enhancement | EIS, BLC, HLC, 3D DNR | ||
| Image Settings | Rotation, saturation, brightness, contrast, sharpness, AGC, white balance is adjustable via the client or browser | ||
| Alarm trigger | Mobile detection, blocking alarm, abnormal | ||
| Smart functions | Intrusion detection, Line crossing, Region enter/exist, Motion detection, Video mask, etc. | ||
| General functions | Mirror mode, heartbeat, password protection, watermark, IP address filter, pixel calculator | ||
| Linkage mode | Upload FTP, upload center, mail, video, grab pictures | ||
| Network | Network, protocol | TCP/IP,MTU,HTTP,HTTPS,FTP,DHCP,DDNS,UPNP,RTSP,RTMP,NTP,SMTP,PPPOE | |
| Interface protocol | ONVIF(PROFILE S,PROFILE G) | ||
| RS485 | Adopt half-duplex mode, support Pelco-P, Pelco-D | ||
| Network storage | Micro SD/SDHC /SDXC(256G),NAS(NFS,SMB/CIFS | ||
| Preview channel | Up to 20ch at same time | ||
| User management | Up to 20 users | ||
| Browser | Windows XP, Win7, Win8, Win9, Win10, Win11, Microsoft edge | ||
| Communication | 1 RJ45 10 M / 100 M Adaptive Ethernet port | ||
| PTZ | Rotation | Horizontal: 360° continuous rotation; vertical: ± 90° | |
| Rotation speed | Horizontal: 0.1° -40° / s, vertical: 0.1° -40° / s | ||
| Preset point | 255 points | ||
| Preposition accuracy | ±0.1° | ||
| Automatic cruise | 4 line, 16 preset points in each line | ||
| Watch function | support | ||
| Long zoom speed limit | support | ||
| Power-off memory | support | ||
| Spray water tank | Wiper | support intelligent wiper function. The wiper adopts the automobile wiper blade with good weather resistance and easy replacement | |
| Spray function | When spray operate, the pan tilt automatically rotates to the spray point. when wiper starts, the water from the nozzle flushes the window glass. After cleaning, the pan tilt automatically returns to the position before the cleaning | ||

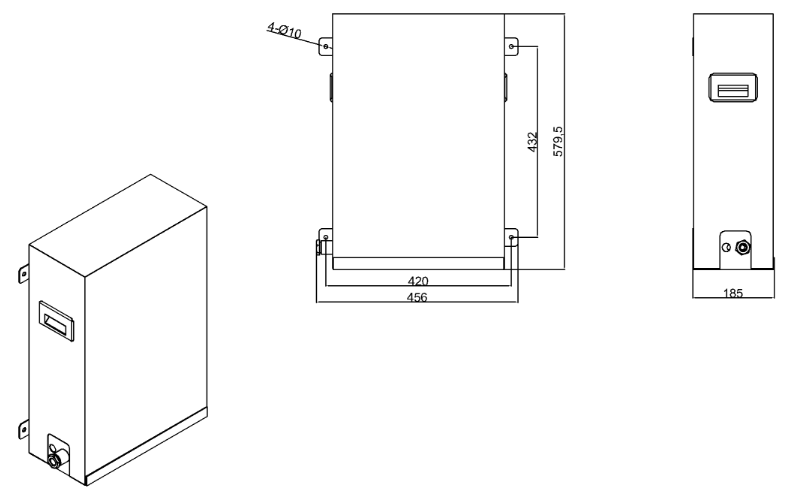

| Spray water tank | The built-in power system and water storage device provide a powerful water source for washing the window glass with the wiper | ||
| Inner device | Vacuum motor pump and water storage tank | ||
| pressure | 31 PSI | ||
| Flow rate | ＞1.9 L/min | ||
| Temperature | 0℃～ +60℃ | ||
| Power supply | DC12V～DC24V | ||
| Power rate | Max 22W | ||
| Cable hole | G3 / 4 " inlet hole*2 | ||
| General | Temperature | -40℃~+60℃ (＜95%) | |
| Power supply | AC85V ~ 260V / DC 24V 3A | ||
| Housing material | 304/316L Stainless steel | ||
| Cable hole | G3 / 4 " inlet hole*2 | ||
| Audio | 1in/1out | ||
| Alarm | 1in/1out | ||
| Optional | Built-in optical transceiver | ||
| Junction box | Support | ||
| Wiper | Support | ||
| Platform access | Third-party platform access(need to customize) | ||
| Installation | Multiple installation type based on the application environment | ||
| EX Cert. | Ex db IICT6 Gb/Ex tb IIIC T80°C Db 2 | ||
| IP protection | IP68 | ||
| Weight | PTZ camera: ≤ 34kg, water tank: ≤ 17kg | ||
