Using vanadium oxide uncooled infrared detector, it has high sensitivity and good image quality.
The highest resolution can reach 384*288, real-time image output
NETD sensitivity≤35 mK @F1.0, 300K
Optional lenses of 19mm, 25mm, 50mm, 15-75mm, 20-100mm, 30-150mm, 22-230mm, 30-300mmand other specifications
Supports network access and has rich image adjustment functions
Support RS232, 485 serial communication
Support 1 audio input and 1 audio output
Built-in 1 alarm input and 1 alarm output, supporting alarm linkage function
Supports Micro SD/SDHC/SDXC card storage up to 256G
Rich interfaces for easy function expansion
| Model | TM31013W | |||
| Detector | ||||
| Detector type | Vox Uncooled Thermal Detector | |||
| Effective Pixels | 384x288 | |||
| Pixel size | 12μm | |||
| Spectral range | 8-14μm | |||
| Sensitivity (NETD) | ≤35 mK @F1.0, 300K | |||
| Lens | ||||

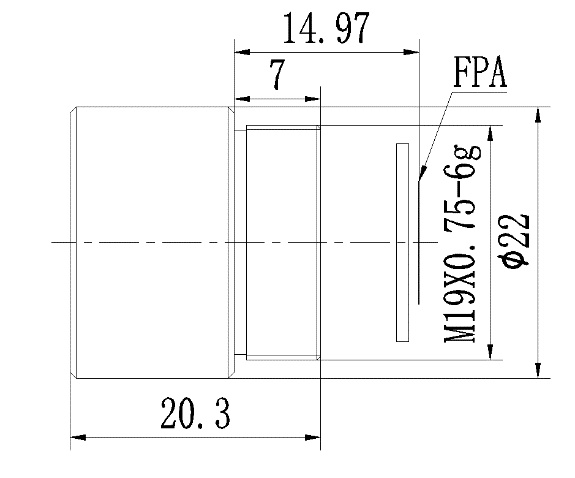

| Lens | F1.0, 13mm fixed athermalized lens | Lens | ||
| Focus | Fixed | Lens | ||
| Focus Range | 3m~∞ | Lens | ||
| Fov | 20°x15° | |||
| Network | ||||
| Network protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6 | N/A | ||
| Video compression standards | H.265 / H.264 | N/A | ||
| Interface Protocol | ONVIF(PROFILE S,PROFILE G) , SDK | N/A | ||
| Image | ||||
| Resolution | 25fps (384*288) | |||
| Image settings | Brightness, contrast, and gamma are adjustable through the client or browser | |||
| False color mode | 11 modes available | |||
| Image enhancement | support | |||
| Bad pixel correction | support | |||
| Image noise reduction | support | |||
| Mirror | support | |||
| Resolution | 25fps (384*288) | |||
| Interface | ||||
| Network Interface | 1 100M network port | |||
| Analog output | CVBS | |||
| Communication serial port | 1 channel RS232, 1 channel RS485 | |||
| Functional interface | 1 alarm input/output, 1 audio input/output, 1 USB port | |||
| Storage function | Support Micro SD/SDHC/SDXC card (256G) offline local storage, NAS (NFS, SMB/CIFS are supported) | |||
| Environment | ||||
| Operating temperature and humidity | -30℃~60℃, humidity less than 90% | |||
| Power supply | DC12V±10% | |||
| Power consumption | / | |||

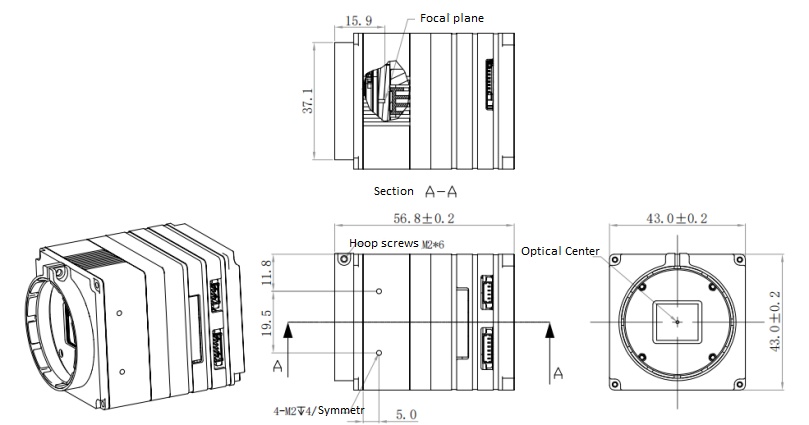

| Size | / | |||
| Weight | 139g | |||
