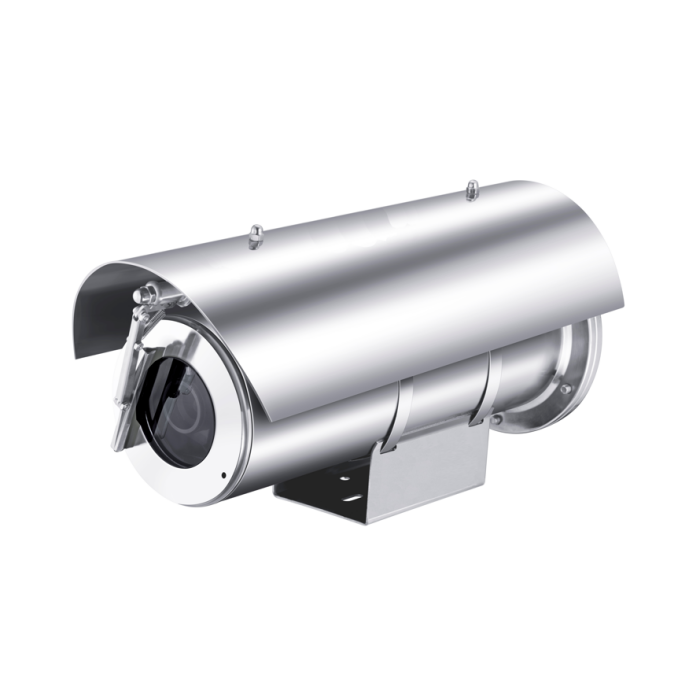

IPC-FB603-8225T
| Quantity: | |
|---|---|
| PDF Export | |
Explosion-proof cert: Ex db IIC T6 Gb (-40 °C ≤ Ta ≤ +60 °C) / Ex tb IIIC T80°C Db (-40 °C ≤ Ta ≤ +60 °C) IP68
H. 265, 2MP 1/1.8 " CMOS
25X Optical, focal length: 6.4-160mm
Starlight low illumination: 0.0005 lux (F1.5, AGC ON) color, 0.0001lux(F1.5, AGC ON) B/W
Smart detection: Video Detection, Motion Detection, Perimeter Detection, Line Detection, Items Left and Lost, Audio Detection
Supports EIS, BLC, HLC, 3D DNR, 120 dB WDR
Supports low code rate, low latency, ROI, and automatically adjust code rate according to the scene situation
Use special explosion-proof glass with nanotechnology, high optical pass rate, non-adhesive water, non-sticky oil and non-dust
304/316L stainless steel, suitable for chemical industry, acid and alkali and other strong corrosive environments
| Model | IPC-FB8000-7233T(NDAA) | ||
| Lens | Resolution | 2MP | |
| Sensor | 1/1.8" Progressive Scan CMOS | ||
| Focal length | 25X optical, 6.4-160mm, 16X digital zoom | ||
| Shutter | 1/25~1/100,000 s | ||
| Illuminance | 0.005lux (F1.5, AGC ON) color, 0.0001 lux(F1.5, AGC ON) B/W | ||
| Aperture | F1.5-F4.0 | ||
| FOV | 60.5°-2.3° | ||
| Min. working distance | 100mm-1500mm (wide-tele) | ||
| Zoom speed | 3.5s | ||
| WDR | 120dB | ||
| Image | Main Stream | 50Hz: 25fps(1920x1080,1280x960,1280x720); 60Hz: 30fps(1920x1080,1280x960,1280x720) | |
| Second Stream | 50Hz: 25fps(1280x720,640x480,352x288); 60Hz; 30fps(1280x720,640x480,352x288) | ||
| Third Stream | 50Hz: 25fps(704x576,640x480,352x288); 60Hz: 30fps(704x576,640x480,352x288) | ||
| Compression rate | 64Kbps~16Mbps | ||
| Audio compression | G.711A/G.711U/G.726/AAC | ||
| Code rate type | Fixed rate, variable bitrate | ||
| SVC | Support | ||
| ROI | Support | ||
| Image enhancement | BLC, HLC, 3D DNR | ||
| Image Settings | Rotation, saturation, brightness, contrast, sharpness, AGC, white balance is adjustable via the client or browser | ||
| Alarm trigger | Mobile detection, blocking alarm, abnormal | ||
| Smart functions | Video Detection, Motion Detection, Perimeter Detection, Line Detection, Items Left and Lost, Audio Detection | ||
| Networks | General functions | Mirror mode, heartbeat, password protection, watermark, IP address filter, pixel calculator | |
| Linkage mode | Upload FTP, upload center, mail, video, grab pictures | ||
| Network, protocol | TCP/IP,MTU,HTTP,HTTPS,FTP,DHCP,DDNS,UPNP,RTSP,RTMP,NTP,SMTP,PPPOE | ||
| Interface protocol | ONVIF(PROFILE S,PROFILE G) | ||
| Network storage | Micro SD/SDHC /SDXC(256G),NAS(NFS,SMB/CIFS | ||
| Preview channel | Up to 20ch at same time | ||
| User management | Up to 20 users | ||
| Browser | Windows XP, Win7, Win8, Win9, Win10, Win11, Microsoft edge | ||
| General Spec. | Audio | 1 in /1 out | |
| Alarm | 1 in /1 out | ||
| Communication | 1 RJ45 10 M / 100 M Adaptive Ethernet port | ||
| Temperature | -40℃~+60℃ | ||
| Power supply | AC85V ~ 260V / DC 12V 3A(optional) | ||
| Housing material | 304/316L Stainless steel (316L optional) | ||
| Cable hole | G3 / 4 " inlet hole*1 | ||
| Wiper | Support | ||
| Installation | Multiple installation type based on the application environment | ||
| EX Cert. | Ex db IIC T6 Gb (-40 °C ≤ Ta ≤ +60 °C) / Ex tb IIIC T80°C Db (-40 °C ≤ Ta ≤ +60 °C) IP68 | ||
| IP protection | IP68 | ||
| Weight | ≤ 7.5kg | ||
