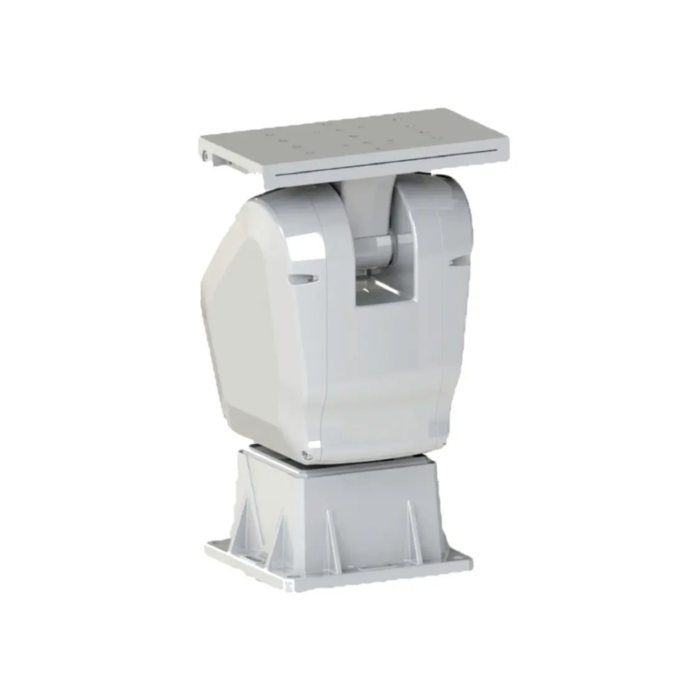

Outdoor intelligent variable speed PTZ, the fuselage selection of high strength aluminum alloy material, exterior design can resist strong winds, smooth operation, high precision.
Products using high-precision stepper motor and precision worm gear drive combination, power can be self-locking.
Support a variety of lens preset function, zoom adaptive function, the rotation speed can be automatically adjusted according to the lens zoom factor.
Powerful, with preset, cruise, line sweep, keep watch and other functions.
Visual pitch angle range, monitoring a wide range of horizontal speed up to 100 °/ s.
Network transmission signal can reach 100Mbps.
Support RS485/RS422 communication port, can update software through long distance, convenient for equipment maintain.
Power failure memory function, accidental power after re-power, the memory of the last running state, can be restored to power before running state.
| Model | PT520 |
| Function | Parameters |
| Spinning speed | Level：0.1°/s-100°/s Vertical：0.1°/s-40°/s |
| Rotation angle | Level：360° Vertical：-90°~ +40° |
| Preset position | 200(effective) |
| Preset accuracy | ±0.1° |
| Lens control speed | Zoom, focus continuously adjustable control speed |
| PTZ speed adaptive | Support |
| Automatic cruise | Support one |
| Automatic scanning | Support one |
| Keep watch | One preset or one automatic cruise route or one auto scan route can be set |
| Power-off memory location | Support (can be restored before the power off position, preset position status, cruise status, line sweep state) |
| Protocol | Pelco D |
| CommunicationInterface | RJ45 network port (network PTZ configuration) |
| Voltage input | AC24V±15 %，50/60Hz or DC24V±10 % |
| Power consumption | ≤70W |
| Operating temperature | -25℃~+65℃ 90±5%RH（No heating）-40℃~+70℃ 90±5%RH（With heating） |
| Storage temperature | -40℃~+70℃ |
| Ingress Protection | IP66 |

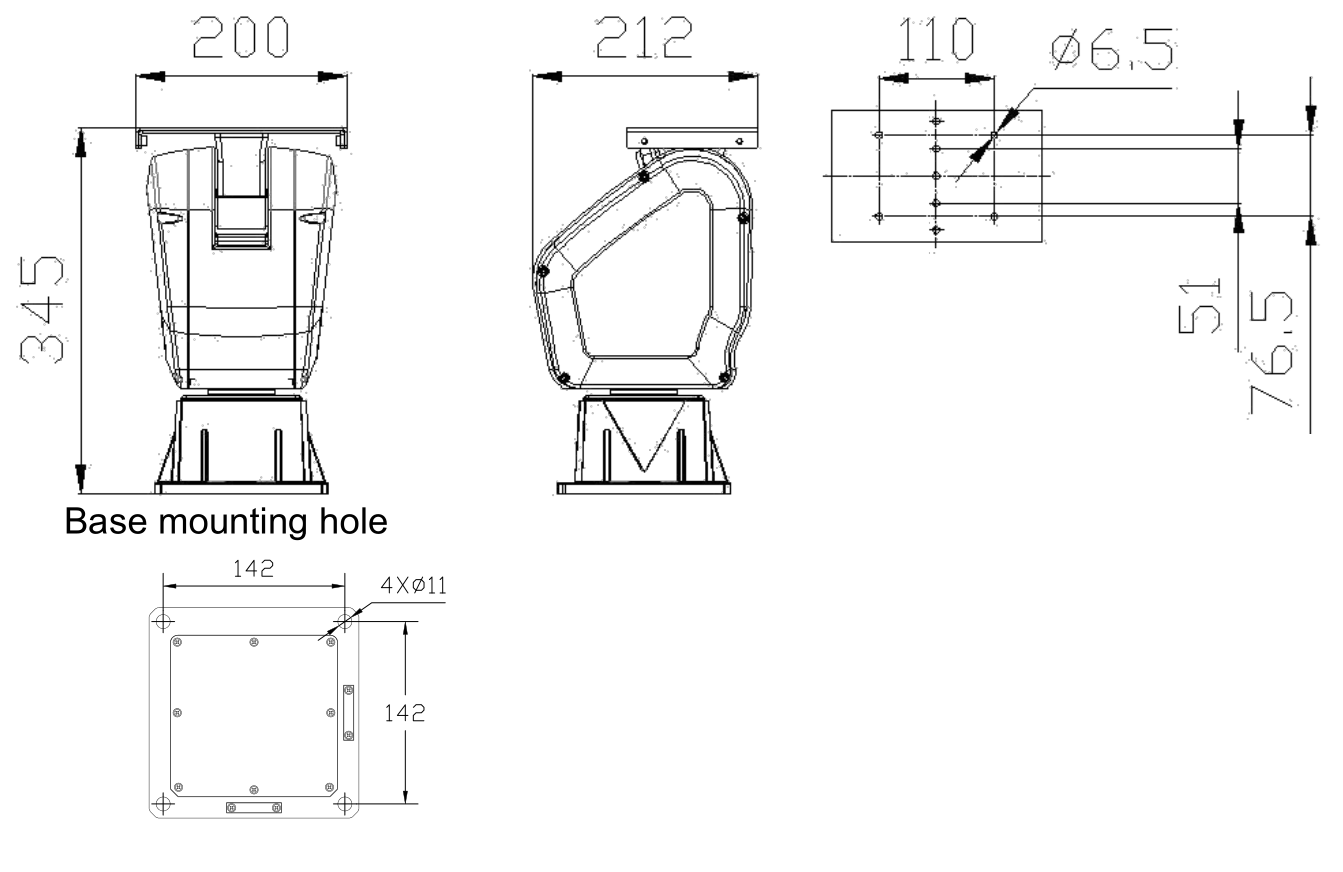

| Dimensions | 212mm×200mm×345mm(L*W*H) |
| Product material | Aluminum alloy |
| Total Weight | ≤12kg |
