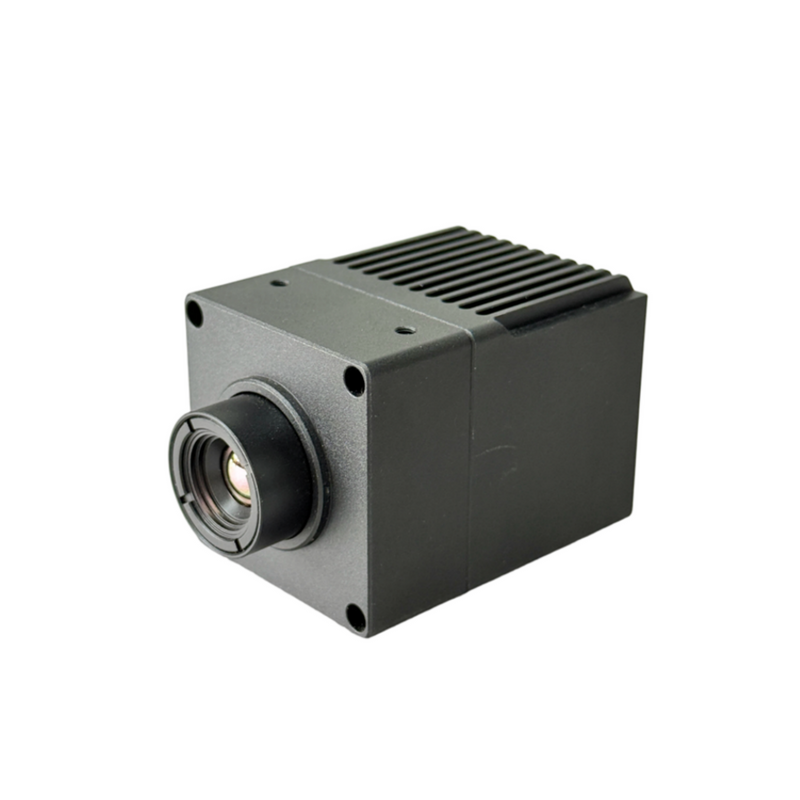

FV-TM19AN-LMB2
| Quantity: | |
|---|---|
| PDF Export | |
Built-in new generation high-sensitivity VOx infrared detector, offering consistently high-performance core components, advanced image algorithms, and lens control technology
Can be widely applied in various scenarios, including perimeter security, high-altitude observation, forest fire prevention and water monitoring, industrial temperature measurement and rail monitoring.
1920×1280 ultra-large array display, optimized for specific scenarios such as forests, seascapes, skies, rain, and foggy weather, providing customers with clear and sharp infrared images.
Video output interfaces options such as network interfaces, LVCMOS, BT.1120 and MIPI, with the possibility of expanding to SDI, USB, CameraLink, HDMI interfaces.
Support athermalized fixed-focus lenses, fixed-focus motorized lenses, and continuous zoom lenses. They can achieve functions like motorized focus, continuous zoom, auto focus, and defocusing compensation.
Model | FV-TM19AN-LMB2 |
Performance Indicator | |
Detector Type | VOx uncooled IRFPA |
Pixel Pitch | 8μm |
Pixel Resolution | 1920×1080 |
Frame Rate | 30Hz |
Spectral Range | 8~14μm |
NETD | ≤35mK@25℃, F#1.0 |
Image Adjustment | |
Polarity | Black hot/White hot |
Color Palettes | Support (18 types) |
Digital Zoom | 1.0~8.0× Continuous Zoom (in 0.1×increment) |
Image Processing | NUC |
Brightness and contrast adjustment | |
Temporal Filter and Spatial Filter | |
Digital Detail Enhancement | |
Image style switching | |
Image Mirror | Horizontal/Vertical/Horizontal & Vertical |
Temperature Measurement & Alarm Functions | |
Measurement Range | Available |
Measurement Accuracy | Available |
Level&Span | Available |
Solar Protection | Support |
Fire Alarm | Support |
Lens Control | |
Lens Type | Athermalized fixed focus/ motorized fixed focus /continuous zoom |
Lens Options | Multiple lens, see Section 2: Lens Options for details |
Auto Focus | Support (Auto focusing time near clear spot≤1s) |
Motorized Focus | Available |
Motorized Zoom | Available |
Power Supply | |
Typical Supply Voltage | 5-24V DC, the standard 12V DC is recommended |
Power Protection | Over-voltage/Under-voltage/Reverse Polarity |
Typical Consumption @25℃ | ≤2.8W |
Interface | |
Video Output | LVCMOS//BT.1120 (1) /MIPI |
Video Sync Input | Support |
Video Sync Output | Support |
Serial Communication Interface | RS-232 |
RS-485(support PELCO-D protocol only) | |
Physical Properties | |
Weight | 165±5g(Lens Excluded) |

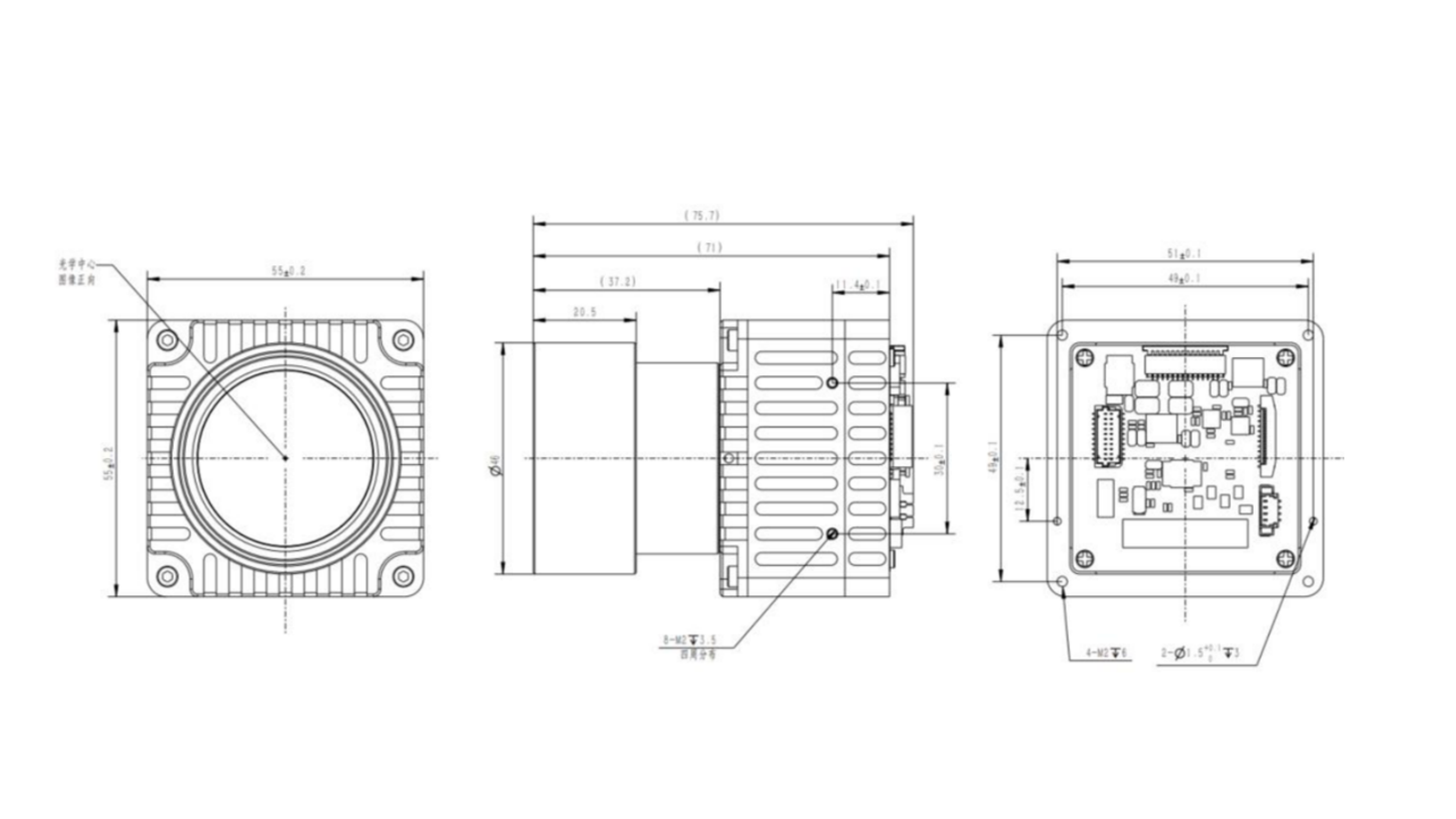

Size | 55mm ×55mm (±0.2mm) |
Environmental Adaptation | |
Operating Temperature Range | -40℃～+70℃ |
Storage Temperature Range | -45℃～+85℃ |
Humidity | 5-95%, no condensation |
Environment Certification | |
RoHS 2.0 | Compliant |
Note: Details are subject to change without prior notice. Please refer to latest product datasheet.
