FV-TM31009ANT-U
| Quantity: | |
|---|---|
| PDF Export | |
12μm high sensitivity VOx Uncooled Infrared Focal Plane Detector
384*288 @50fps
Lens: 9.7mm F1.0
NETD Sensitivity: 40mK @F1.0, 25℃
Mini Size: 20mm×20mm×29.8mm(with lens)
Ultralight: ≤24g
Support full screen temperature measurement and expert temperature measurement
Support UVC protocol
Supports 2 temperature measurement ranges: -20℃~150℃ and 100℃~550℃
Temperature measurement accuracy: ± 2 ℃ or ± 2% reading(taking the maximum value between them)
The model design is compact and easy to integrate
Model | FV-TM31009ANT-U |
Detector | |
Detector Type | Vanadium Oxide Uncooled Infrared Focal Plane Detector |
Effective Pixels | 384*288 |
Pixel Pitch | 12μm |
Spectral Range | 8-14μm |
Effective Frame Rate | 50fps |
Sensitivity (NETD) | 40mK (25°C, F# = 1.0) |
Lens | |
Focal Length | 9.7mm |
Aperture | F1.0 |
Focusing Type | Auto Focus |
Min. Focusing Distance | 2m |
FOV | 9.7MM:26.46°(H)×19.81°(V) |
Image | |
Pseudo Color | White heat, black heat, fusion, Iron red, fusion |
Temperature Measurement | |
Temperature Measurement Ranges | -20℃~150℃ and 100℃~550℃ |
Temperature measurement accuracy | ± 2 ℃ or ± 2% reading (taking the maximum value between them) |
Interface | |
Output | UVC |
Environment | |
Operating Temperature | -40°C~+80°C |
Storage Temperature | -45°C~+85°C |
Humidity | 95% |
Power Supply | DC 5V-16V |
Power Consumption | ≤0.8 W |

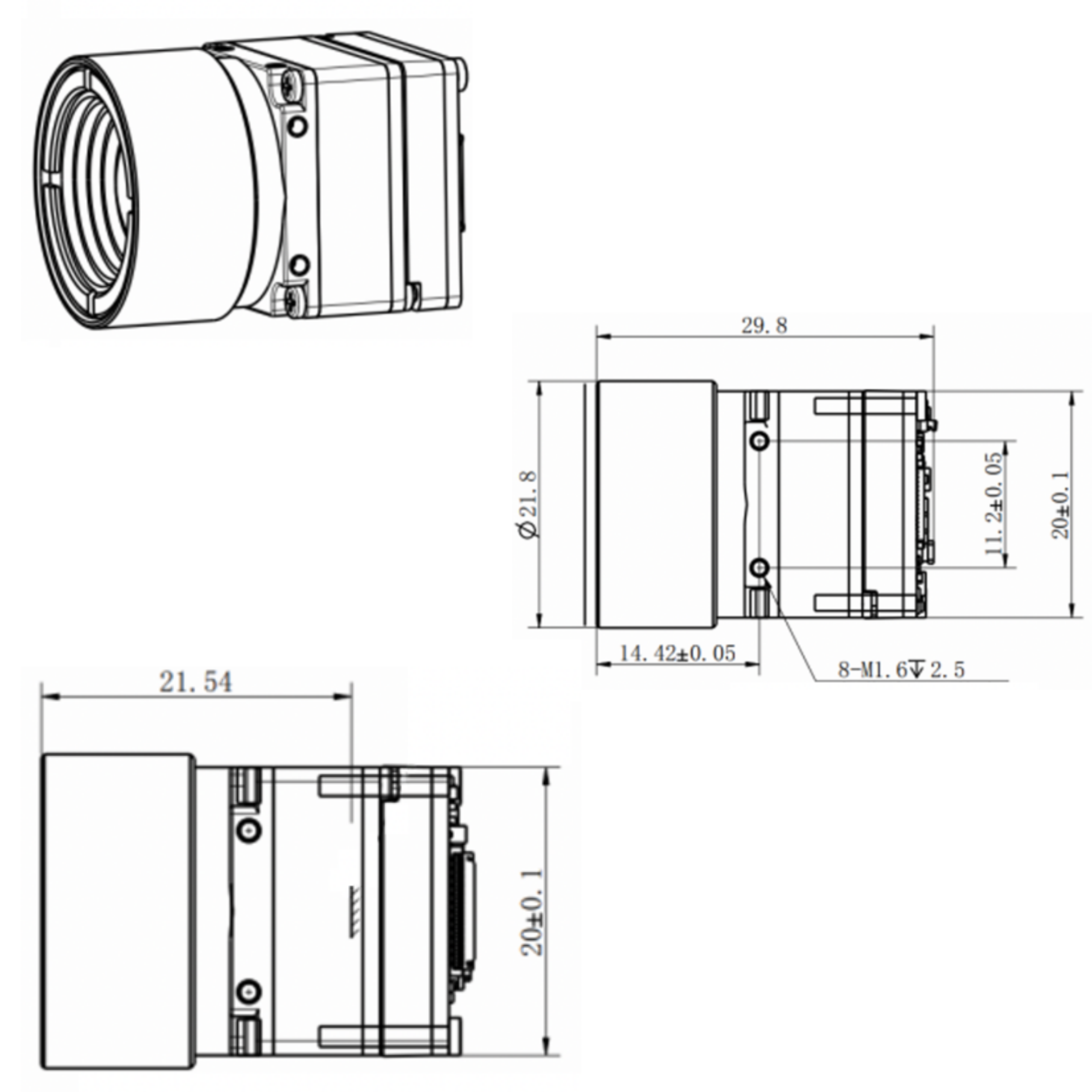

Dimensions (without Lens) | 20mm × 20mm × 15.4mm |
Dimensions (with Lens) | 20mm × 20mm × 29.8mm |
Weight | ≤24g |
Note: Details are subject to change without prior notice. Please refer to latest product datasheet.
