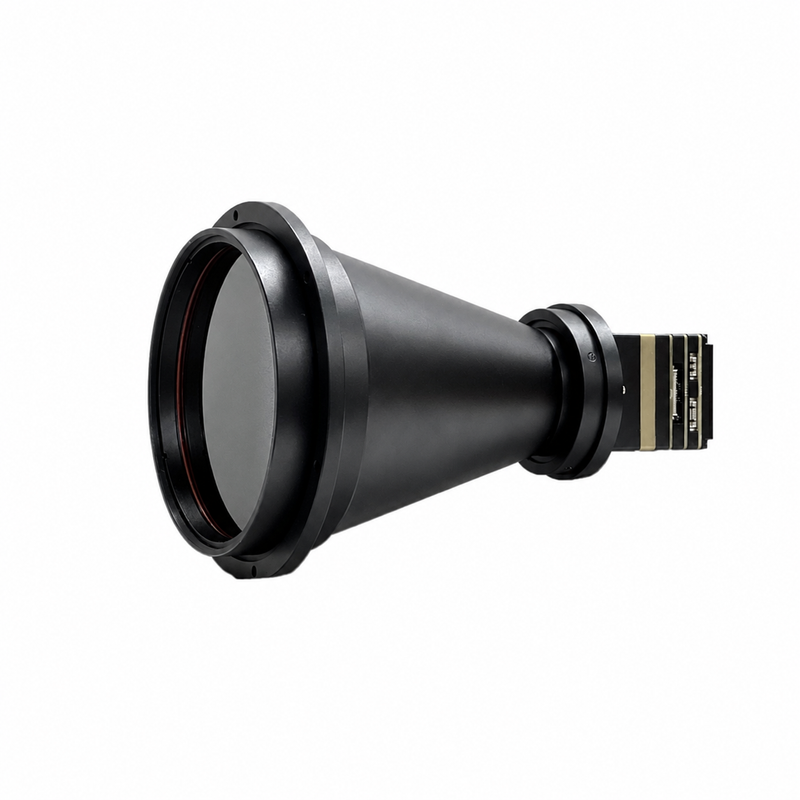

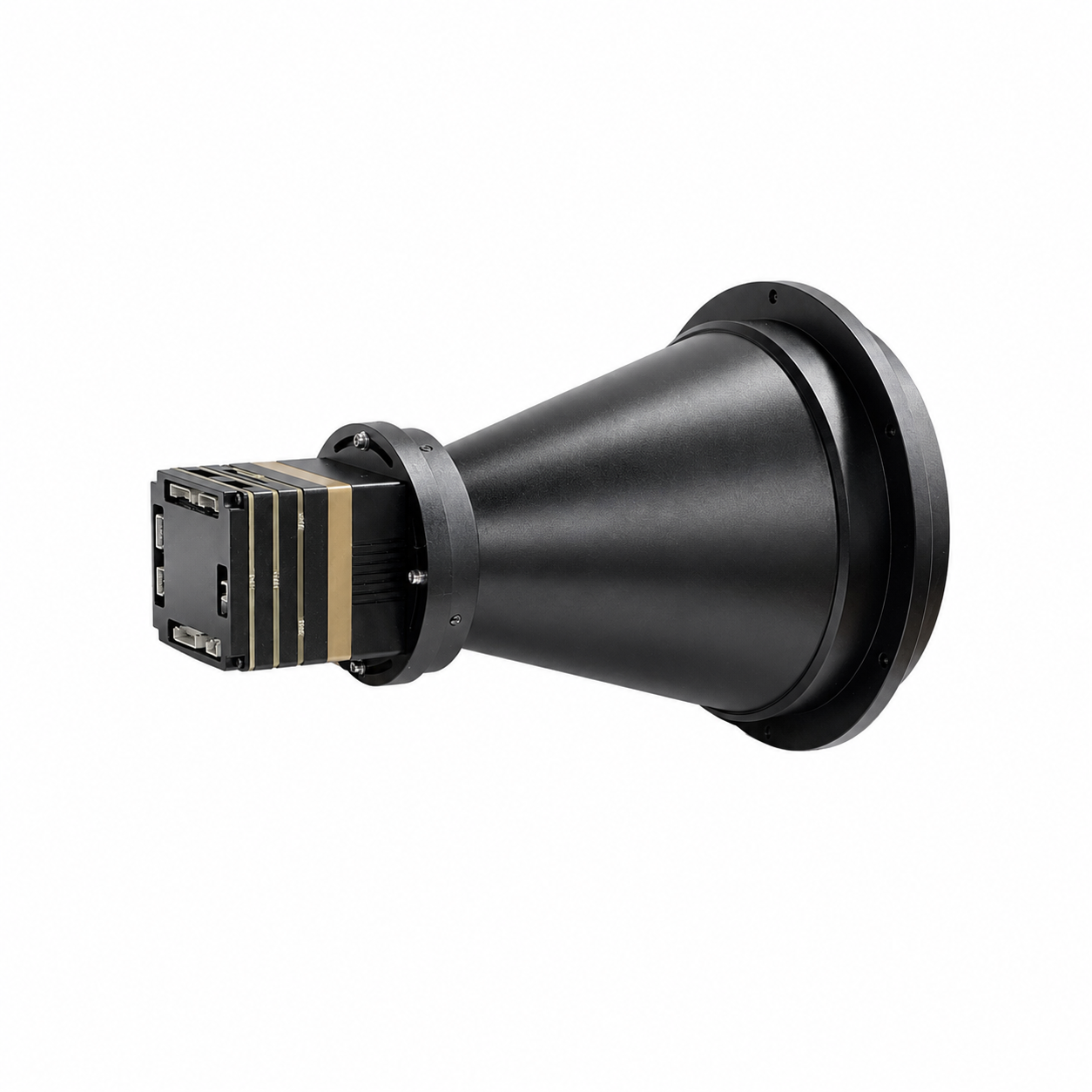

1280×1024 Uncooled UVC Thermal Imaging Camera with 100mm Athermalized Lens

Introduction

The USB infrared movement is a core component designed specifically for various devices that require infrared thermal imaging function. It supports HDMI and USB high-definition digital video output, center point temperature measurement, and outputs the maximum temperature, minimum temperature, and average temperature of the output area. It is also equipped with UART communication interface. This movement integrates advanced infrared detection technology and image processing algorithms, which can be widely used in many fields such as medical health, smart furniture, industrial temperature measurement, etc. It helps users quickly and accurately obtain the thermal information of target objects, so as to perform state monitoring, fault diagnosis, target recognition and other operations.

Features

 Multi-channel HD Video Output

 Supports HDMI & USB dual high-definition digital video output for flexible display and data access.

 Comprehensive Temperature Measurement Function

 Built-in center point temperature measurement; real-time output of maximum, minimum and average temperature within the detection area.

 Reserved UART Communication Port

 Equipped with standard UART serial interface for secondary development, data transmission and external device linkage.

 Integrated Core Imaging Technology

 Adopts high-precision infrared detection sensors and optimized professional image processing algorithms for stable, clear thermal imaging.

 Wide Application Compatibility

 Applicable to medical health monitoring, smart home, industrial non-contact temperature measurement and other thermal detection scenarios.

 Efficient Thermal Data Acquisition

 Enables fast, accurate acquisition of target thermal data to support equipment status monitoring, mechanical fault diagnosis and target identification.

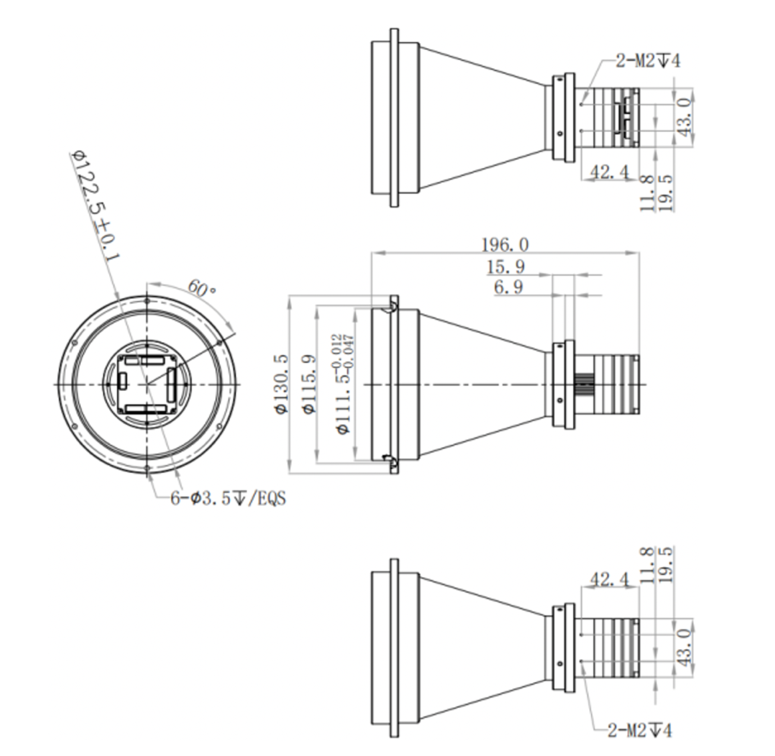

Dimensions(mm)
