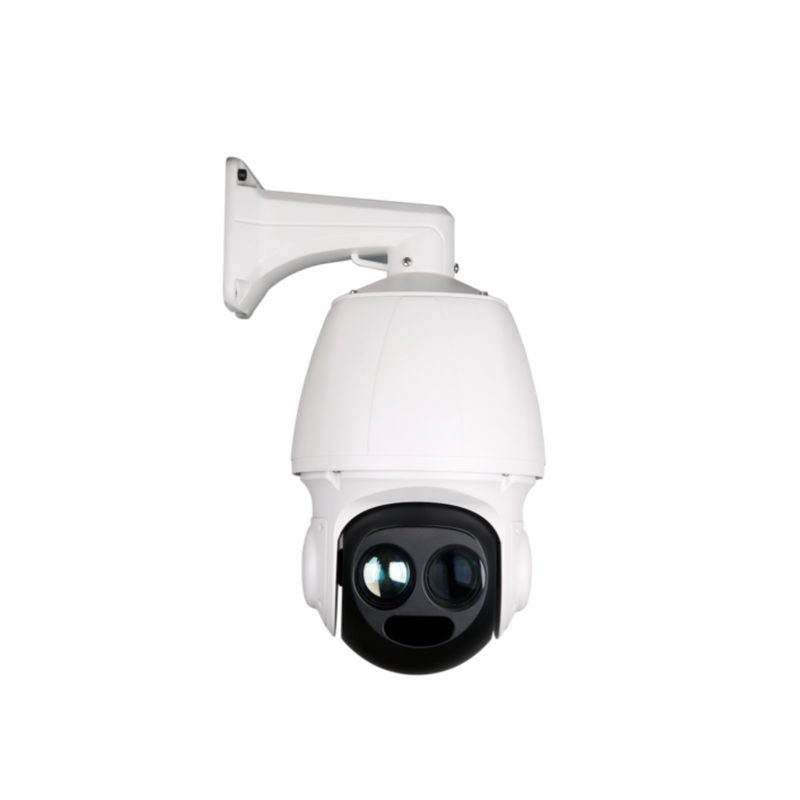

IPSD-8D236FT-HLB-T640
| Quantity: | |
|---|---|
| PDF Export | |
H.265/H.264, 2MP, 1/1.8’’ CMOS sensor
36X Optical, 6.4-231mm, Auto Focus, 16X Digital
640*512 Thermal, focal length 50mm, Vanadium Oxide Uncooled Infrared Focal Plane Detector
Super WDR, Auto WDR, 0-100 Digital Adjustment
Support Starlight, 3D DNR, three stream
Support SD/TF card (256G)
Support laser distance: 500m
Precision stepper motor drive, Smooth operation, sensitive response, accurate positioning
Support Smart Functions: Video Detection, Motion Detection, etc.
Multiple protocol/ interfaces, Open SDK, Function extension
Support OEM/ODM and Customization service
Support ONVIF, Excellent Compatibility
Support BMP, JPG snapshot
Support IP66, IK10
Applicable to zoom camera, speed dome, PTZ products for office, parking, entrance and other low illumination areas that require face recognition and high-resolution image.
Model | IPSD-88236FT-HLB | |
Optical Module | Resolution | 2MP, 1920×1080 |
Sensor | 1/1.8” Sony Progressive CMOS | |
Optical Zoom | 6.4-231mm, 36X Optical | |
Digital Zoom | 16X | |
Aperture Range | F1.5~F4.8 | |
Shutter Speed | 1/25~1/100000 | |
Illumination | 0.0005Lux @ (F1.5, AGC ON) Color,0.00001Lux @ (F1.5, AGC ON) B/W | |
FOV | 62~1.9° (Wide-Tele.) | |
Min. Distance | 10mm-1500mm (Wide-Tele) | |
AF Speed | 3s (Optical, Wide-Tele) | |
D/N Shift | ICR, Auto, Color, White/Black | |
Thermal Module | Detector | Vanadium Oxide Uncooled Infrared Focal Plane Detector |
Resolution | 640*512 | |
Pixel Interval | 12μm | |
Response Waveband | 8 - 14 μm | |
NETD | 40mK (25°C, F# = 1.0) | |
Focal Length | 50mm | |
Focusing Type | Manual focus | |
Pseudo Color | White heat, black heat, fusion, iron red, fusion, etc. | |
FOV | 11.25° (D) x 8.78° (H) x 7.02° (V) | |
Min. Focusing Distance | 8m | |
Effective Frame Rate | 50fps | |
Image | Video Output | Network Coding |
Image Adjustment | Saturation, Brightness, Contrast, Sharpness, Hue Adjustment | |
Image Setting | Privacy Mask, Anti Flicker, Defog, Corridor Mode, Mirror, Rotate, BLC, HLC, Defect Point Compensation, Watch Mode, Power Off Memory, EIS,3D Positioning, | |
ROI | 4 Areas | |
Focus Mode | Auto/Manual/Semi Auto/One Time Focus (Auto Mode) | |
Exposure Mode | Auto/Manual/Shutter Priority/Low Light Priority/High Light Priority/Aperture Priority | |
White Balance | Auto 1/Auto 2/Indoor/Outdoor/Manual/Sodium Lamp/White Lamp/One Time Tracking/Auto Tracking | |
WDR | Super WDR, Digital WDR, 0-100 Digital Adjustment | |
DNR | 2D/3D | |
Lens Initialization | Built-In Shutter Priority | |
System Mode | PAL/NTSC | |
PTZ | Rotation Scope | Level: 0°-360° Vertical: -20~93° Auto rotation |
Cruising PTZ | 8 lines (18 presetting points in each line) | |
Rotation Speed | Horizontal 0.05°~300°/s, Vertical:0.05°~300°/s | |
Presetting | 500 points | |
Others | Automatic flip, return function, boot action and so on | |
Function | Smart Function | Video Detection, Motion Detection, Perimeter Detection, Line Detection, Items Left and Lost, Audio Detection |
Support Protocol | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, Pppoe, NTP, Upnp, SMTP, SNMP, IGMP, Qos, RTMP, IPV6, MTU | |
Protocol | ONVIF, Active registration | |
Network | General | Heartbeat, Password Protection, Black/White List |
Video Compatibility | ONVIF2.4, Active Register | |
Video Bit Rate | 64 Kbps~16Mbps | |
Audio Compression | G.711A, G.711U, G.726, AAC | |
Video Compression | H.265 / H.264 | |

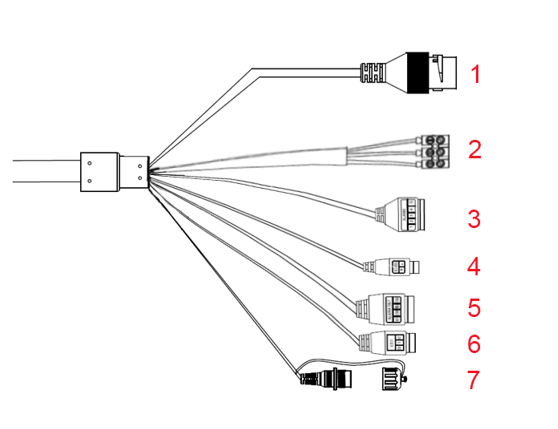

Interface | On-Board Storage | Built-In Micro SD, Up To 256GB (Class 10) |
36pin FPC | RJ 45 10M/100M LAN Self-Adaptive, 1ch | |
Network Light,1ch | ||
RS485,1ch | ||
RS232,1ch | ||
Alarm In,1ch | ||
Alarm Out,1ch | ||
Audio In,1ch | ||
Audio Out, 1ch | ||
Power, 1ch | ||
SD Card Data, 1 Set | ||
Reset, 1ch | ||
Expansion | USB 1ch, URAT 1ch, GPIO 1ch | |
Others | Working Temp. | -30℃~ +60℃ Humidity≤95% (Non-Condensing) |
Power Supply | DC12V±10% | |
Power Cons. | 2.5W~4.5W | |

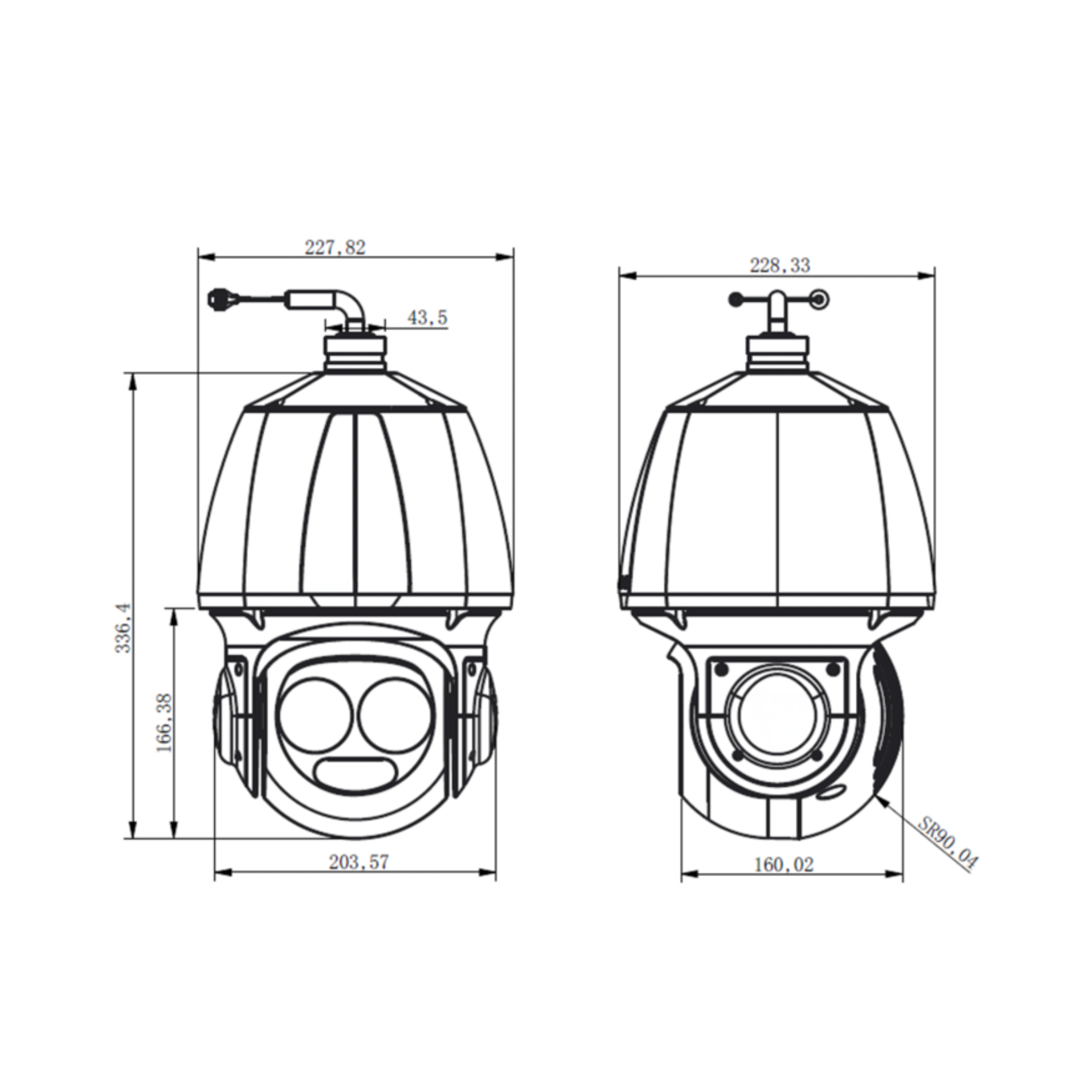

Dimension | Φ227.8*362.5mm | |
Remark | IP66 IK10 | |
Installation | Wall mount (option: ceiling mount) | |
Weight | 6.5kg | |
Note: Details are subject to change without prior notice. Please refer to latest product datasheet.
