2MP 20X 7" Starlight IR Network Speed Dome Camera

  • IPSD-78220T-HIB

Availability:
Quantity:
Inquiry Add to Basket

PDF Export

Features

 Support H.265/H.264, 2MP

 H.265, 2MP, 1920x1080

 1/3"Progressive CMOS, Support 2D/3D DNR

 0.005Lux, BLC, HLC

 Precision motor, smooth operation, accurate presetting

 Low Illumination,

 20X Optical zoom, 5.4-108mm

 IR 200m 

 Support Mask, Defog, Mirror, Corridor Mode

 Support Motion Detection, Line crossing

 Support Three Streams, heartbeat

 Support BMP/JPEG Snapshot

 IP66

 Support ONVIF

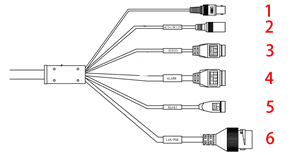

Interface

1. CVBS Output

2. Power

3. Audio In/Out

4. Alarm In/Out

5. RS485

6. RJ45


Application

Applicable to open areas surveillance like park, road, river, oil onsite, railway, forest, airport, seaport, and other places with low or no light surroundings while requiring high video/picture quality.

Dimensions
