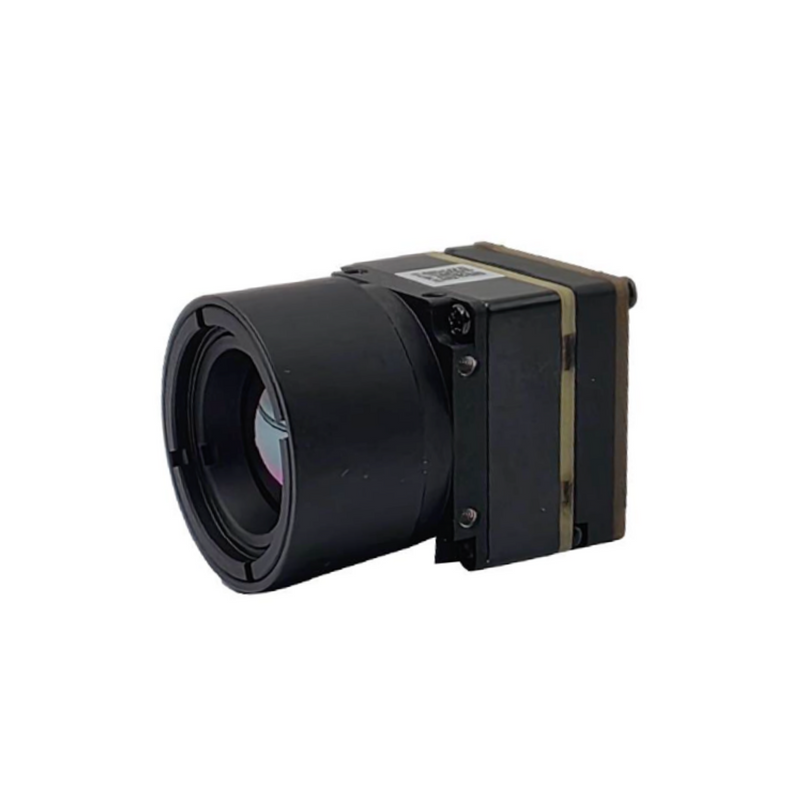

FV-TM21004/9ANT-U
| Quantity: | |
|---|---|
| PDF Export | |
12μm high sensitivity VOx Uncooled Infrared Focal Plane Detector
256*192 @25fps
Lens: 4.0mm F1.0 / 6.8mm F1.0 / 9.7mm F1.0
NETD Sensitivity: 40mK @F1.0, 25℃
Mini Size: 20mm×20mm×29.8mm(with lens)
Ultralight: ≤24g
Support full screen temperature measurement and expert temperature measurement
Support UVC protocol
Supports 2 temperature measurement ranges: -20℃~150℃ and 100℃~550℃
Temperature measurement accuracy: ± 2 ℃ or ± 2% reading (taking the maximum value between them)
The model design is compact and easy to integrate
Model | FV-TM21004/9ANT-U |
Detector | |
Detector Type | Vanadium Oxide Uncooled Infrared Focal Plane Detector |
Effective Pixels | 256*192 |
Pixel Pitch | 12μm |
Spectral Range | 8-14μm |
Effective Frame Rate | 25fps |
Sensitivity (NETD) | 40mK (25°C, F# = 1.0) |
Lens | |
Focal Length | 4.0mm / 9.7mm |
Aperture | F1.0 |
Focusing Type | Manual Focus |
Min. Focusing Distance | 2m |
FOV | 4.0mm: 45°(H) * 33°(V) 9.7mm: 18.1°(H) * 13.6°(V) |
Image | |
Pseudo Color | White heat, black heat, fusion, Iron red, fusion |
Temperature Measurement | |
Temperature Measurement Ranges | -20℃~150℃ and 100℃~550℃ |
Temperature measurement accuracy | ± 2 ℃ or ± 2% reading (taking the maximum value between them) |
Interface | |
Output | UVC |
Environment | |
Operating Temperature | -20°C~+60°C |
Storage Temperature | -30°C~+65°C |
Humidity | ≤95% |
Power Supply | DC 5V-16V |
Power Consumption | ≤0.8 W |
Dimensions (without Lens) | 20mm × 20mm × 15.4mm |

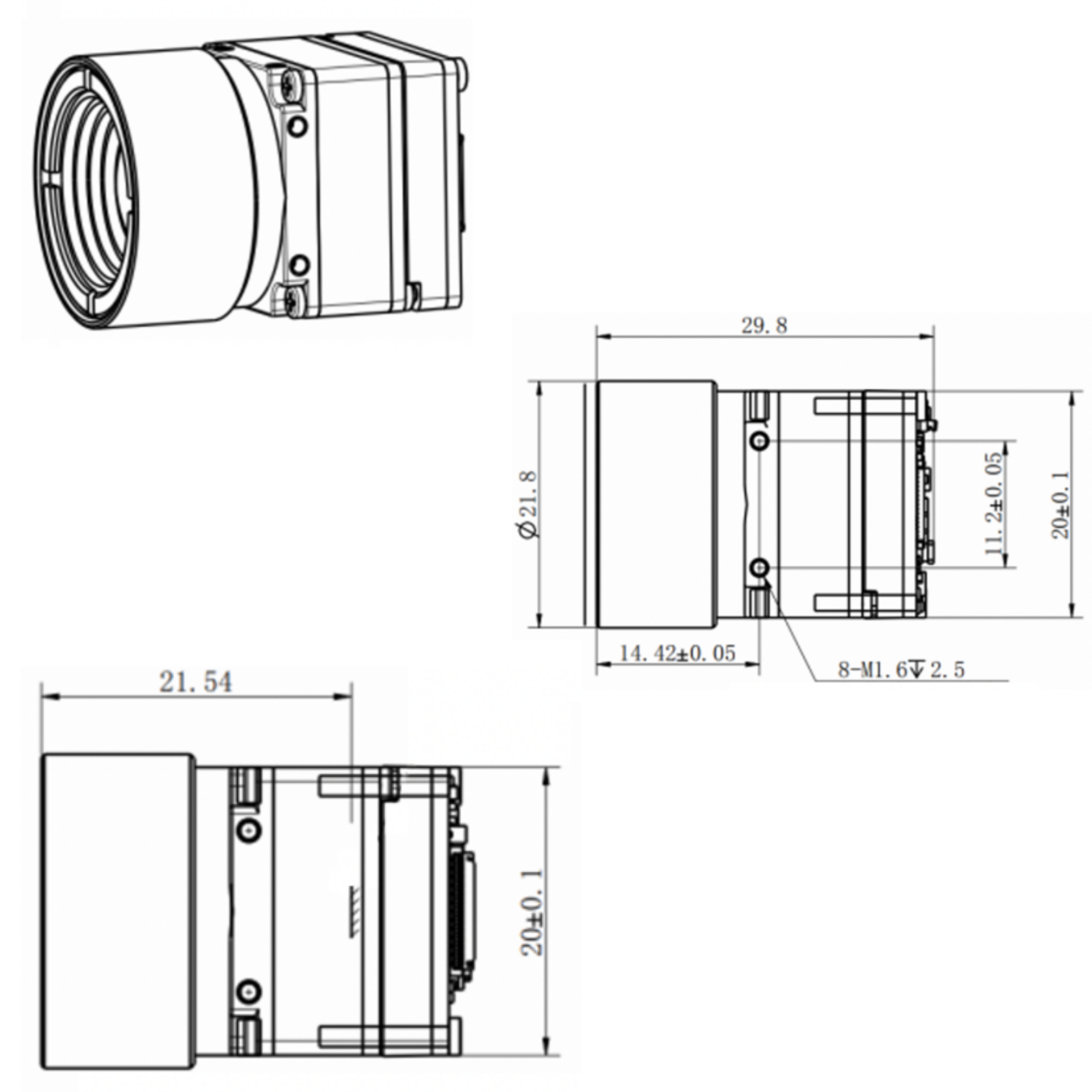

Dimensions (with Lens) | 20mm × 20mm × 29.8mm |
Weight | ≤24g |
Note: Details are subject to change without prior notice. Please refer to latest product datasheet.
