IPSD-FB6001-8225T-HB
| Quantity: | |
|---|---|
| PDF Export | |

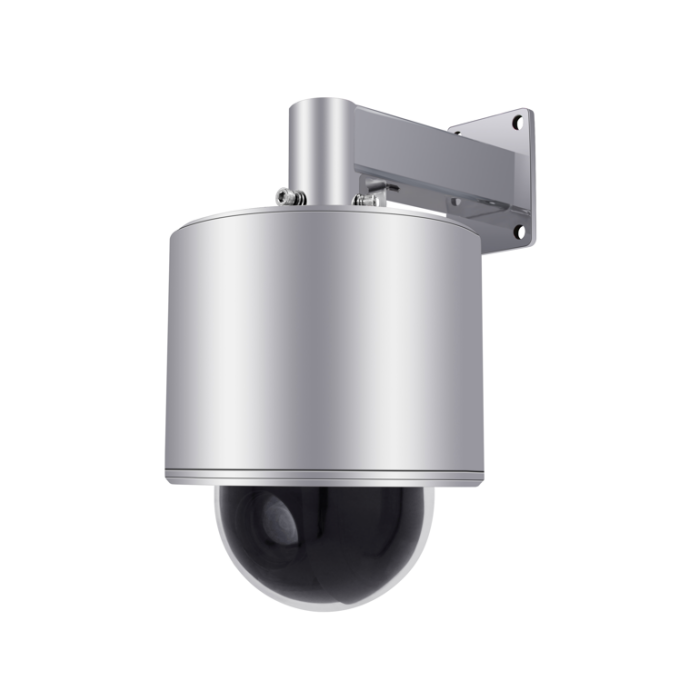

The camera features a high-strength polycarbonate transparent dome with hardening and anti-fog treatment. With light transmittance of up to 96%, the dome is designed to maintain optical clarity while providing a protective enclosure for the camera. Its stainless steel housing and IP68 protection make it relevant to demanding industrial installations.
Equipped with a 1/1.8-inch Progressive Scan CMOS sensor, the camera delivers 2MP Full HD video at 25/30fps. Its 6.4–160mm lens provides 25X optical zoom and 16X digital zoom, while 120dB WDR, BLC, HLC, and 3D DNR offer image adjustment options under varying lighting conditions.
The speed dome supports continuous 360° horizontal rotation, vertical movement from 0° to 90° with automatic flip, and 3D positioning. With 300 preset positions, eight cruise routes, four pattern scans, and scheduled tasks, it allows operators to configure repeatable monitoring across designated areas.
The camera lists Ex d IIC T6 Gb and Ex tD A21 IP68 T80℃ explosion-protection markings, with 304/316L stainless steel housing and IP68 ingress protection. It also supports 6000V lightning protection and surge protection for electrical system integration. Hazardous-area suitability must be confirmed against the applicable certification and installation requirements.
Explosion-proof cert: Ex d IIC T6 Gb / Ex tD A21 IP68 T80℃
H. 265, 2MP 1/1.8 " CMOS
25X Optical, focal length: 6.4-160mm
Starlight low illumination: 0.005lux (F1.5, AGC ON) color, 0.0001 lux(F1.5, AGC ON) B/W
Smart detection: Video Detection, Motion Detection, Perimeter Detection, Line Detection, Items Left and Lost, Audio Detection
Support BLC, HLC, 3D DNR, 120 dB WDR
Support horizontal 360° continuous rotation, 0-90° in vertical direction (auto flip)
Support 300 preset bits, 8 cruise paths, 3D positioning, scheduled tasks, one-click watch, and one-click cruise
Support 6000V lightning protection, surge prevention and surge wave prevention
Aviation grade high-strength polycarbonate explosion-proof transparent bubble, hardening, anti-fog treatment, penetration, light transmittance of up to 96%
Supports low code rate, low latency, ROI, and automatically adjust code rate according to the scene situation
304/316L stainless steel, suitable for chemical industry, acid and alkali and other strong corrosive environments
| Model | IPSD-FB6001-8225T-HB | ||
| Lens | Resolution | 2MP | |
| Sensor | 1/1.8" Progressive Scan CMOS | ||
| Focal length | 25X optical, 6.4-160mm, 16X digital zoom | ||
| Focus speed | 3.5s | ||
| Shutter | 1/25~1/100,000 s | ||
| Illuminance | 0.005lux (F1.5, AGC ON) color, 0.0001 lux(F1.5, AGC ON) B/W | ||
| Aperture | F1.5-F4.0 | ||
| FOV | 62°-3.5° | ||
| Min. Work Distance | 100mm(wide)-1500mm(tele) | ||
| Focus speed | 3.5s | ||
| WDR | 120dB | ||
| Image | Main Stream | 50Hz: 25fps(1920x1080,1280x960,1280x720); 60Hz: 30fps(1920x1080,1280x960,1280x720) | |
| Second Stream | 50Hz: 25fps(1280x720,640x480,352x288); 60Hz; 30fps(1280x720,640x480,352x288) | ||
| Third Stream | 50Hz: 25fps(704x576,640x480,352x288); 60Hz: 30fps(704x576,640x480,352x288) | ||
| Compression rate | 64Kbps~16Mbps | ||
| Audio compression | G.711A/G.711U/G.726/AAC | ||
| Code rate type | Fixed rate, variable bitrate | ||
| SVC | Support | ||
| ROI | Support | ||
| Image enhancement | BLC, HLC, 3D DNR | ||
| Image Settings | Rotation, saturation, brightness, contrast, sharpness, AGC, white balance is adjustable via the client or browser | ||
| Alarm trigger | Mobile detection, blocking alarm, abnormal | ||
| Smart functions | Video Detection, Motion Detection, Perimeter Detection, Line Detection, Items Left and Lost, Audio Detection | ||
| PTZ control | Rotation | Horizontal 360° continuous rotation, vertical 0° -90° (automatic flip) | |
| Horizontal speed | Horizontal key control speed: 0.1° -160° / s, the speed can be set, horizontal preset point speed: 160° / s | ||
| Vertical speed | Vertical key control speed: 0.1° -120° / s, the speed can be set, vertical preset point speed: 120° / s | ||
| 3D positioning | Support | ||
| Preset point | 300 | ||
| Automatic cruise | 8 lines, 32 preset points for each line | ||
| Pattern scan | 4 | ||
| Power memory | support | ||
| Watch function | Preset point / pattern / scan / cruise scan / automatic scan / vertical scan / random scan / frame scan /panoramic scan | ||
| Networks | Network, protocol | TCP/IP,MTU,HTTP,HTTPS,FTP,DHCP,DDNS,UPNP,RTSP,RTMP,NTP,SMTP,PPPOE | |
| Interface protocol | ONVIF(PROFILE S,PROFILE G) | ||
| Network storage | Micro SD/SDHC /SDXC(256G),NAS(NFS,SMB/CIFS | ||
| Preview channel | Up to 20ch at same time | ||
| User management | Up to 20 users | ||
| Browser | Windows XP, Win7, Win8, Win9, Win10, Win11, Microsoft edge | ||
| General Spec. | Audio | 1 in /1 out | |
| Alarm | 1 in /1 out | ||
| Lightning protection | 6000 V lightning protection, surge protection and surge protection | ||
| Communication | 1 RJ45 10 M / 100 M Adaptive Ethernet port | ||
| Temperature | -40℃~+60℃ | ||
| Power supply | DC12V | ||
| Housing material | 304/316L Stainless steel | ||
| Cable hole | G3 / 4 " inlet hole*1 | ||

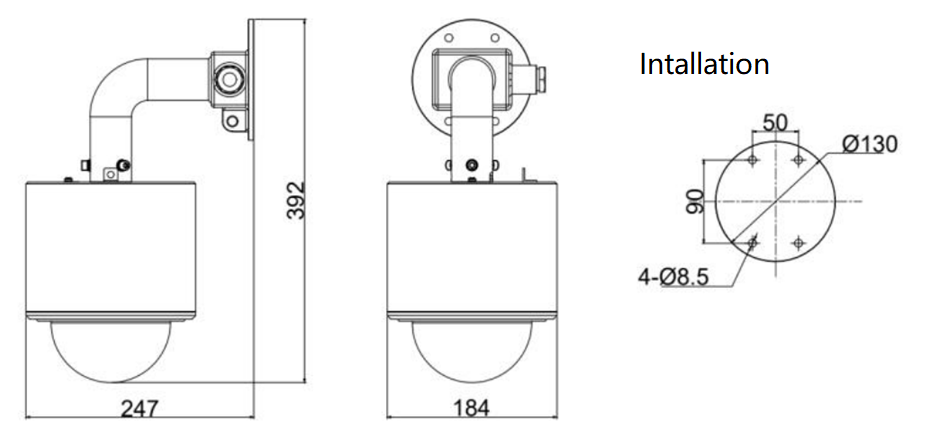

| Installation | Wall/ceiling mount | ||
| EX Cert. | Ex d IIC T6 Gb/Ex tD A21 IP68 T80℃ | ||
| IP protection | IP68 | ||
| Weight | ≤ 10kg | ||
