FV-TM125075ANT-IC
| Quantity: | |
|---|---|
| PDF Export | |
12μm VOx Uncooled Infrared Focal Plane Detector
1280*1024@30fps
NETD Sensitivity: < 40mK (@f/1.0, 30Hz, 300K)
Video Output: CVBS Output, PAL
Interface Support: ONVIF
Ethernet Protocol: TCP/IP, HTTP, RTSP
Temperature Measurement Range: -20 ℃ -150 ℃, 0℃-550℃, 400℃-1600℃
Image Adjustment: Brightness, Contrast, DDE, GMMA, etc.
UART for PTZ communication and controlling
Model | FV-TM125075ANT-IC |
Detector | |
Detector Type | Vanadium Oxide Uncooled Infrared Focal Plane Detector |
Effective Pixels | 1280*1024 |
Pixel Pitch | 12μm |
Spectral Range | 8-14μm |
Effective Frame Rate | 30fps |
Sensitivity (NETD) | ≤ 40mK (@f/1.0, 30Hz, 300K) |
Lens | |
Lens | 15-75mm 5x Optical Zoom Lens |
F Value | 0.9~1.3 |
Focusing Type | Auto Focus |
FOV | 28.7°X21.7°~5.9°X4.4° |
Focusing range | 15mm：5M—∞ / 75mm：10M—∞ |
Sealing | IP67(front of lens) |
Image | |
Digital Zoom | 1~ 8× |
Image Adjustment | Brightness, Contrast, DDE, GMMA, etc. |
Pseudo Color | 15 pseudo color modes such as white hot, black hot, red hot, desert yellow, sky, etc. |
Smart Functions | |
Basic Intelligence | Motion and Intrusion detection/Alarm/Solar protection, Lens Driving etc. |
Smart Intelligence (Optional) | Fire point detection, identification and tracking of human, vehicles and ships |
Video | |
Video Output | CVBS Output, PAL |
Network | |
Ethernet Protocol | TCP/IP, HTTP, RTSP |
Interface Support | ONVIF |
Video Coding | H.264, H.265 |
Interfaces | |
Power In | DC connector (5.5×2.1) |
Video Streaming | Ethernet (standard RJ45 connector) |
Communication | TTL (RS485 reserved) |
Temperature Measurement | |
Temperature Measurement Ranges | -20 ℃ -150 ℃, 0℃-550℃, 400℃-1600℃ |
Temperature Measurement Accuracy | ± 2 ℃ or ± 2% of the reading (whichever is greater) |
Environment | |
Working Temperature | -40℃ ~+60 ℃ |
Working Humidity | ≥ 95% (non-condensing) |
Storage Temperature | -50 ℃ ~ +70 ℃ |
Power | |
Power Supply | DC12V±10% |
Power Consumption | 5.9W MAX |
General | |
Weight | 704g |

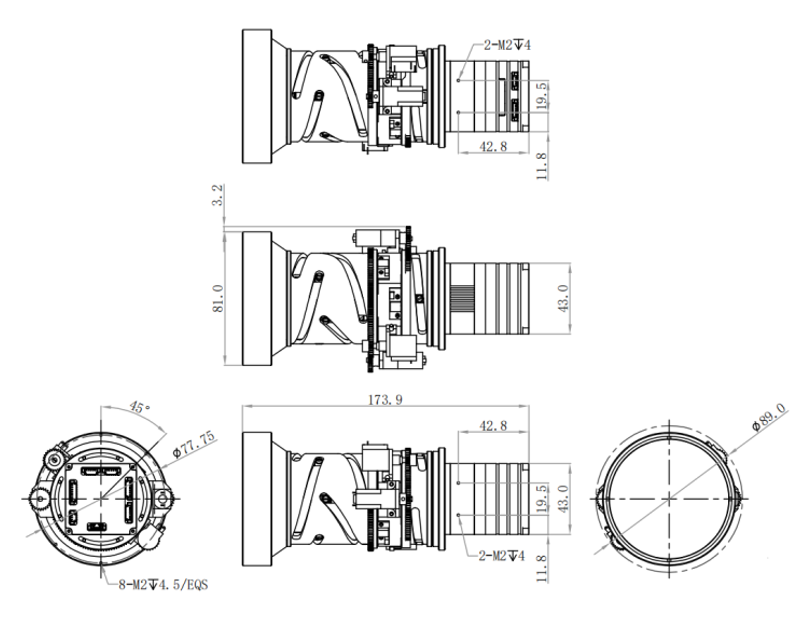

Size | Ф81*173.9 |
Note: Details are subject to change without prior notice. Please refer to latest product datasheet.
