FV-TM61009AND-CU
| Quantity: | |
|---|---|
| PDF Export | |

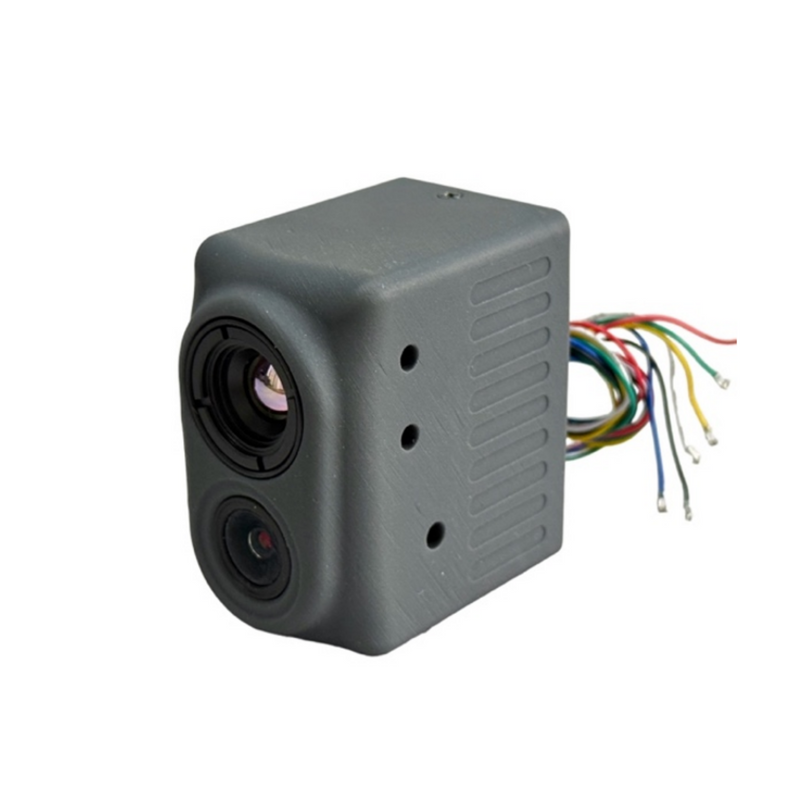

Dual-light Optical & Thermal Imaging Module
12μm VOx Uncooled Infrared Focal Plane Detector
640*512 @50fps
Thermal Lens:9.1mm F1.0; Optical Lens: 2.1mm F1.0
NETD Sensitivity: 40mK @F1.0, 25℃
CVBS Output
Analog Video: PAL
Mini Size: 30mm×42mm×50 mm
Ultralight: ≤50g
Model | FV-TM61009AND-CU |
Thermal Module | |
Detector Type | Vanadium Oxide Uncooled Infrared Focal Plane Detector |
Effective Pixels | 640*512 |
Pixel Pitch | 12μm |
Spectral Range | 8-14μm |
Effective Frame Rate | 50fps |
Sensitivity (NETD) | 40mK (25°C, F# = 1.0) |
Thermal Imaging Lens | |
Focal Length | 9.1mm |
Aperture | F1.0 |
Focusing Type | Manual focus |
Min. Focusing Distance | 2m |
FOV | 9.1mm: 48.3°(H)×38.6°(V) |
Thermal Image | |
Pseudo Color | White heat, black heat, fusion, iron red, fusion |
Optical Module | |
Image Sensor | 1/3” CMOS |
FOV | 110°*74° |
Focal Length | 2.1mm |
Aperture | F1.0 |
Clarity | 1500TVL |
Interface | |
Output | CVBS |
Environment | |
Operating Temperature | -20°C~+60°C |
Storage Temperature | -30°C~+65°C |
Humidity | ≤95% |
General | |
Power Supply | DC 5V-16V |
Power Consumption | ≤0.8W |
Signal system | PAL:/1/50-100,00,NTSC:1/60-100,00 |

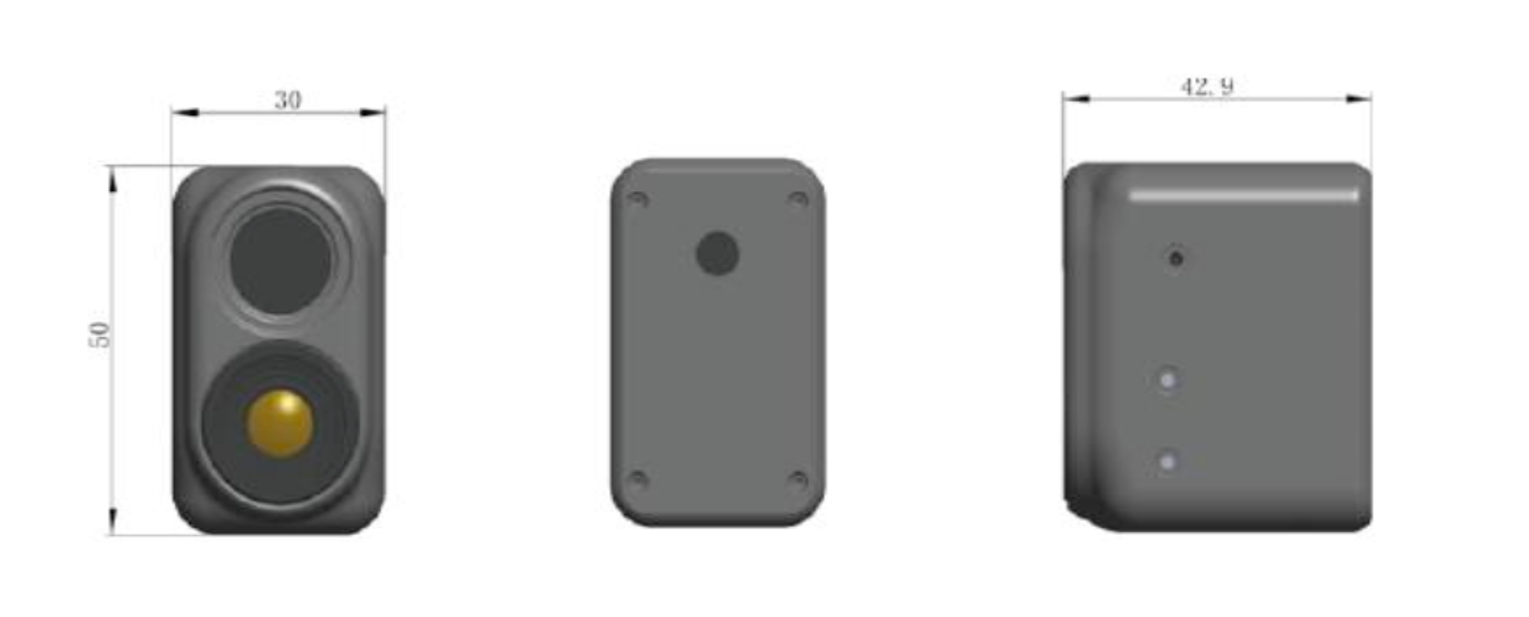

Dimensions | 30mm × 42mm x 50mm |
Weight | ≤50g |
Note: Details are subject to change without prior notice. Please refer to latest product datasheet.
