FV-TM12NT-U
| Quantity: | |
|---|---|
| PDF Export | |

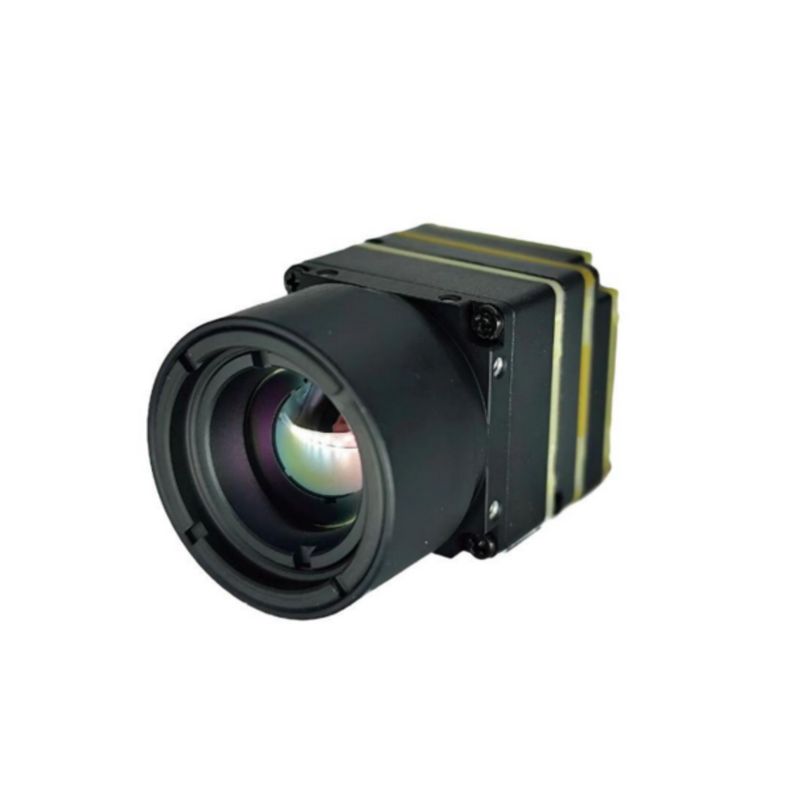

The USB infrared movement is a core component designed specifically for various devices that require infrared thermal imaging function. It supports HDMI and USB high-definition digital video output, center point temperature measurement, and outputs the maximum temperature, minimum temperature, and average temperature of the output area. It is also equipped with UART communication interface. This movement integrates advanced infrared detection technology and image processing algorithms, which can be widely used in many fields such as medical health, smart furniture, industrial temperature measurement, etc. It helps users quickly and accurately obtain the thermal information of target objects, so as to perform state monitoring, fault diagnosis, target recognition and other operations.
Thermal camera | |
Detector | Uncooled Vanadium Oxide Microcalorimeter |
Resolution | 1280×1024 |
Pixel spacing | 12μm |
Response band | 8～14μm |
NETD@25℃ | ≤40mk（@25°C,F#=1.0） |
FPS | ≤50Hz |
Image | |
Pseudo-color | Pseudo color modes such as white hot, black hot, red hot, desert yellow, sky, etc |
Image setting | manual adjustment |
Image processing | Shutterless |
Digital filtering for noise reduction | |
Non-uniformity correction | |
Interface | |
Interface board | USB3.0 |
Digital output | HDMI/UVC |
communication interface | UART（TTL 3.3V） |
Power supply | |
Power supply | 5~20V |
Power supply | 5V |
Power consumption | ≤1.55W @25℃ |
Physical spec | |
Weight (without lens | ≤62g |

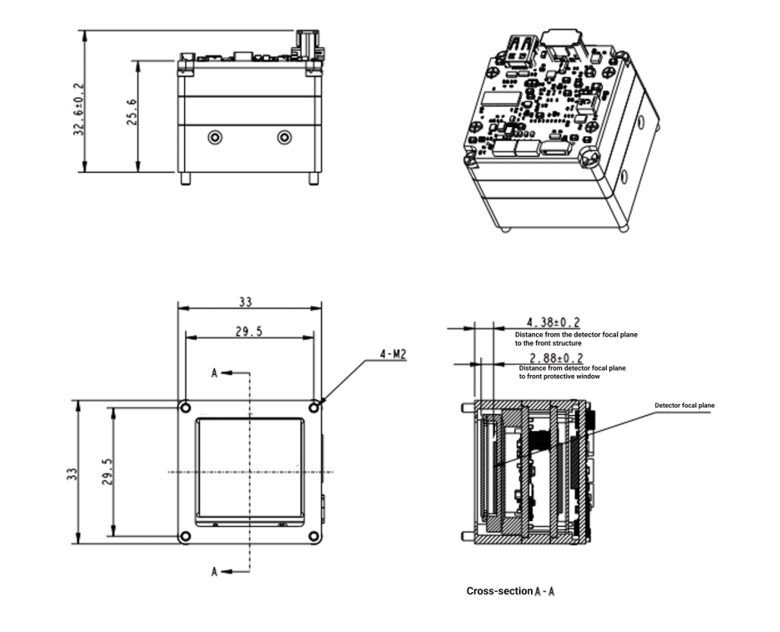

Dimensions (without lens) | 33mm×33mm×32.6mm±0.2mm |
Temperature measurement | |
Temp. measurement | -20℃~100℃ |
Temperature accuracy | ±3℃ or ±3% |
Center point temperature measurement | Support |
Environment spec | |
Operating Temperature | -40℃~+60℃ |
Storage temperature | -50℃~+70℃ |
Humidity | 5%～95%，No condensation |
Note: Details are subject to change without prior notice. Please refer to latest product datasheet.
