Support H.265/H.264, 2MP
Support 42X optical zoom, 16X digital zoom
Precision stepper motor drive, Smooth operation, sensitive response, accurate positioning
IR 200m
Support WDR, 3D DNR, BLC, HLC, area mask, defog
Support TF card (256G)
Support three Stream, heartbeat
Smart functions: Video Detection, Motion Detection, etc.
Support ONVIF, connect to main VMS platforms
Support BMP, JPG snapshot
Support IP68

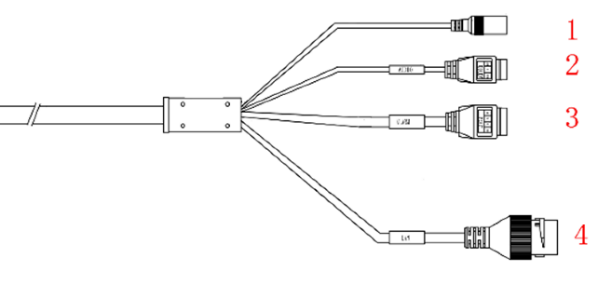

1.Power supply
2.Audio in/out
3.Alarm in/out
4.RJ45 10M/100M self-adaptive
| Model | IPSD-88242T-HIB | ||
| Camera | Resolution | 2MP, 1920×1080 | |
| Sensor | 1/2.8’’ COMS | ||
| Optical Zoom | 42X Optical zoom (7.3-308mm) | ||
| Digital Zoom | 16X | ||
| Low Illumination | 0.005Lux @(F1.5,AGC ON)color, 0.0005Lux @(F1.5,AGC ON)B/W | ||
| WDR | 120dB | ||
| Zoom Speed | ≈3.5S | ||
| Compression | H.264/H.265 | ||
| D/N Shift | IR-CUT, Auto, Color, B/W, Timing, Threshold Control, Rotate | ||
| BLC | Off/ BLC / HLC /WDR/Defog | ||
| Shutter | 1/25 - 1/100,000s | ||
| Aperture | F1.8-F6.5 | ||
| DNR | 2D / 3D | ||
| White Balance | Auto/Manual/Outdoor/Indoor/Sodium Lamp/White Lamp/One time Tracking | ||
| MOD | 10mm-1500mm (Wide-Tele.) | ||
| View Angle | Horizontal: 42°-1° (Wide-Tele)) | ||
| Image | Main Stream | 50Hz: 25fps(1920x1080,1280x960,1280x720) 50Hz: 50fps(1920x1080,1280x960,1280x720) | |
| Second Stream | 50Hz: 25fps(1280x720,640x480,352x288) 50Hz: 50fps(1920x1080,1280x960,1280x720) | ||
| Third Stream | 50Hz: 25fps(704x576,640x480,352x288) 50Hz: 50fps(1920x1080,1280x960,1280x720) | ||
| Image Adjustment | Saturation, Brightness, Contrast, Sharpness, Hue Adjustment | ||
| Stabilisation | electrically image stabilization | ||
| Image Setting | Privacy Mask, Anti Flicker, Optical Defog, Corridor Mode, Mirror, Rotate, BLC, HLC, Defect Point Compensation, Exposure Compensation, Power off Memory | ||
| Smart Function | Motion Detection, Area Intrusion, Line Crossing, video mask, Distortion Correction, Power Off memory, Network off Recovery | ||
| Privacy mask | 4 zones | ||
| IR distance | 500m | ||
| General | Defect point compensation, synchronized scanning, 3D Position, 4*ROI setting | ||
| PTZ Para | Rotation Scope | Level: 0°-360° Vertical:-10~90° | |
| Presetting Speed | 210°/S | ||
| Manual | 0.1°~131°/S | ||
| Scanning | 1.4°~131°/S | ||
| Presetting | 255 points | ||
| Wiper | 30°~60°/s adjustable | ||
| Heater | Built-in heater | ||
| Others | Automatic flip, return function, boot action and so on | ||
| External Port | Alarm In | 1ch | |
| Alarm Out | 1ch | ||
| Audio In | 1ch | ||
| Audio Out | 1ch | ||
| Network | 10/100Mself-adaptive RJ45 | ||
| Protocol | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, SMTP, SNMP, UPnP and PPPoE, SIP, IPv6 | ||
| Access Protocol | ONVIF, Active registration | ||
| Display | Lens zooming times, date/time display | ||
| General | Password protection, heartbeat, muti-user access control | ||
| Output Bitrate | 32 Kbps~16Mbps | ||
| Audio Compr. | G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM | ||
| General | Storage | Local storage TF card 256G (class10) | |
| IP | IP68/IK10 | ||
| Temperature | -40℃~+70℃ | ||
| Power Supply | AC24V 3A 60Hz/50Hz | ||
| Consumption | 8W-45W | ||
| Weight | 8kg | ||
