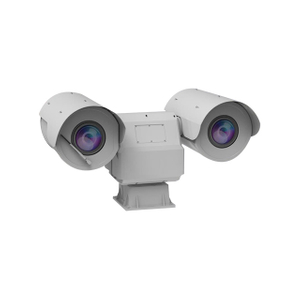

IPTZ-T410-Z238-HLB
| Quantity: | |
|---|---|
| PDF Export | |
Support H.265/H.264, 2MP, 1920×1080
1/1.8" SONY CMOS, low illumination
Optical zoom 38X, Digital zoom 16X
Support laser light 500m
High precision worm-gear transmission and stepper motor driving, self-lock after power failure, strong wind resistance, high stability
Support AWB, BLC, HLC
Support a variety of lenses, presetting function, zoom self-adaption, auto adjust rotation speed according to zoom ratio.
Worm-gear design ,maximum horizontal speed 100°/s.
High accurate repeat positioning ±0.1° .
Anti-corrosion, All-weather protection design, IP66
| Model | IPTZ-T410-Z238-HLB | ||
| Lens | Sensor | 1/1.8" Progressive Scan CMOS | |
| Resolution | 2MP | ||
| Aperture | F1.5~F4.8 | ||
| Min. Illumination | Color:0.0005 Lux @(F1.5,AGC ON); B/W:0.0001Lux @(F1.5,AGC ON) | ||
| White balance | Manual/auto/auto tracking/indoor/outdoor/white lamp/Sodium lamp white balance | ||
| Optical zoom | 38X optical，6.5-247mm, 16X digital | ||
| Shutter | 1/25-1/100,000s；support slow shutter | ||
| FOV | 64.8°-1.8°（wide-tele.） | ||
| Min. Distance | 100mm-1500mm（wide-tele.） | ||
| Gain control | Manual/Auto | ||
| BLC | support | ||
| Defog | support | ||
| ICR | Support | ||
| Auto-focus | support | ||
| Compression | H.265/H.264 | ||
| Speed self-adaptive | Support | ||
| Smart functions | Video Detection, Motion Detection, Perimeter Detection, Line Detection, Items Left and Lost, Audio Detection | ||
| Laster | Distance | 500M | |
| Wavelength | 808nm | ||
| Zoom range | 1.5~60° | ||
| Zoom control | Linkage to lens zoom/manual | ||
| Laser light | Linkage to camera/manual | ||
| Housing | Window | Integrative three-window design, infrared high-efficiency antireflective optical glass, transmittance >98% | |
| Wiper | Good weather resistance, easy to replace. | ||
| Auto temp. control range | Built-in heating and refrigeration control elements | ||
| Heating turn on: 8°±5°, turn off: 20°±5° | |||
| Fan turn on: 37°±5°, turn off: 20°±5° | |||
| Max. Load | >10kg | ||
| Tilt Angle | +40°～-90° | ||
| Pan Angle | 360° continuous rotation | ||
| Pan Speed | 0.01～100°/S | ||
| Tilt Speed | 0.01～40°/S | ||
| Preset | 200 | ||
| Cruise | Support 8 PCS | ||
| Scan Model | Cruise scan/auto scan | ||
| Zero Correction | support | ||
| RT angel feedback | Support real time angel feedback and search angel feedback | ||
| Angel tracking | Linkage to AIS or radar angel tracking control | ||
| Networks | Storage | Micro SD/SDHC /SDXC(256G) offline local storage, NAS, NFS, SMB/CIFS | |
| Internet Protocol | TCP/IP,MTU,HTTP,HTTPS,FTP,DHCP,DDNS,UPNP,RTSP,RTMP,NTP,SMTP,PPPOE | ||
| Protocol | ONVIF | ||
| General Spec. | Power | AC24V±25%, 50/60Hz; DC24V±10%, 80W, full operation power consumption≤100W | |
| interface | 1 line, 10M/100M self-adaptive Ethernet，1 line AC24V/DC24V, (Optional) RS422/485 and BNC | ||
| Temperature | -40℃～+65℃ | ||
| Humidity | <90%RH | ||
| Waterproof | IP66 | ||
| Weight | ≤12kg | ||
