IPTZ-T978-Z248XT25
| Quantity: | |
|---|---|
| PDF Export | |

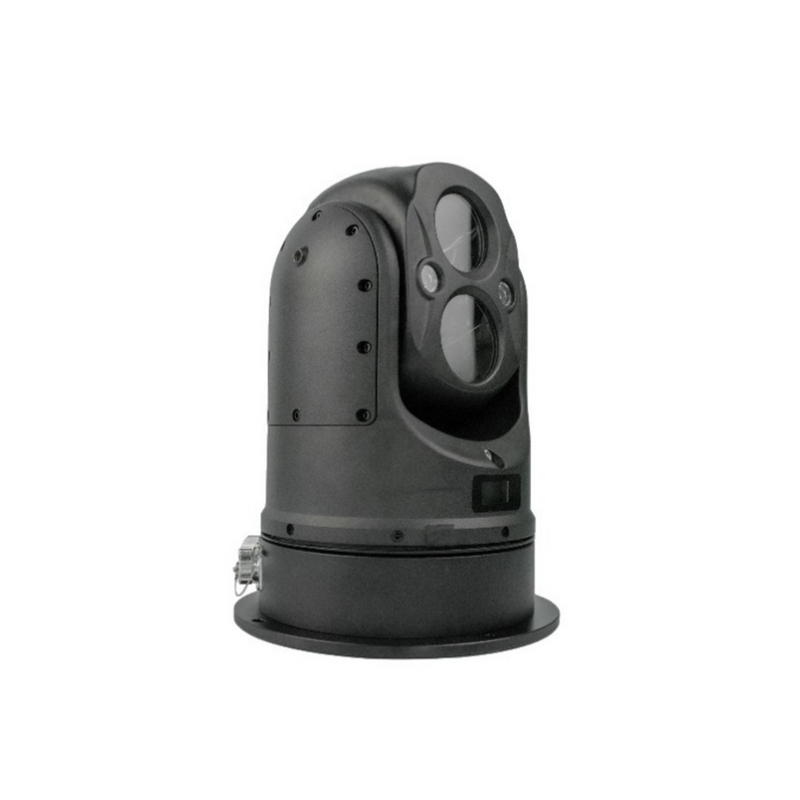

1/2.8 48x HD visible light, 640×512 pixels 25mm thermal imaging dual spectrum network camera.
1km laser ranging (optional).
Horizontal and tilt dual-axis gyro mechanical image stabilization.
The fire detection algorithm based on deep learning can provide real-time warning and upload pictures.
Continuously rotate 360° horizontally, and rotate -90°～+90° in pitch.
The fastest speed is 400°/sec.
The steady-state accuracy is 0.1°.
Support smart scan of Apple Peel.
Automatic induction wiper (optional).
Remotely power off and restart.
3D positioning zoom.
255 preset positions.
Support H.265/H.264/MJPEG video compression algorithm.
Support ONVIF protocol.
All metal structure, anti-fog, waterproof, anti-salt fog, anti-vibration, protection level: IP67, lightning protection level: 6KV.
The circuit board can be disassembled and assembled, which is convenient for troubleshooting and maintenance.
Stainless steel handle and level meter, easy to install and construct.
Key function: dual-axis gyro image stabilization + multi-sensor
The dual-axis gyro image stabilization photoelectric turntable is a product suitable for ships and high-altitude observations. It has a built-in advanced attitude sensor and automatically adjusts the camera attitude, so that the monitoring picture is not affected by environmental turbulence.
Product innovation points:
1. Horizontal and tilt dual-axis gyro image stabilization + image stabilization algorithm, so that the monitoring picture is not affected by environmental bumps.
2. Fire point and special target detection algorithm based on deep learning.
3. Intelligent scanning of apple peel, detection of fire in the whole area and warning
4. Optical Defog + Electrical Defog.
5. Automatic induction wiper (optional).
6. Built-in spirit level and handle to provide convenience for construction.
Model | IPTZ-T978-Z248XT75 | |
Thermal Module | Sensor | Vanadium Oxide Uncooled Infrared Focal Plane Detector |
Effective Pixels | 640×512 | |
Focal Length | 25mm | |
Aperture | F1.0 | |
Frame rate | 25fps | |
Optical Module | Sensor | 1/2.8″progressive scan CMOS image sensor |
Effective pixels | 1920×1080P 25fps 2MP | |
Illumination | Starlight level ultra-low illuminance, no fill light color 0.0005LUX, black and white 0.00001LUX | |
Auto-control | Automatic white balance, automatic gain, automatic exposure | |
SNR | ≥55dB | |
WDR | 120dB | |
Light suppression | ON/OFF | |
Backlight compensation | ON/OFF | |
Noise reduction | 3D noise reduction | |
Electronic shutter | 1/25～1/100000s | |
Day and night mode | Filter switching | |
Focus mode | automatic/manual | |
Focal length | 7-336mm，48x optical | |
FOV | 42-0.9° | |
Aperture | F1.8~F6.5 | |
PTZ | Horizontal range | 360° continuous rotation |
Horizontal speed | 0.05°～400°/s | |
Pitch range | -90°～90°rotation (without wiper), -60°～90°rotation (with wiper) | |
Vertical speed | 0.05°～200°/s | |
Proportional zoom | Support | |
255 preset points | 255(expandable to 5000） | |
Cruise scan | 6 | |
Automatic induction wiper | optional | |
Gyro image stabilization | dual axis | |
Steady state accuracy | 0.1° | |
Maximum carrier following speed | 100°/s | |
Network | Video compression | H.264/H.265 |
Power-off memory | Support | |
Network interface | RJ45 10Base-T/100Base-TX | |
Maximum image size | 1920×1080 | |
Frame rate | 25fps | |
Interface protocol | ONVIF、GB/T 28181 | |
Network protocol | IPv4, HTTP, FTP, RTSP,DNS, NTP, RTP, TCP,UDP, IGMP, ICMP, ARP | |
Three streams | Support | |
Security | Password protection, multi-user access control | |
General | Audio | Optional (422 interface does not support audio input and output) |
Alarm | 1Way | |
External data interface | RS422 | |
Laser ranging | Optional | |
Laser Range | 1000m | |
Laser ranging accuracy | 1m | |
Power | DC24V±15%,5A | |
Power Consumption | Maximum power 60W | |
IP Rating | IP67 | |
Electromagnetic compatibility | lightning protection, anti-salt fog and anti-surge protection, in line with GB/T17626.5 6KV standard | |
Working temperature | -40℃～70 ℃ | |
Working humidity | Humidity is less than 90% | |

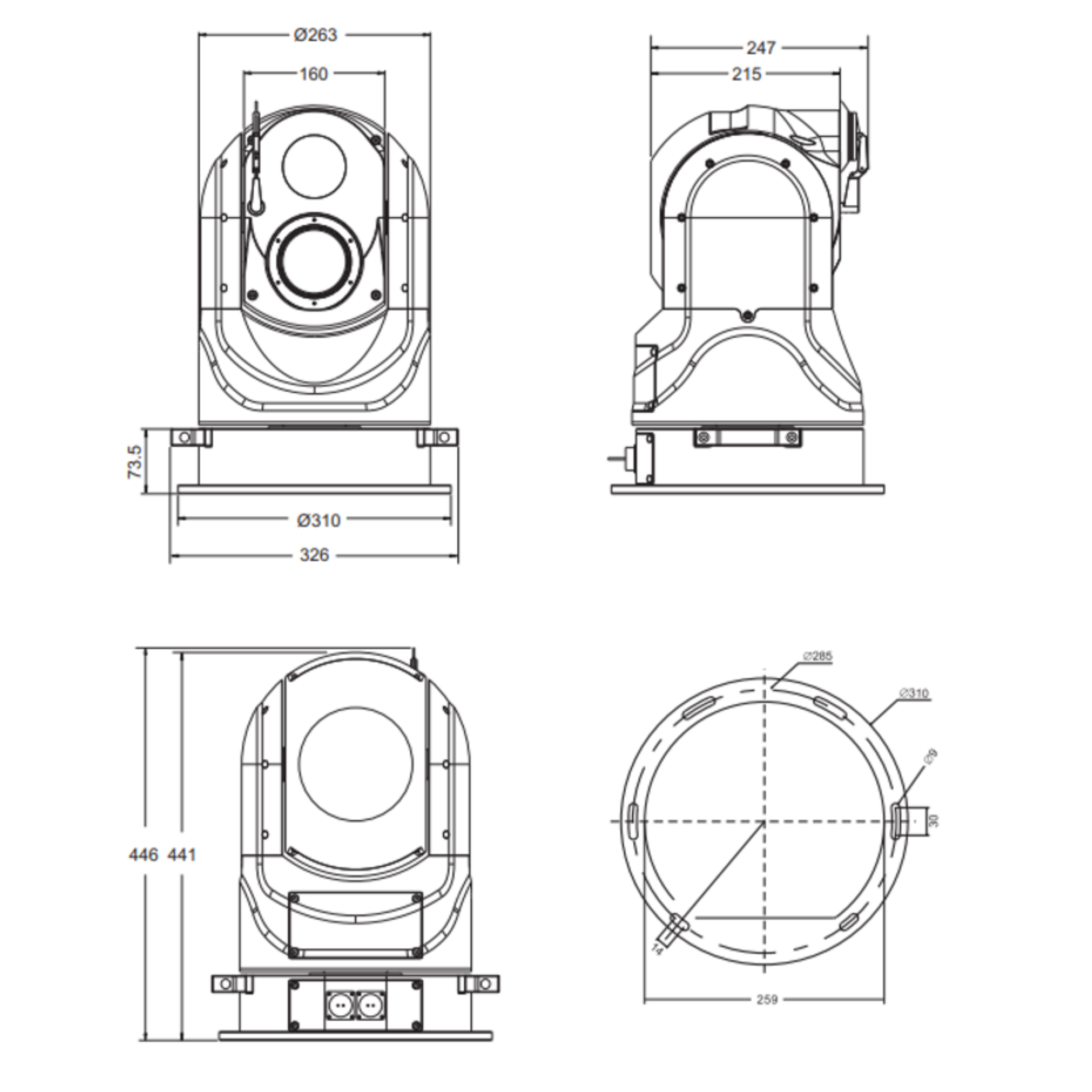

Dimension | 446mm×326mm×247mm(including wiper) | |
Weight | 15KG | |
Note: Details are subject to change without prior notice. Please refer to latest product datasheet.
