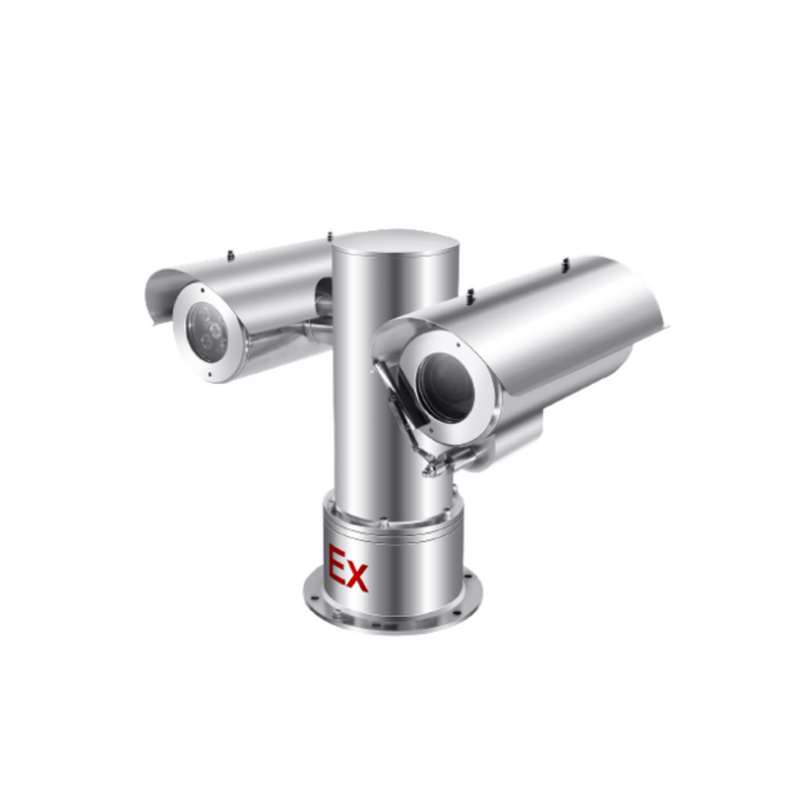

IPC-FB8000-8440WT-T640
| Quantity: | |
|---|---|
| PDF Export | |
Support 8 million pixel (3840 × 2160) visible real-time video output, support 2K and 1080P videos
Explosion-proof Cert: Ex d IIC T6 Gb / Ex tD A21 IP68 T80℃
H. 265, 4MP 1/1.8 " CMOS
40X Optical, focal length: 6.4-256mm, 16X Digital zoom
Thermal: 640*512, focal length 50mm, Vanadium Oxide Uncooled Infrared Focal Plane Detector
Starlight low illumination: Color:0.0005 Lux @(F1.5,AGC ON); B/W:0.0001Lux @(F1.5,AGC ON)
Smart detection: Video Detection, Motion Detection, Perimeter Detection, Line Detection, Items Left and Lost, Audio Detection
Supports BLC, HLC, 3D DNR, 120 dB WDR
Supports low code rate, low latency, ROI, and automatically adjust code rate according to the scene situation
Supports power supply AC85V～260V, DC24V 3A options
Support 500 presets, power-off memory, automatic cruise and other functions
Support 360 ° horizontal rotation, ± 90 ° in vertical, without monitoring blind area
Intelligent wiper adopts automobile wiper blade with good weather resistance and easy for replacement
Worm gear drive structure with precision stepping motor, sensitive response and stable operation
Built in semiconductor controllable temperature components for automatic heating and heat dissipation
Use special explosion-proof glass with nanotechnology, high optical pass rate, non-adhesive water, non-sticky oil and non-dust
304/316L stainless steel, suitable for chemical industry, acid and alkali and other strong corrosive environments
Applicable to environments of IIA, IIB and IIC with combustible gases, T1-T6 group 1 and 2 zones with combustible gas or explosive mixture of vapor, and T1-T6 groups 21 and 22 zones containing combustible dust mixture. Such as: petroleum, chemical industry, mine, military industry, medicine, oil depot, ship, drilling platform, gas station, gun production, grain processing and storage, etc.
Model | IPC-FB8000-8440WT-T640 | |
Optical Module | Resolution | 4MP |
Sensor | 1/1.8" Progressive Scan CMOS | |
Focal length | 40X optical, 6.4-256mm, 16X digital | |
Shutter | 1/25~1/100,000 s | |
Illuminance | Color:0.0005 Lux @(F1.5,AGC ON); B/W:0.0001Lux @(F1.5,AGC ON) | |
Aperture | F1.5-F4.8 | |
FOV | 64.8°-1.7°（wide-tele.） | |
Min. working distance | 100mm-1500mm (wide-tele) | |
Zoom speed | 3.5s | |
WDR | 120dB | |
Thermal Module | Detector | Vanadium Oxide Uncooled Infrared Focal Plane Detector |
Resolution | 640*512 | |
Pixel Interval | 12μm | |
Response Waveband | 8 - 14 μm | |
NETD | 40mK (25°C, F# = 1.0) | |
Focal Length | 50mm | |
Focusing Type | Manual focus | |
Pseudo Color | White heat, black heat, fusion, iron red, fusion, etc. | |
FOV | 11.25° (D) x 8.78° (H) x 7.02° (V) | |
Min. Focusing Distance | 8m | |
Effective Frame Rate | 50fps | |
Image | Compression rate | 32Kbps~32Mbps |
Audio compression | G.711A/G.711U/G.726/AAC | |
Code rate type | Fixed rate, variable bitrate | |
SVC | Support | |
ROI | Support | |
Image enhancement | BLC, HLC, 3D DNR | |
Image Settings | Rotation, saturation, brightness, contrast, sharpness, AGC, white balance is adjustable via the client or browser | |
Alarm trigger | Mobile detection, blocking alarm, abnormal | |
Smart functions | Video Detection, Motion Detection, Perimeter Detection, Line Detection, Items Left and Lost, Audio Detection | |
Networks | General functions | Mirror mode, heartbeat, password protection, watermark, IP address filter, pixel calculator |
Linkage mode | Upload FTP, upload center, mail, video, grab pictures | |
Network, protocol | TCP/IP,MTU,HTTP,HTTPS,FTP,DHCP,DDNS,UPNP,RTSP,RTMP,NTP,SMTP,PPPOE | |
Interface protocol | ONVIF(PROFILE S,PROFILE G) | |
Network storage | Micro SD/SDHC /SDXC(256G),NAS(NFS,SMB/CIFS | |
Preview channel | Up to 20ch at same time | |
User management | Up to 20 users | |
Browser | Windows XP, Win7, Win8, Win9, Win10, Win11, Microsoft edge | |
PTZ Control | Rotation | Horizontal: 360° continuous rotation; vertical: ± 90° |
Rotation speed | Horizontal: 0.1° -40° / s, vertical: 0.1° -40° / s | |
Preset point | 500 points | |
Preposition accuracy | ±0.1° | |
Automatic cruise | 4 line, 16 preset points in each line | |
Watch function | support | |
Double speed limit | support | |
Power memory | support | |
General Spec. | Communication | 1 RJ45 10 M / 100 M Adaptive Ethernet port |
Temperature | -40℃~+60℃ | |
Power supply | AC85V ~ 260V / DC 12V | |
Housing material | 304/316L Stainless steel | |
Cable hole | G3 / 4 " inlet hole*1 | |
Wiper | Support | |

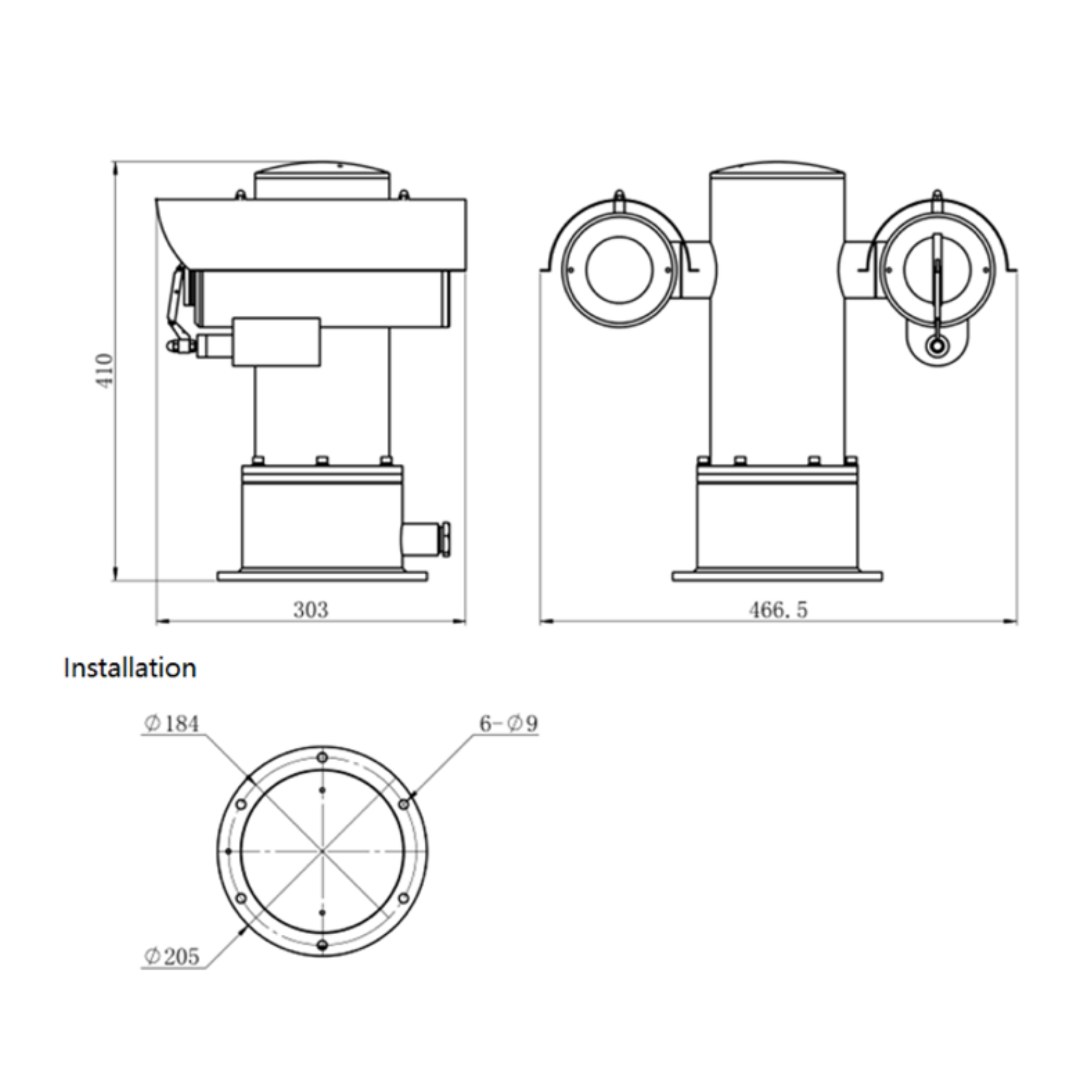

Installation | Multiple installation type based on the application environment | |
EX Cert. | Ex d IIC T6 Gb/Ex tD A21 IP68 T80℃ | |
IP protection | IP68 | |
Weight | ≤ 29kg | |
Note: Details are subject to change without prior notice. Please refer to latest product datasheet.
