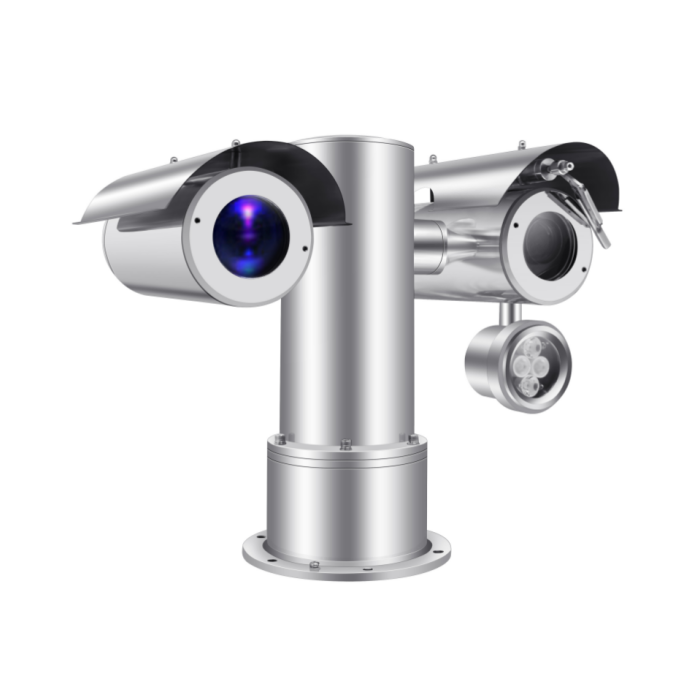

IPC-FB8600C-8238T-GD
| Quantity: | |
|---|---|
| PDF Export | |
Explosion-proof cert: Ex d IIC T6 Gb / Ex tD A21 IP68 T80℃
H. 265, 2MP 1/1.8 " CMOS
38X Optical, focal length: 6.5-247mm, 16X Digital zoom
Starlight low illumination: Color:0.0005 Lux @(F1.5,AGC ON); B/W:0.0001Lux @(F1.5,AGC ON)
Special designed laser methane telemetry module and technology
Monitoring target: methane gas (CH4)
Monitoring distance: 150 meters
Detection range: 0-99999 ppm.m
High sensitivity: the detection accuracy is up to 100ppm.m
Detection error: ± 100ppm (0~1000ppm · m); true ± 10% (1000~99999ppm · m)
Response time: 0.1s
Stable and reliable: no need for regular calibration, long service life
Efficient monitoring: long distance, high sensitivity, fast response, wide coverage, strong anti-interference ability, is not affected by other gas cross interference
Smart detection: Video Detection, Motion Detection, Perimeter Detection, Line Detection, Items Left and Lost, Audio Detection
Supports BLC, HLC, 3D DNR, 120 dB WDR
Supports low code rate, low latency, ROI, and automatically adjust code rate according to the scene situation
Supports power supply AC85V～260V, DC24V 3A options
Support 255 presets, power-off memory, automatic cruise and other functions
Support 360 ° horizontal rotation, ± 90 ° in vertical, without monitoring blind area
Intelligent wiper adopts automobile wiper blade with good weather resistance and easy for replacement
Worm gear drive structure with precision stepping motor, sensitive response and stable operation
Built in semiconductor controllable temperature components for automatic heating and heat dissipation
Use special explosion-proof glass with nanotechnology, high optical pass rate, non-adhesive water, non-sticky oil and non-dust
304/316L stainless steel, suitable for chemical industry, acid and alkali and other strong corrosive environments
| Model | IPC-FB8000-8238T-T384 | ||
| Methane detector | Methane Detection | ||
| Monitoring target | Gas containing methane composition (CH4) | ||
| Detection principle | Tunable Laser Absorption Spectroscopy (TDLAS) | ||
| Detection of the laser power consumption | 2W | ||
| Detection of laser safety | Class I laser, human eye safety | ||
| Monitoring distance | ≤150m under normal conditions | ||
| Scope of detection | 0-99999 ppm.m | ||
| Sensitivity | 100 ppm.m | ||
| Detection error | Within 10% | ||
| Response time | ≤0.1s | ||
| Mode of signal output | RS485（MODBUS） | ||
| Stable and reliable | No regular calibration, long service life | ||
| Efficient monitoring | It can realize large-area, long-distance monitoring, and has strong anti-interference ability | ||
| Camera | Resolution | 2MP | |
| Sensor | 1/1.8" Progressive Scan CMOS | ||
| Focal length | 38X optical,6.5-247mm, 16X digital | ||
| Shutter | 1/25~1/100,000 s | ||
| Illuminance | Color:0.0005 Lux @(F1.5,AGC ON); B/W:0.0001Lux @(F1.5,AGC ON) | ||
| Aperture | 150m | ||
| Aperture | F1.5-F4.8 | ||
| FOV | 64.8°-1.8°（wide-tele.） | ||
| Min. working distance | 100mm-1500mm (wide-tele) | ||
| Zoom speed | 3.5s | ||
| WDR | 120dB | ||
| Main Stream | 50Hz: 25fps(1920x1080,1280x960,1280x720); 60Hz: 30fps(1920x1080,1280x960,1280x720) | ||
| Second Stream | 50Hz: 25fps(1280x720,640x480,352x288); 60Hz; 30fps(1280x720,640x480,352x288) | ||
| Third Stream | 50Hz: 25fps(704x576,640x480,352x288); 60Hz: 30fps(704x576,640x480,352x288) | ||
| Compression rate | 64Kbps~16Mbps | ||
| Audio compression | G.711A/G.711U/G.726/AAC | ||
| Code rate type | Fixed rate, variable bitrate | ||
| SVC | Support | ||
| ROI | Support | ||
| Image enhancement | BLC, HLC, 3D DNR | ||
| Image Settings | Rotation, saturation, brightness, contrast, sharpness, AGC, white balance is adjustable via the client or browser | ||
| Alarm trigger | Mobile detection, blocking alarm, abnormal | ||
| Smart functions | Video Detection, Motion Detection, Perimeter Detection, Line Detection, Items Left and Lost, Audio Detection | ||
| General functions | Mirror mode, heartbeat, password protection, watermark, IP address filter, pixel calculator | ||
| Linkage mode | Upload FTP, upload center, mail, video, grab pictures | ||
| Network, protocol | TCP/IP,MTU,HTTP,HTTPS,FTP,DHCP,DDNS,UPNP,RTSP,RTMP,NTP,SMTP,PPPOE | ||
| Interface protocol | ONVIF(PROFILE S,PROFILE G) | ||
| Network storage | Micro SD/SDHC /SDXC(256G),NAS(NFS,SMB/CIFS | ||
| Preview channel | Up to 20ch at same time | ||
| User management | Up to 20 users | ||
| Browser | Windows XP, Win7, Win8, Win9, Win10, Win11, Microsoft edge | ||
| PTZ control | Rotation | Horizontal: 360° continuous rotation; vertical: ± 90° | |
| Rotation speed | Horizontal: 0.1° -40° / s, vertical: 0.1° -40° / s | ||
| Preset point | 255 points | ||
| Preposition accuracy | ±0.1° | ||
| Automatic cruise | 4 line, 16 preset points in each line | ||
| Watch function | support | ||
| Double speed limit | support | ||
| Power memory | support | ||
| Wiper | Support | ||
| PTZ protocol | PELCO－D | ||
| General spec. | Communication | 1 RJ45 10 M / 100 M Adaptive Ethernet port | |
| Temperature | -40℃~+60℃ | ||
| Power supply | AC85V ~ 260V / DC 12V 3A(optional) | ||
| Audio | 1 in/1 out (optional) | ||
| Alarm | 1 in/1 out (optional) | ||
| Housing material | 304/316L Stainless steel | ||
| Cable hole | G3 / 4 " inlet hole*1 | ||
| Wiper | Support | ||
| Installation | Multiple installation type based on the application environment | ||
| EX Cert. | Ex d IIC T6 Gb/Ex tD A21 IP68 T80℃ | ||
| IP protection | IP68 | ||
| Weight | ≤ 30kg | ||
