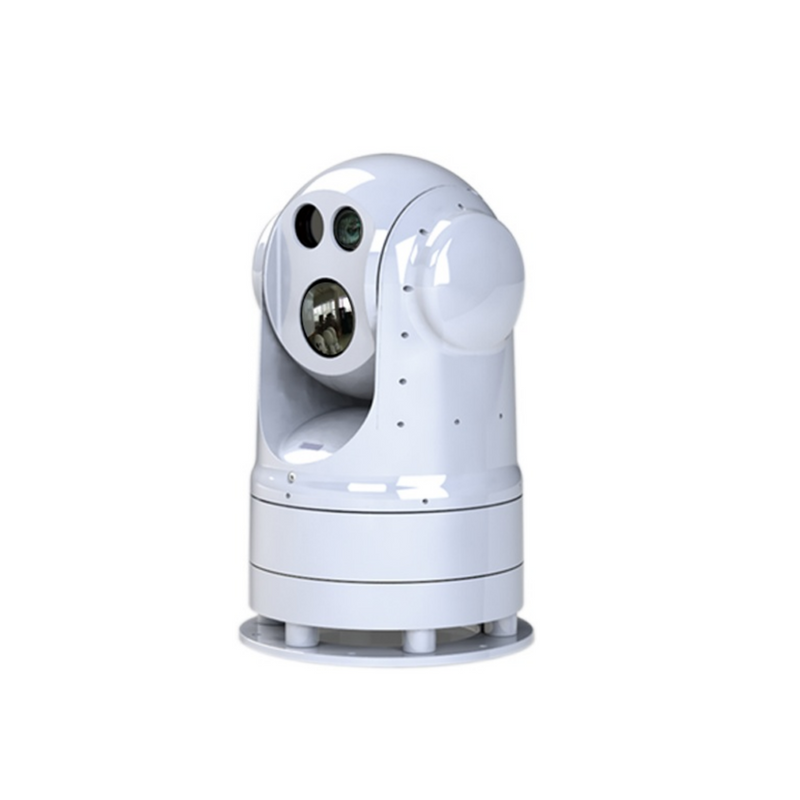

IPTZ-M600-Z245-HTB
| Quantity: | |
|---|---|
| PDF Export | |
Multi-spectral laser tracking, use A380 aluminum alloy that high resistance to sea water corrosion, with gyroscope stabilization, target tracking, infrared temperature measurement, Anti-fog, laser assisted lighting, laser ranging,
High precision and Respond fast. BEIDOU and GPS apply to guide and navigation. 3-5 miles of the target early scanning and warning to prevent approaching. Temperature measurement is effective about 5 km on electricity station, forest, oilfield, gas lane, and chemical industry to provide real-time temperature. 5G wireless high-definition monitor can recognize high-risk target with face identification and license plate. Integrate BEIDOU and GPS Location, electronic fence, patrol path set, 1 km laser night vision, remote Start-Up RS422 data two-way transmission, radar fire control system, vehicle shock absorption design.
It can be widely used in places requiring large-scale HD image quality monitoring, such as border, Coast Guard, offshore security, shipborne safety alter, Maritime Emergency Searching, etc.
Model | IPTZ-M600-Z245-HTB | |
Optical Module | Image device | 1 / 2.8’’ CMOS, 2 million in HD |
Resolution | 2MP | |
Starlight-level | 0.002Lux / F1.5 (color), 0.0002Lux / F1.5 (black and white) | |
D/N | ICR dual-filter switch | |
Focal length | 45X, 6.7~300mm anti-shake function lens, auto focus | |
Noise-signal ratio | ＞52dB | |
HD distance | 3-5 km | |
Laser | Power rate | 10~35W |
Wavelength | 805-980nm | |
Focus | Synchronous zoom between laser and lens | |
Laser distance | 3~6km | |
Thermal Module | Detector | Uncooled Focus plane array |
Resolution | 384*288/640*480 | |
Wavelength | 8-14μm | |
Heat sensitivity | ≤30mK@300K | |
Thermal imaging lens | 4.5X, 20-90mm zoom | |
Zoom mode | Electric focus, auto focus | |
Automatically focus | Near and far targets can be automatically focused | |
Color plate control | Black hot, white hot and other 11 color plate switch | |
Thermal imaging distance | 2~6km | |
PTZ | Tracking | Optional |
Speed | The maximum azimuthal rotation speed is not less than 45° / s, and the minimum speed is not higher than 0.1° / s; | |
Accuracy | Positioning accuracy: 0.1 degrees | |
Rotation range | Horizontal 360° continuous, vertical-45° - + 95° | |
Preset | 255 | |
Patrol function | Support 8 points | |
Control Protocol | RS485 / 422, PelcoD / P (optional, port rate 9600 / 4800 / 2400 | |
Image | Coded format | H.265/H.264 / ONVIF protocol |
Code check | 64Kbp~32Mbps | |
Product frame rate | PAL/NTSC | |
OSD | mark, date, time, and alarm | |
Image superposition | Brightness, contrast, and saturation | |
Audio rate | 32KBPS | |
Network interface | 110Base-T / 100Base-TX, RJ45 Interface | |
Audio interface | 1×Line in；1×Line Out | |
Alarm interface | 1 switch quantity; 1 switch quantity | |
Custom function | Not optional | |
additional function | Regional intrusion detection, cross-border detection, motion detection | |
Night vision mode | ICR infrared filter type automatic switch | |
General Spec. | Application | Outdoor (above the see horizontal level) |
Method to install | Plane base installation | |
Power supply | AC220V or 24V DC | |
Power Rate | Normal 140W, with a peak power consumption of 290W | |
working temp | -40℃~+70℃ | |
Working humidity | 35%~90% (Relative humidity) | |
Dust and waterproof | Protection grade IP67, anti-corrosion | |
Equipment heavy | 36Kg | |

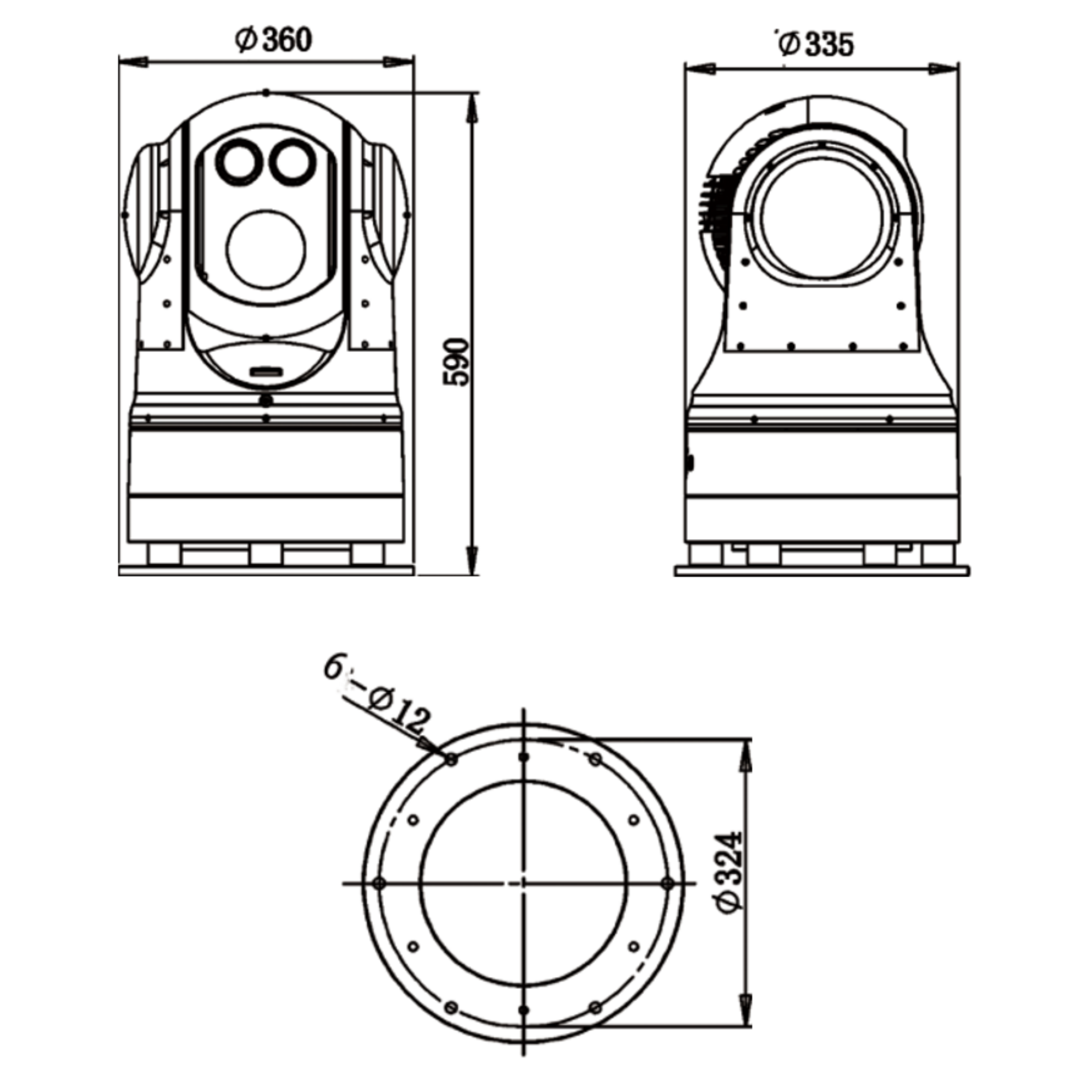

Size (mm) | 360(L)x360(W)x590(H)mm | |
Note: Details are subject to change without prior notice. Please refer to latest product datasheet.
