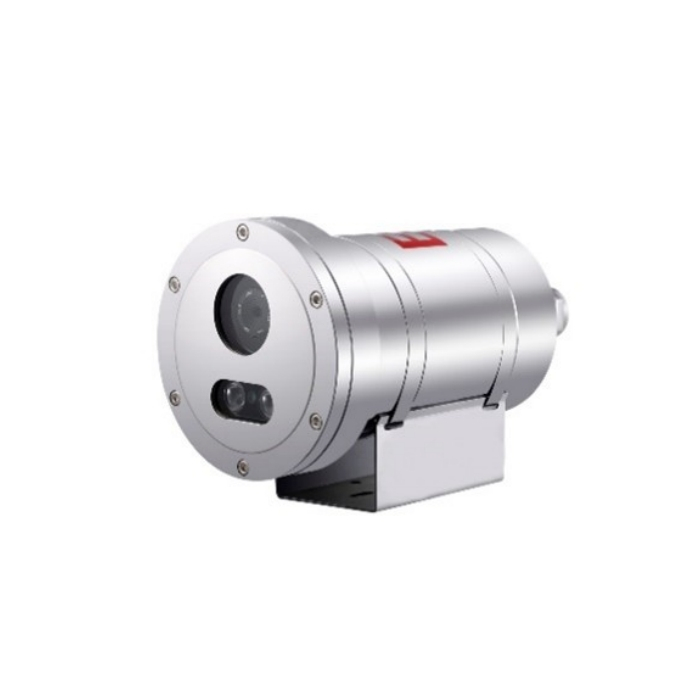

IPC-FB700-204-(4/6/8mm)SS
| Quantity: | |
|---|---|
| PDF Export | |
Explosion-proof cert: Ex d IIC T6 Gb / Ex tD A21 IP68 T80℃
H. 265, 2MP 1/3 " CMOS
Fixed lens: 4/6/8mm options
Starlight low illumination: color 0.005 Lux, 0 Lux with IR turn on
High-efficiency array IR lamp, low power consumption, IR 60 meters
Smart detection: area intrusion, line crossing, motion detection, video block, etc.
Supports BLC, HLC, 3D DNR, 120 dB WDR
Supports low code rate, low latency, ROI, and automatically adjust code rate according to the scene situation
Use special explosion-proof glass with nanotechnology, high optical pass rate, non-adhesive water, non-sticky oil and non-dust
304 /316Lstainless steel, suitable for chemical industry, acid and alkali and other strong corrosive environments
| Model | IPC-FB700-204-（4/6/8mm）SS | ||
| Lens | Resolution | 2MP | |
| Sensor | 1/3" Progressive Scan CMOS | ||
| Lens | 4mm (6/8mm options) | ||
| FOV | 102°~29° | ||
| Shutter | 1/3~1/100,000 s | ||
| Illuminance | Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR turn on | ||
| IR Distance | 60 meters | ||
| WDR | 120dB | ||
| Image | Main Stream | 50Hz: 25fps(1920x1080, 1280x720); 60Hz: 30fps(1920x1080, 1280x720) | |
| Second Stream | 50Hz: 25fps(720x576, 352x288); 60Hz; 30fps(720x480, 352x240) | ||
| Third Stream | 50Hz: 25fps(720x576, 352x288); 60Hz: 30fps(720x480, 352x240) | ||
| Compression | Main code flow: H.265/H.264; Subcode stream: H.265/H.264 / MJPEG; the third code stream: H.265/H.264 | ||
| Compression rate | 32 Kbps~8 Mbps | ||
| Audio compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC | ||
| Code rate type | Fixed rate, variable bitrate | ||
| SVC | Support | ||
| ROI | Support | ||
| Image enhancement | BLC, HLC, 3D DNR | ||
| Image Settings | Rotation, saturation, brightness, contrast, sharpness, AGC, white balance is adjustable via the client or browser | ||
| Alarm trigger | Mobile detection, blocking alarm, abnormal | ||
| Smart event | Area intrusion, line crossing, area entry, area leave, motion detection, video block, people gathering, audio abnormal, scene change | ||
| Networks | General functions | Mirror mode, heartbeat, password protection, watermark, IP address filter, pixel calculator | |
| Linkage mode | Upload FTP, upload center, mail, video, grab pictures | ||
| Network, protocol | TCP/IP，ICMP，HTTP，HTTPS，FTP，DHCP，DNS，DDNS，RTP，RTSP，NTP，UPnP，SMTP，IGMP，802.1X，QoS，IPv6，UDP，Bonjour，SSL/TLS，PPPoE，SNMP | ||
| Interface protocol | Open network video interface, API, SDK, Ehome (2.0/4.0), GB28181 (2011 / 2016) | ||
| Network storage | NAS (NFS, SMB / CIFS), Micro SD / Micro SDH C/Micro SDXC card (maximum 256 GB), local video storage and transmission, and SD card encryption with SD card status detection | ||
| Preview channel | Up to 6ch at same time | ||
| User management | Up to 32 users | ||
| Browser | IE10, IE11, Chrome 57.0+, Firefox 52.0+ | ||
| General Spec. | Audio | 1 in /1 out | |
| Alarm | 1 in /1 out | ||
| Communication | 1 RJ45 10 M / 100 M Adaptive Ethernet port | ||
| Temperature | -40℃~+60℃ | ||
| Power supply | AC85V ~ 260V / DC 12V 3A(optional) | ||
| Housing material | 304/316L Stainless steel (316L optional) | ||
| Cable hole | G3 / 4 " inlet hole*1 | ||
| Wiper | Support | ||

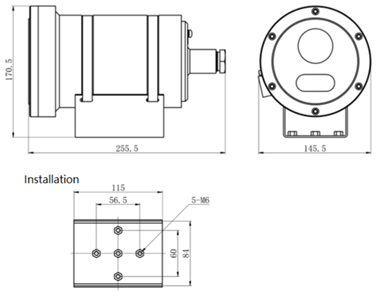

| Installation | Multiple installation type based on the application environment | ||
| EX Cert. | Ex d IIC T6 Gb/Ex tD A21 IP68 T80℃ | ||
| IP protection | IP68 | ||
| Weight | ≤ 6kg | ||
