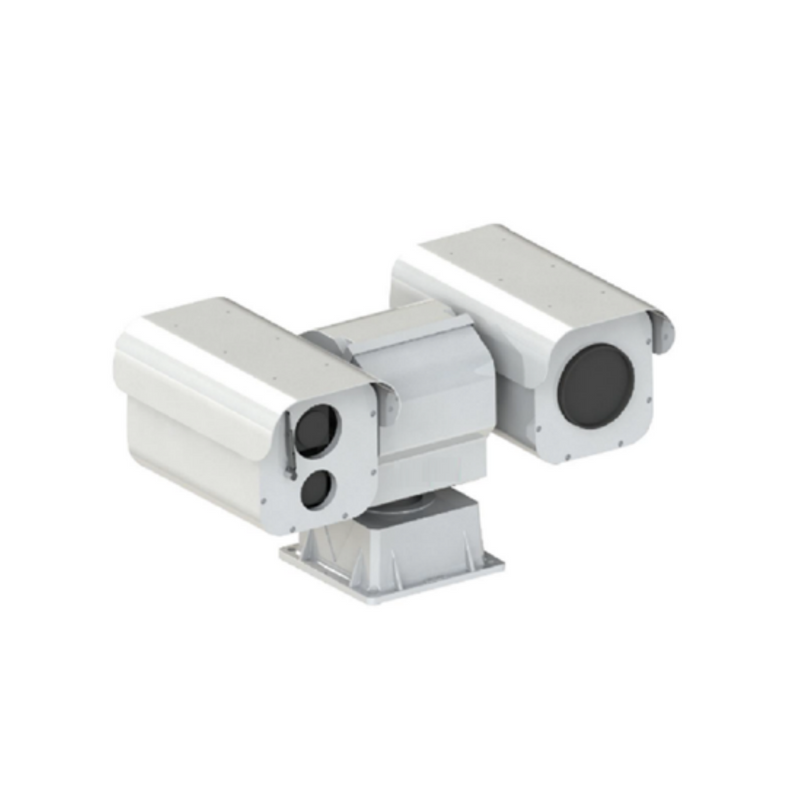

IPTZ-540-Z455L20T100FW
| Quantity: | |
|---|---|
| PDF Export | |
Support 4MP 55X super starlight surveillance with low illumination
Support thermal camera with high accuracy temperature measurement
Support laser range finder up to 2km
Support GPS accurate location
Horizontal 360 ° continuous rotation, with a vertical rotation angle of ± 90 °
Horizontal rotation speed of 30 °/s, vertical rotation speed of 15 °/s
The power supply is DC24V
Support AI smart features: Motion detection, Video detection, Deep-learning AI algorithm, etc.
Support power-off memory function, and automatically return to the monitoring scene before power-off after power on
Double pitch worm gear transmission structure, electronic anti-shake and mechanical anti-loose design
Supports power-off self-locking, strong wind resistance and high stability
Support watch function, preset point / scan / Cruise can be automatically called after staying in idle state for a specified time (including idle state after power on)
360 ° continuous rotation in horizontal direction and + 40 ° ~ - 75 ° rotation in vertical direction
Housing material with anti-corrosion materials, three prevention treatment, all-weather protection design and IP66 protection grade, which can be applied to salt fog video monitoring environment such as maritime, border and coastal defense
It can be widely used in places requiring large-scale HD image quality monitoring, such as border, coastal area, river, forest, road, railway, airport, port, sentry post, squares, stations, large venues, community, etc.
Model | IPTZ-540-Z455L20T100FW | |
Optical Module | Sensor | 1/1.8” CMOS sensor |
Resolution | 4MP, 2688× 1520 | |
Low illumination | Color:0.0005 Lux @(F1.4,AGC ON); | |
B/W:0.0001Lux @(F1.4,AGC ON) | ||
Focal length | 55X, 6-330mm optical zoom, 16X digital zoom | |
Optical Defog | Support | |
EIS | Support | |
Image enhancement | BLC, HLC, 3D DNR, DWDR | |
Image enhancement | Black light full-color, AI ISP image enhancement algorithm | |
Smart function | Motion detection, Video detection, Perimeter detection, Line detection, Items left and lost, Audio detection, deep-learning AI algorithm | |
Thermal Module | Resolution | 640*512 |
pixel size | 12μm | |
NETD | ≤40 | |
Lens | 100mm fixed lens | |
Smart function | Temperature measurement: range: -20 ℃~150 ℃, extended to 550 ℃ | |
Temperature measurement accuracy: ± 2 ℃ or ± 2% | ||
Object detection | Human/vehicle/drone | |
Range finder | Range finder | 2000 meter |
GPS | GPS location | Support |
Internet | Compression | H.265 / H.264 |
Compression rate | 32 Kbps~32Mbps | |
Compression standard | G.711A/G.711U/G.726/AAC | |
Storage | Micro SD/SDHC /SDXC(256G),NAS(NFS,SMB/CIFS) | |
Protocol | TCP/IP,MTU,HTTP,HTTPS,FTP,DHCP,DDNS,UPNP,RTSP,RTMP,NTP,SMTP,PPPOE | |
PTZ | Rotation Angle | Pan: 360° continuous rotation; Tilt: -40° ~ +75° ; |
Rotation Speed | Pan : 0.01～60°/S ;Tilt : 0.01～30°/S ; | |
Preset Accuracy | ±0.1° | |
Preset Position | 200 | |
Scan Mode | Cruise scan/auto scan | |
Angle Return | Support angle return by query command or real time angle return | |
General | Input Voltage | DC24V ±10% |
Power Consumption | 100W | |
Operating Temperature | -35℃ ~ +65℃ | |
Humidity | <90%RH | |
Waterproof | IP66 | |
EMC | Power：4000V; signal: 2000V (line to ground 2000V, line to line 1000V) | |
Salt fog resistance | PH 6.5～7.2 ，continuous spraying 48 hours | |
Weight | 18kg | |
Note: Details are subject to change without prior notice. Please refer to latest product datasheet.
