Using vanadium oxide uncooled infrared detector, it has high sensitivity and good image quality.
Using vanadium oxide uncooled infrared detector, it has high sensitivity and good image quality.
The highest resolution can reach 384*288, real-time image output
NETD sensitivity≤35 mK @F1.0, 300K
9mm athermalized lens
Supports network access and has rich image adjustment functions
Support RS232, 485 serial communication
Support 1 audio input and 1 audio output
Built-in 1 alarm input and 1 alarm output, supporting alarm linkage function
Supports Micro SD/SDHC/SDXC card storage up to 256G
Rich interfaces for easy function expansion
| Model | TM31009W | TM31009W-D | ||
| Detector | ||||
| Detector type | Vox Uncooled Thermal Detector | |||
| Effective Pixels | 384x288 | |||
| Pixel size | 12μm | |||
| Spectral range | 8-14μm | |||
| Sensitivity (NETD) | ≤35 mK @F1.0, 300K | |||
| Lens | ||||
| Lens | 9mm Athermalized Lens | Lens | ||
| F Value | F1.0 | Lens | ||
| FOV | 28.7°X21.7° | Lens | ||
| Focusing range | 0.5M—∞ | |||
| Sealing | IP67(front of lens) | |||
| Network | ||||
| Network protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6 | N/A | ||
| Compression standards | H.265 / H.264 | N/A | ||
| Interface Protocol | ONVIF(PROFILE S,PROFILE G) , SDK | N/A | ||
| Intelligent detection | Electronic fence, cross-border detection, area intrusion, leaving area | N/A | ||
| Image | ||||
| Resolution | 25fps(384*288) | |||
| Image settings | Brightness, contrast, and gamma are adjustable through the client or browser | |||
| Digital Zoom | 1x,2x,4x Step 0.1 | |||
| Pseudo Color | 10 modes available | |||
| Image enhancement | Support | |||
| Image filtering | Support | |||
| Bad pixel correction | Support | |||
| Image noise reduction | Support | |||
| Mirror | Support | |||
| Interface | ||||
| Network Interface | 100M network port | N/A | ||
| Analog Output | CVBS | |||
| Digital Output | N/A | BT656 | ||
| Communication serial port | 1 channel RS232, 1 channel RS485 | |||
| Functional interface | 1 alarm input/output, 1 audio input/output, 1 USB port | |||
| Storage function | Support Micro SD/SDHC/SDXC card (256G) offline local storage, NAS (NFS, SMB/CIFS are supported) | |||
| Environment | ||||
| Operating temperature and humidity | -30℃~60℃, humidity less than 90% | |||
| Power supply | DC12V±10% | |||
| Power consumption | 4W MAX | |||

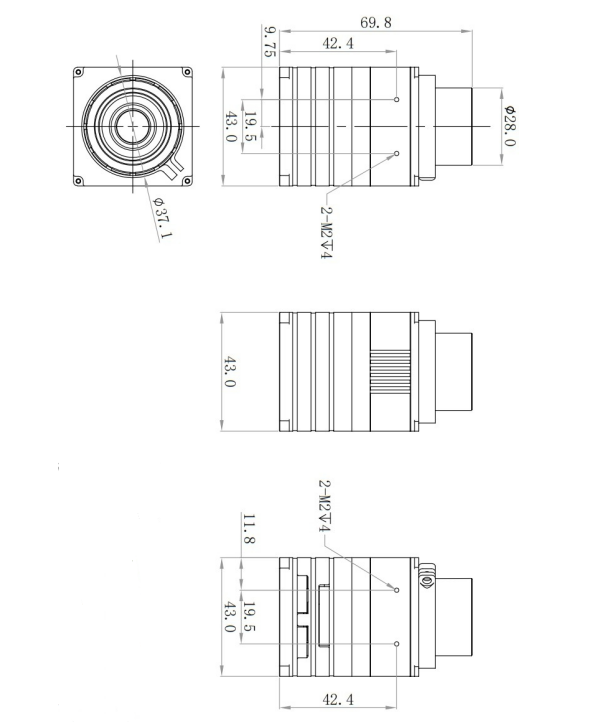

| Size | Ф28*69.8 | Ф28*67.8 | ||
| Weight | 154g | 152g | ||
