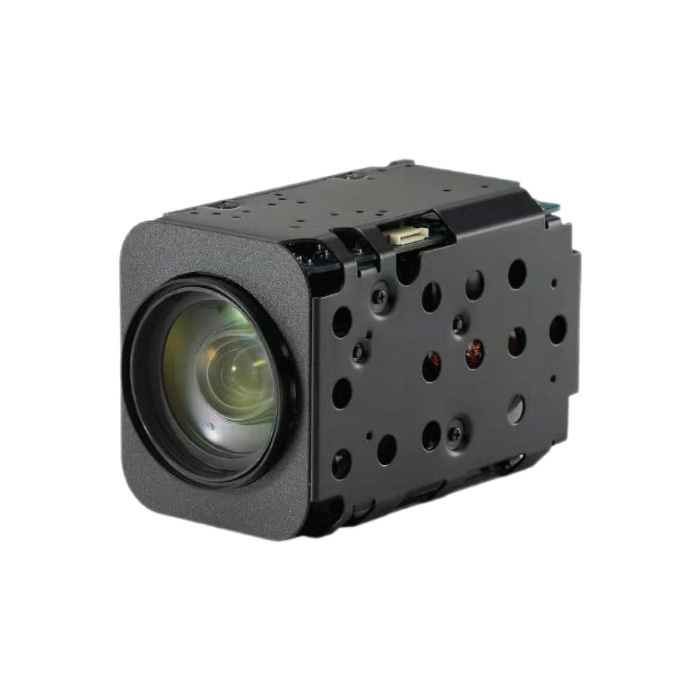

DZM-2330-D
| Quantity: | |
|---|---|
| PDF Export | |
H.265/H.264，H.265+/H.264+, 2MP, 1920×1080P, P/N: 25fps /30fps
30X Optical, 4.3mm-129mm, optical zoom, 32X digital zoom
Super starlight, 120dB WDR
Support low Illumination, 2D&3D DNR, 3D position
Support E-defog
Support distortion correction
Support shadow correction
Quick Start
Ultra low latency of 30ms (60 frame mode)
30Pin LVDS interface，Pin to Pin Sony 7520 interface
Support VISCA, PeIco-D/P protocol
The same lens as the Sony 7520 module
Equivalent in size to the Sony 7520 module
Support Smart Functions: Motion detection, Video detection, Perimeter detection, Line detection, Items left and lost, Audio detection
Easy connect to zooming camera, PTZ and platform
Multiple protocol/ interface, Open SDK, Function extension
Support OEM/ODM and Customization service
Model | DZM-2330-D |
Camera | |
Sensor | 1/2.8" Panasonic CMOS |
Effective pixels | 2.35MP |
Low illumination | Color:0.001Lux; B/W:0.0005Lux |
S/N ratio | ＞50dB |
D/N mode | Auto ICR, auto, color, B/W |
Lens | |
Zoom times | f =4.3-129mm，30X optical，32X digital |
Aperture | Max Aperture: F1.6~F4.7 |
Shutter | 1/25-1/30,000s；support slow shutter |
FOV | 65.1°-2.34°（wide-tele.） |
Interface | |
Video Output | LVDS, EX-SDI,CVBS |
General Spec. | |
Working Temp. | -30℃~60℃, humidity<90%(Non-Condensing) |
Power supply | DC 9V-15V, 500MA |

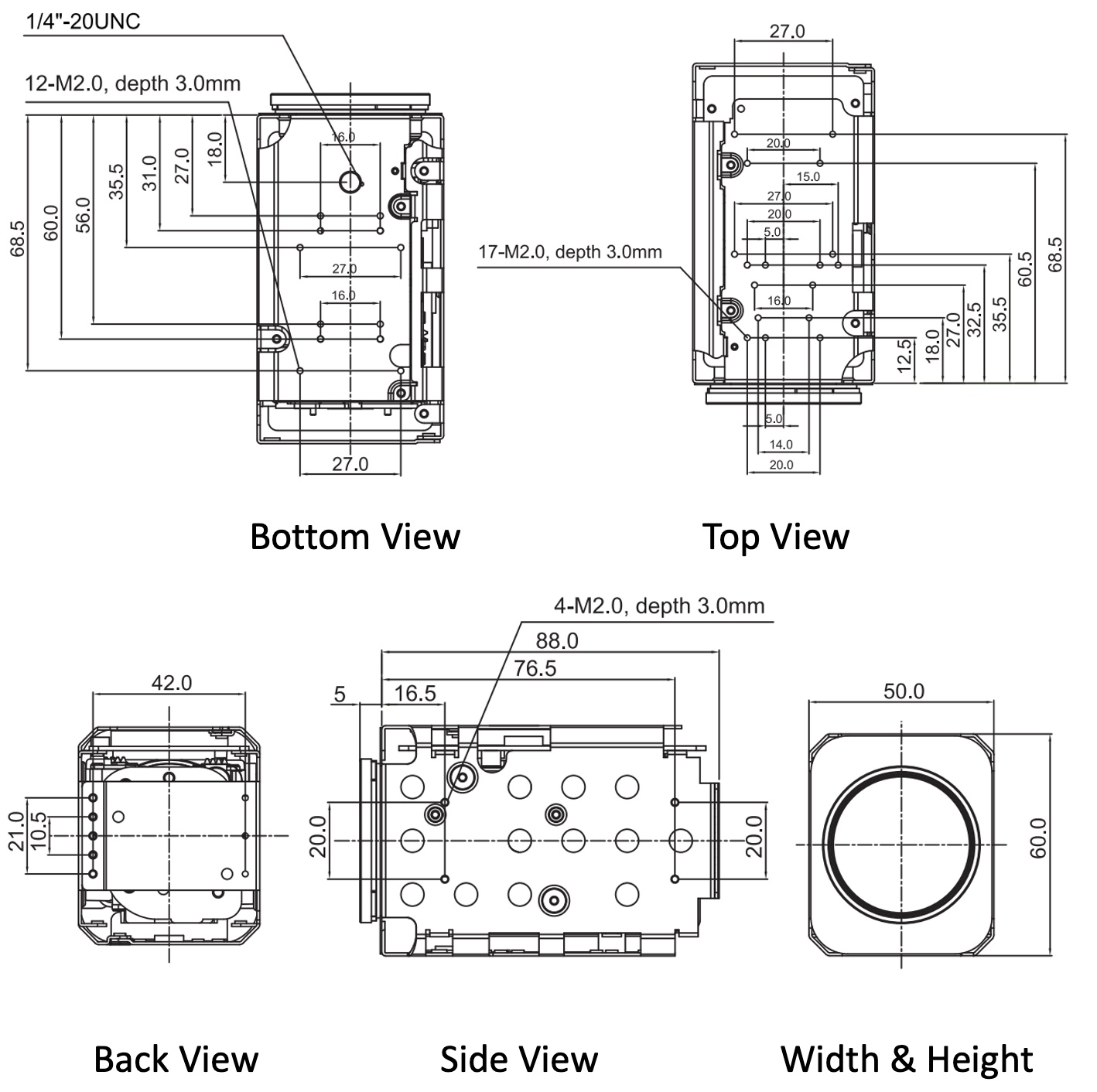

Size | 88*50*60mm |
Weight | 240g |
Note: Details are subject to change without prior notice. Please refer to latest product datasheet.
