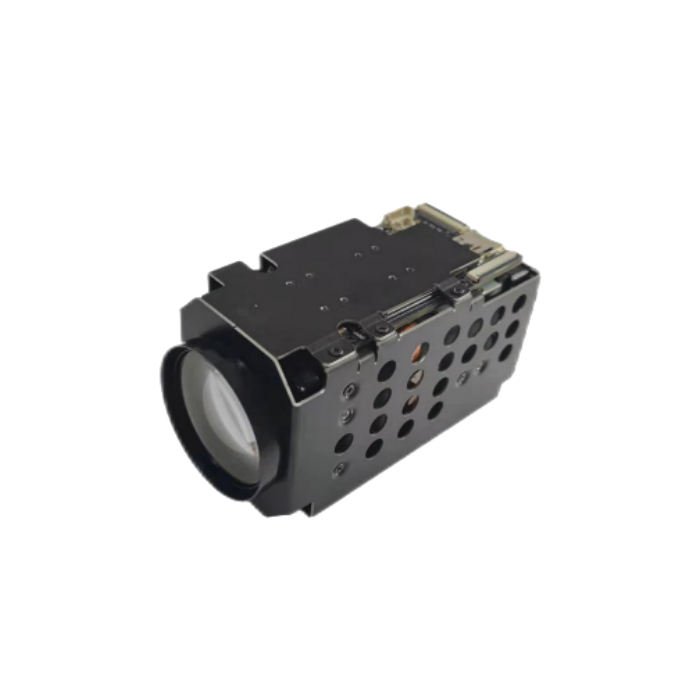

IPZM-2240- QWTG/QDTG/QMTG/QHTG/QSTG/QCTG
| Quantity: | |
|---|---|
| PDF Export | |
H.265/H.264，H.265+/H.264+, 2MP, 1920×1080P, P/ N: 50fps 60fps
40X Optical, 6.4-256mm optical zoom, 16X digital zoom
Super starlight, 120dB WDR
Support low Illumination, 3D DNR, 3D positioning
Support SD card (256G)
Support three streams
Support Intelligent Black Light, E-defog, Heat-removal, Optical Defog
Support distortion correction
Support 500 presets, 8 cruise scan
Support audio 1/1, alarm 1/1
Support VISCA, PeIco-D/P protocol
Support Smart Functions: Motion detection, Video detection, Perimeter detection, Line detection, Items left and lost, Audio detection
Support corridor mode
Easy connect to zooming camera, PTZ and platform
Multiple protocol/interface, Open SDK, Function extension
Support OEM/ODM and Customization service
Model | IPZM-2348-WT/DT/MT/HT/ST/CT |
Camera | |
Sensor | 1/2 Global shutter sensor |
Effective pixels | 2MP |
Low illumination | Color:0.001Lux; B/W:0.0005Lux |
S/N ratio | ＞55dB |
D/N mode | Auto ICR, auto, color, B/W |
Lens | |
Zoom times | f =6.4-256mm ，40X optical，16X digital |
Aperture | Max Aperture: F1.5~F4.8 |
Shutter | 1/25-1/10,000s；support slow shutter |
FOV | 55.6°-1.7°（wide-tele.） |
Interface | |
Video Output | LVDS/MIPI/HDMI/SDI/CVBS |
General Spec. | |
Working Temp. | -30℃~60℃, Humidity<95%(Non-Condensing) |
Power supply | DC12V±10%, 2A |

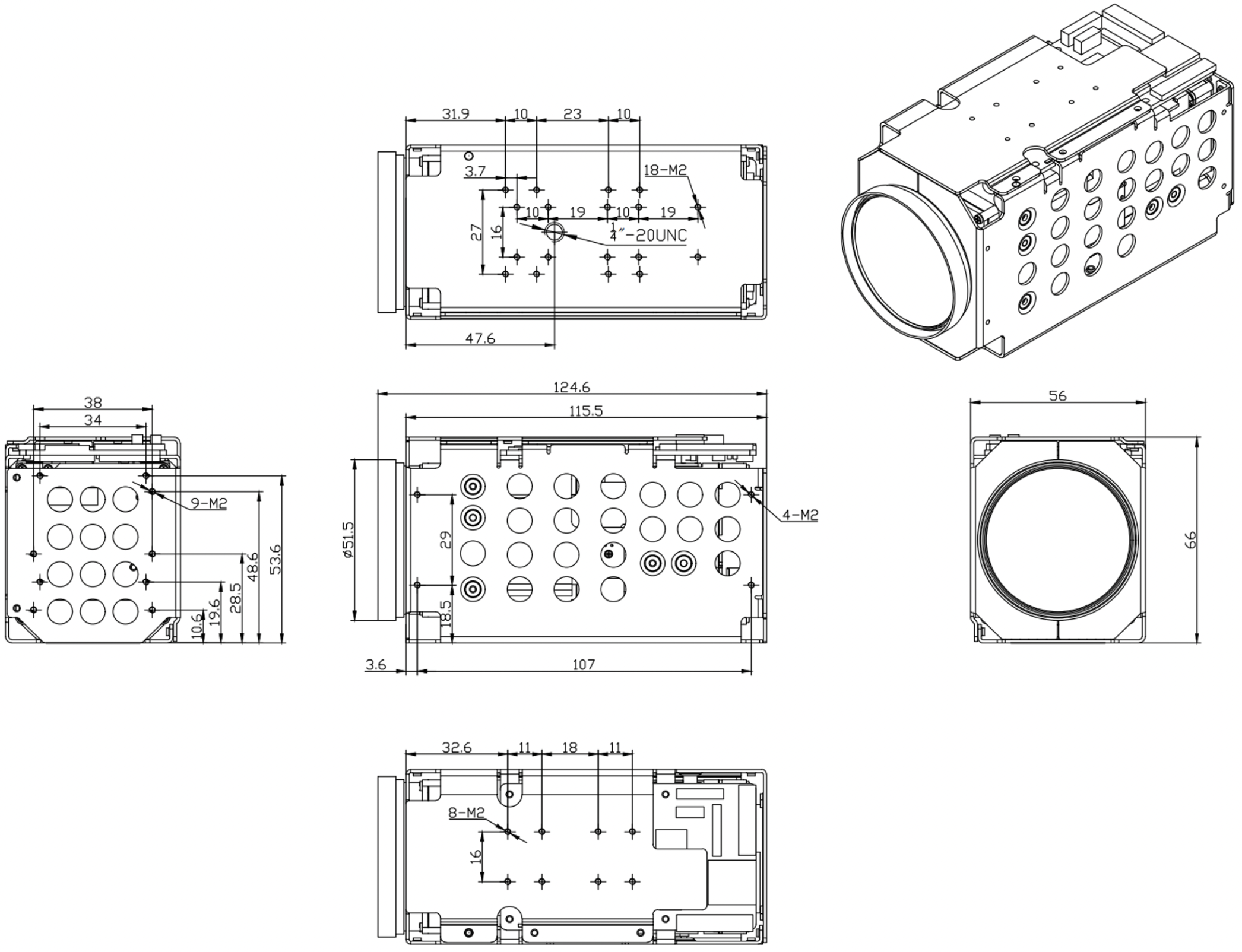

Size | 124.6*56*66mm |
Weight | 419g（with shell）；217.5g（without shell） |
Note: Details are subject to change without prior notice. Please refer to latest product datasheet.
