Using vanadium oxide uncooled infrared detector, it has high sensitivity and good image quality.
The highest resolution can reach 640*512, real-time image output
Optional lenses of 10mm, 15mm, 19mm, 25mm
Temperature Measurement: Range:-20℃-150℃
Supports network access and has rich image adjustment functions
Support RS232, 485 serial communication
Support 1 audio input and 1 audio output
Built-in 1 alarm input and 1 alarm output, supporting alarm linkage function
Supports Micro SD/SDHC/SDXC card storage up to 256G
Rich interfaces for easy function expansion
| Model | U612mini | |
| Sensor | ||
| Type | Vanadium Oxide uncooled focal plane detector | |
| Image Resolution | 640*512 | |
| Pixel Size | 12μm | |
| NETD | ≦40mK@25℃ | |
| Spectral Response | 8~14μm | |
| Package Type | Ceramic package | |
| Lens type | ||
| Lens | Lens | |
| Lens | Lens | |
| Image processing | ||
| Frame Rate | 50Hz | |
| Startup Time | 10s | |
| Image Processing | NUC, Smart Gain Control, Detail Enhancement, 3DNR | |
| Palette | 10 palettes (e.g., Black Hot, White Hot, Iron Red, Rainbow) / Customizable | |
| Image Flip | Horizontal, Vertical, Center | |
| System features | ||
| Fire point detection | Fire point detection | |
| Fire point detection | Fire point detection | |
| Fire point detection | Fire point detection | |
| Data Interface | ||
| Video Output | UVC output | |
| Communication Interface | UART | |
| Power Supply | ||
| Voltage Range | DC 5V | |
| Typical Power Consumption | 1W | |
| Physical properties | ||

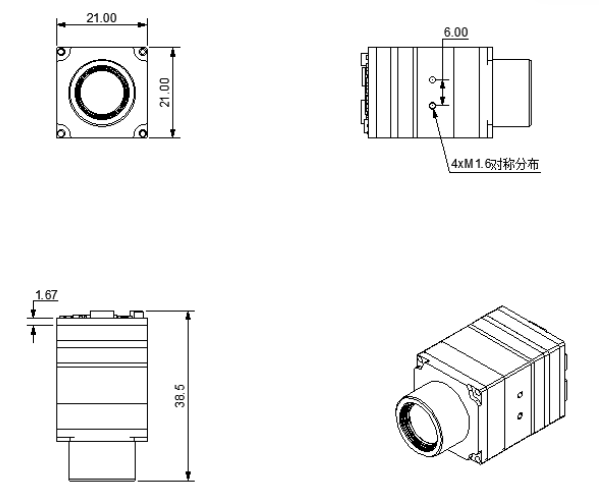

| Dimensions (excl. lens) | 21mm*21mm*26.8mm | |
| Weight (excl. accessories) | 16.0g | |
| Environmental Adaptability | ||
| Operating Temperature/℃ | -30℃～+60℃ | |
| Storage Temperature/℃ | -45℃～+75℃ | |
| Humidity/RH | ≤95% | |
