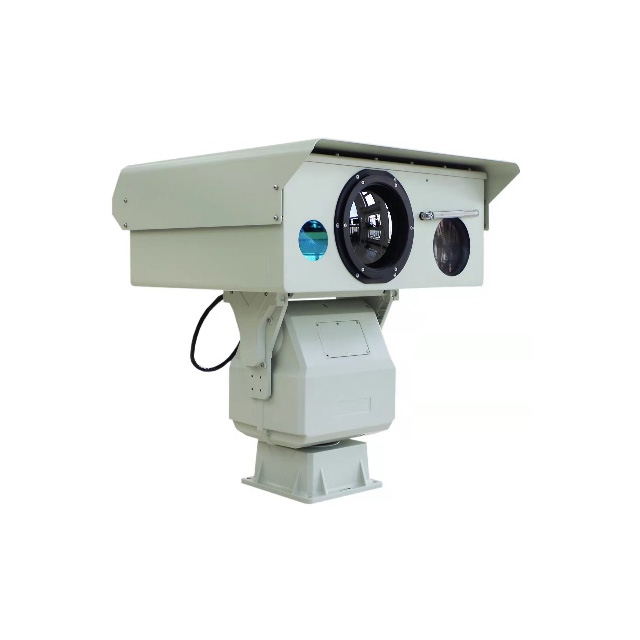

2MP 90X Laser & Thermal Multi-Spectrum Network PTZ Camera

 Multi-Spectrum Imaging with 90X Visible-Light Zoom

The camera combines a 2MP visible-light sensor, 384×288 thermal imaging, and laser illumination in one PTZ platform. Its 10.5–945mm visible-light lens provides 90X optical zoom and 16X digital zoom, supporting adjustable observation of selected areas at different distances.

30–150mm Continuous Thermal Zoom

Unlike PTZ cameras equipped with a fixed-focal-length thermal lens, this model features a 30–150mm continuously variable thermal lens with manual and automatic zoom options. The thermal channel provides adjustable infrared observation without relying on visible-light illumination.

4km Laser Illumination with FOV Synchronization

The built-in 808nm, 20W laser system has a specified illumination distance of 4km. Its field-of-view synchronization function adjusts laser illumination in relation to the visible-light lens, supporting nighttime observation at different zoom settings.

Precision PTZ Positioning for Outdoor Surveillance

The camera uses a double-pitch worm gear transmission structure with power-off self-locking and zoom-adaptive rotation control. It supports 360° horizontal rotation, 200 preset positions, and ±0.1° preset accuracy. Its anti-corrosion housing treatment and IP66 protection support installation in demanding outdoor environments.

Double pitch worm gear transmission structure, electronic anti-shake and mechanical anti-loose design

 Supports power-off self-locking, strong wind resistance and high stability

 Support multiple lens preset functions, zoom adaptive, and the rotation speed can be automatically adjusted according to the zoom of the lens

 Support smart features: area intrusion, line crossing, area leave, motion detection, video block

 Support AWB, DWDR, HLC, BLC, EIS, and 3D DNR, etc.

 The built-in FOV synchronous zoom laser lighting system, with long distance and wide range, and can realize 0Lux night vision monitoring

 The laser module adopts multi-core fusion mode mixing and uniform light technology, which has no speckle dark ring and high edge definition

 Support cruise scanning, linear scanning and other scanning methods

 Support power-off memory function, and automatically return to the monitoring scene before power-off after power on

 Support watch function, preset point / scan / Cruise can be automatically called after staying in idle state for a specified time (including idle state after power on)

 360 ° continuous rotation in horizontal direction and + 90 ° ~ - 90 ° rotation in vertical direction

 Housing material with anti-corrosion materials, three prevention treatment, all-weather protection design and IP66 protection grade, which can be applied to salt fog video monitoring environment such as maritime, border and coastal defense
