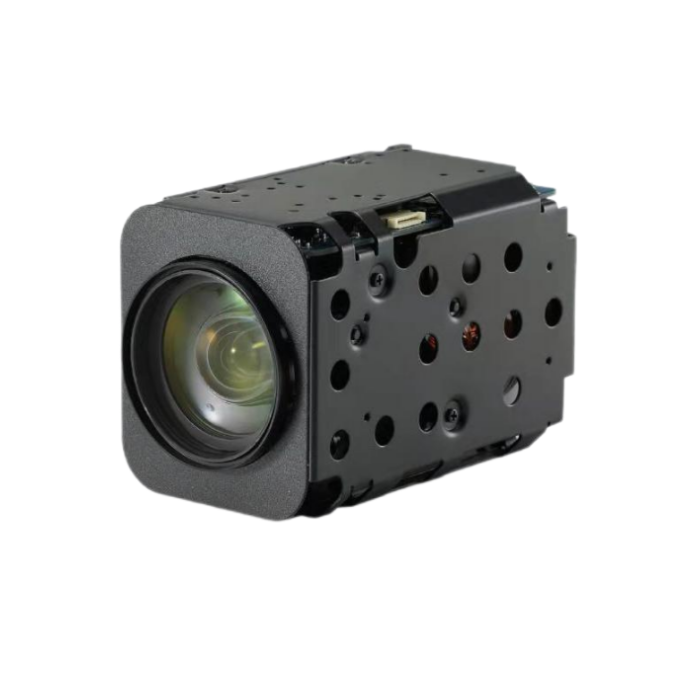

DZM-2330-DX
| Quantity: | |
|---|---|
| PDF Export | |
H.265/H.264，H.265+/H.264+, 2MP, 1920×1080P, P/N: 25fps /30fps
30X Optical, 4.3mm-129mm, optical zoom, 32X digital zoom
Super starlight, 120dB WDR
Support low Illumination, 2D&3D DNR, 3D position
Support E-defog
Support distortion correction
Support shadow correction
Quick Start 5S
Ultra low latency of 30ms (60 frame mode)
30Pin LVDS interface，Pin to Pin Sony 7520 interface
Support VISCA, PeIco-D/P protocol
The same lens as the Sony 7520 module
Equivalent in size to the Sony 7520 module
Support Smart Functions: Motion detection, Video detection, Perimeter detection, Line detection, Items left and lost, Audio detection
Easy connect to zooming camera, PTZ and platform
Multiple protocol/ interface, Open SDK, Function extension
Support OEM/ODM and Customization service
● Multiple holes for easy installation
● Reserved camera installation holes for easy use
| Model | DZM-2330-DX |
| Camera | |
| Sensor | 1/2.8" Panasonic CMOS |
| Resolution | 2.35MP |
| Low illumination | Color:0.001Lux; B/W:0.0005Lux |
| S/N ratio | ＞50dB |
| D/N mode | Auto ICR, auto, color, B/W |
| Lens | |
| Zoom times | f =4.6-136mm，30X optical，32X digital |
| Aperture | Max Aperture: F1.6~F4.8 |
| Shutter | 1/25-1/30,000s；support slow shutter |
| FOV | 62.4°-2.3°（wide-tele.） |
| Encoding | |
| Main stream | 50Hz: 25fps (1920 × 1080, 1280 × 720)； 60Hz: 30fps (1920 × 1080, 1280 × 720) |
| HLC | Support |
| Focus | Auto focus/manual focus/semi-automatic focus |
| Privacy masking | Support 24 areas |
| E-defog | Support |
| Motion detection | Support 3 areas |
| 3D&2D DNR | Support |
| Baud Rate | 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 |
| Access protocol | VISCA / Pelco-D / Pelco-P |
| NTSC / PAL Format | Support |
| Interface | |
| Video Output | LVDS, EX-SDI,CVBS |
| General Spec. | |
| Working Temp. | -30℃~60℃, humidity<90%(Non-Condensing) |
| Power supply | DC 9V-15V, 500MA |
| Size | 88*50*60mm |
| Weight | 278g |
Note: Details are subject to change without prior notice. Please refer to latest product datasheet.
